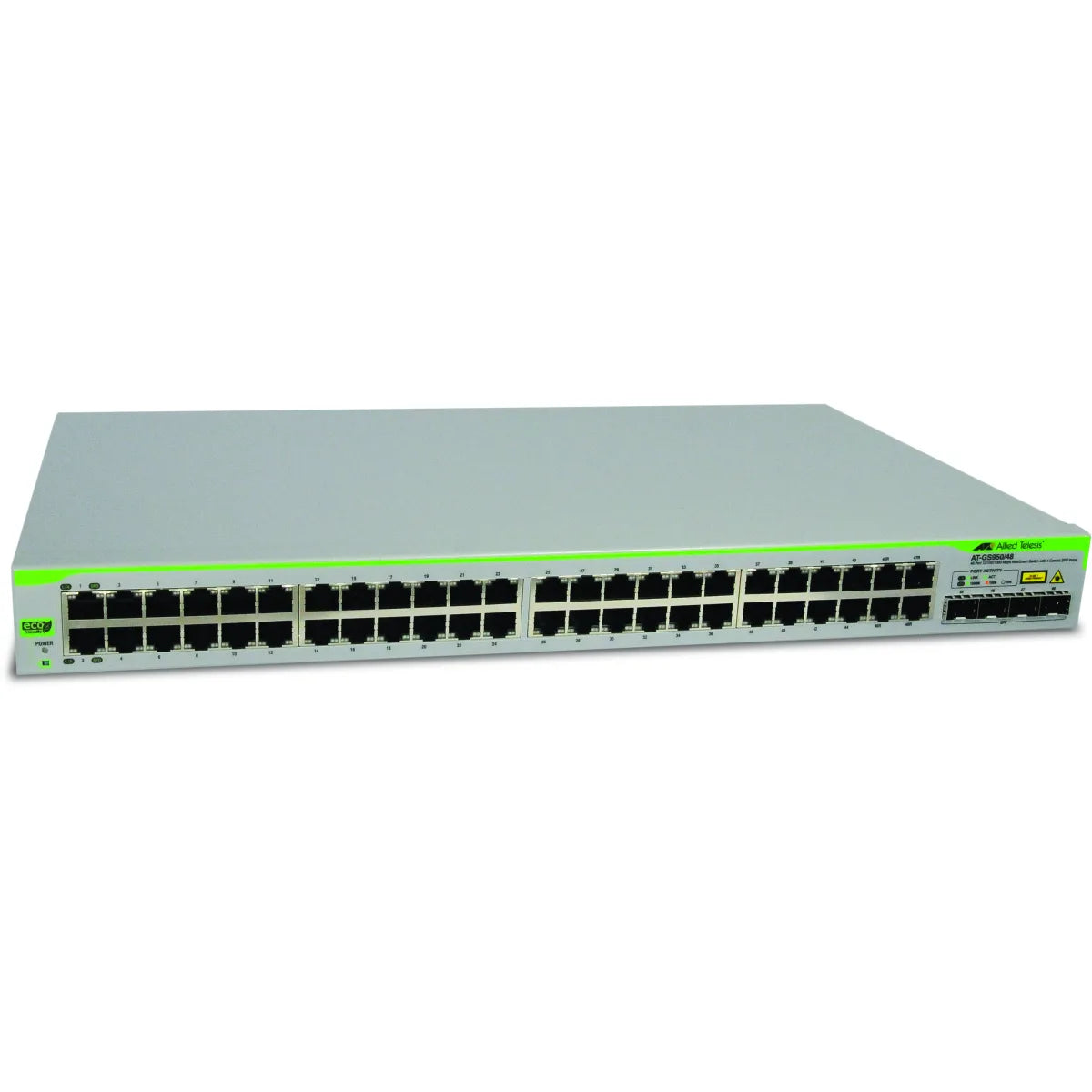

Allied Telesis AT-GS950/48 - Switch 48 ports RJ45 x 10/100/1000T [ID 11827]
Allied Telesis AT-GS950/48 - Switch 48 ports RJ45 x 10/100/1000T [ID 11827]
SKU:AT-GS950/48-50
Description
AT-GS950/48 - Switch Allied Telesys, 48 ports RJ45 x 10/100/1000T, 4 ports Combo SFP Web Smart Switch; switch performance 1 488 000 pps for 1000 Mbps, Web-Based management, SNMP v1, v2, ; mountable in a 19" rack, compatible with the standards: IEEE 802.3u, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1x, IEEE 802.1Q, IEEE 802.3ad; 8000 MAC addresses; MTBF 263,000 hours, built-in power supply, power supply 100-240 V AC, 50/60Hz, 24 month warranty
Available
| Quantity | Delivery |
| 11 | 2 days |
Couldn't load pickup availability
Description
Specifications
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| MIB support | RFC 1213, RFC 1643, RFC 1493 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Console port | RJ-45 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | N |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-TX |
| Port mirroring | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| Head-of-line (HOL) blocking | Y |
| VLAN support | Y |
| Data transmission | |
| MAC address table | 8000 |
| Throughput | 14.88 |
| Jumbo frames support | Y |
| Packet buffer memory | 6 |
| Security | |
| DHCP features | DHCP client |
| IGMP snooping | Y |
| Multicast features | |
| Multicast support | Y |
| Protocols | |
| Management protocols | IGMP, SNMP, FTP |
| Design | |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Y |
| Certification | UL 1950, FCC/EN55022, VCCI, C-Tick, EN60950, EN55024, CE, CSA, CUL |
| Performance | |
| Internal memory | 32 |
| Flash memory | 4 |
| Mean time between failures (MTBF) | 263000 |
| Power | |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -25 - 70 |
| Operating relative humidity (H-H) | 5 - 90 |
| Storage relative humidity (H-H) | 5 - 95 |
| Weight & dimensions | |
| Width | 444 |
| Depth | 322 |
| Height | 43.5 |
| Weight | 4050 |
