APC

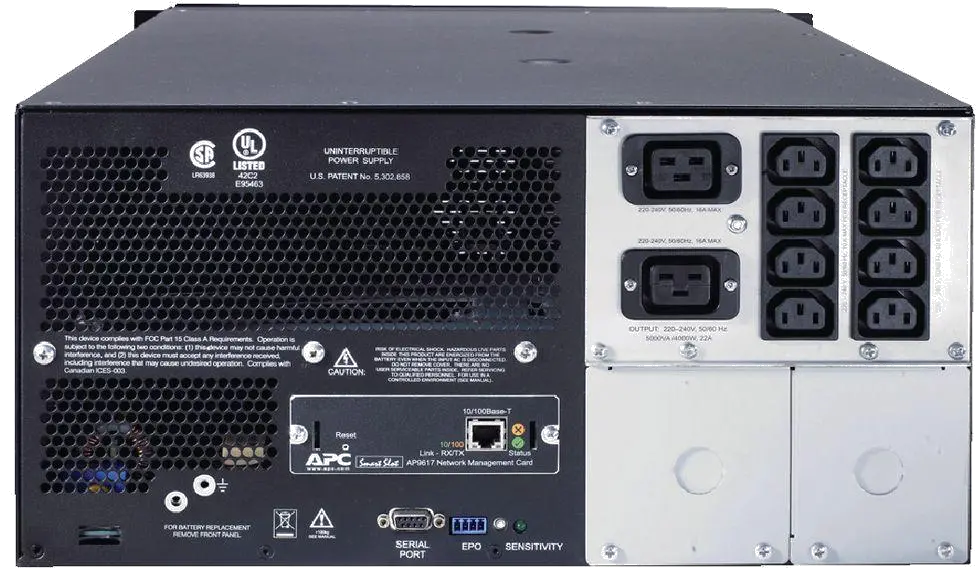

APC Smart-UPS Line Interactive 5000VA/4000W, 230V, Rackmount 5U [ID 82121]
APC Smart-UPS Line Interactive 5000VA/4000W, 230V, Rackmount 5U [ID 82121]
SKU:SUA5000RMI5U
Description
Smart-UPS Line Interactive 5000VA/4000W, 230V, Rackmount 5U, Input Hard Wire 3-wire, Output 8 x IEC 320 C13, 4 x IEC Jumpers, 2 x IEC 320 C19, Interface DB-9 RS-232, SmartSlot
Available
| Quantity | Delivery |
| 2 | 2 days |
| 1 | 3 days |
Couldn't load pickup availability
Description
Specifications
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 5 |
| Output power | 4000 |
| Waveform | Sine |
| Input operation voltage (min) | 151 |
| Input operation voltage (max) | 302 |
| Input frequency | 50/60 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Output frequency regulation | 47 - 53 |
| Automatic Voltage Regulation (AVR) | Y |
| Surge energy rating | 480 |
| Hold time (max) | 4 |
| Hold time (min) | 2 |
| Number of output phases | 1 |
| Efficiency | 96 |
| Noise level | 53 |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Auto-restart | Y |
| Ports & interfaces | |
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 10 |
| Number of output IEC jumpers | 4 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 1632 |
| Typical backup time at full load | 9.4 |
| Typical backup time at half load | 26.7 |
| Battery life (max) | 5 |
| Battery recharge time | 3 |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 5U |
| LED indicators | Battery replacement |
| Certification | C-tick, CE, EN 50091-1, EN 50091-2, GOST, GS Mark, VDE, REACH, PEP, EOLI |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 45 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 9000 |
| Non-operating altitude | 0 - 15000 |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 483 |
| Depth | 660 |
| Height | 222 |
| Weight | 97730 |
| Package width | 610 |
| Package depth | 762 |
| Package height | 635 |
| Package weight | 106820 |
| Packaging data | |
| Rack mount kit | Y |
| Cables included | RS-232 |
| Manual | Y |
| Quick installation guide | Y |
| Software CD | Y |
| Other features | |
| Nominal output voltage | 230 |
| Nominal input voltage | 230 |
