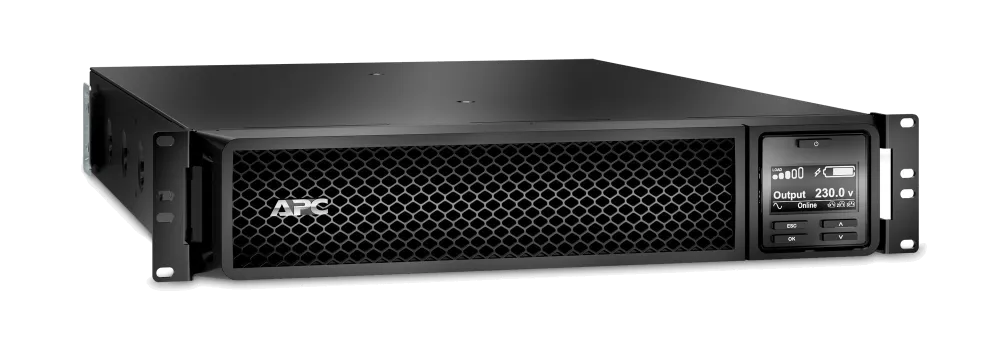

APC Smart-UPS SRT 2200VA/1980W RM 230V
MPN:SRT2200RMXLI
| Qty | Delivery |
|---|---|
| 1 | 2 days |
Description
Specifications
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2.2 |
| Output power | 1980 |
| Waveform | Sine |
| Input operation voltage (min) | 100 |
| Input operation voltage (max) | 275 |
| Input frequency | 40/70 |
| Output operation voltage (min) | 220 |
View all specifications (+60)
| Output operation voltage (max) | 240 |
| Output frequency regulation | 50/60 |
| Surge energy rating | 340 |
| Efficiency | 92.2 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Y |
| Noise level | 55 |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Web-based management | Y |
| Auto-restart | Y |
| Ports & interfaces | |
| AC outlet types | C13 coupler,C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 10 |
| Number of output IEC jumpers | 2 |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RJ-45 |
| SmartSlot | Y |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 367 |
| Number of batteries supported | 1 |
| Typical backup time at full load | 3.9 |
| Typical backup time at half load | 11.6 |
| Battery life (max) | 5 |
| Battery recharge time | 3 |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Cold start | Y |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| Cable length | 2.44 |
| Display type | LCD |
| LED indicators | Y |
| International Protection (IP) code | IP20 |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 50 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Technical details | |
| Total carbon footprint (kg of CO2e) | 3656.4 |
| Sustainability certificates | ENERGY STAR,Green Premium |
| Weight & dimensions | |
| Width | 432 |
| Depth | 584 |
| Height | 85 |
| Weight | 25000 |
| Package width | 599 |
| Package depth | 810 |
| Package height | 246 |
| Package weight | 34020 |
| Packaging data | |
| Rack mount kit | Y |
| Bracket | Y |
| Cables included | USB cable |
| Quick installation guide | Y |
| Software CD | Y |
| Other features | |
| Nominal output voltage | 230 |
| Nominal input voltage | 230 |
