Asus Motherboard LGA1851 Z890 DDR5 ATX Wi-Fi
MPN:TUF GAMING Z890-PLUS WIFI
Description
Full description
Full description
Specifications
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 8600 |
View all specifications (+77)
| Maximum internal memory | 192 |
| Unbuffered memory | Y |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | N |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of chassis fan connectors | 4 |
| Chassis intrusion connector | Y |
| EPS power connector (8-pin) | Y |
| 12V power connector | Y |
| Thunderbolt headers | 1 |
| Number of COM connectors | 1 |
| RGB LED pin header | Y |

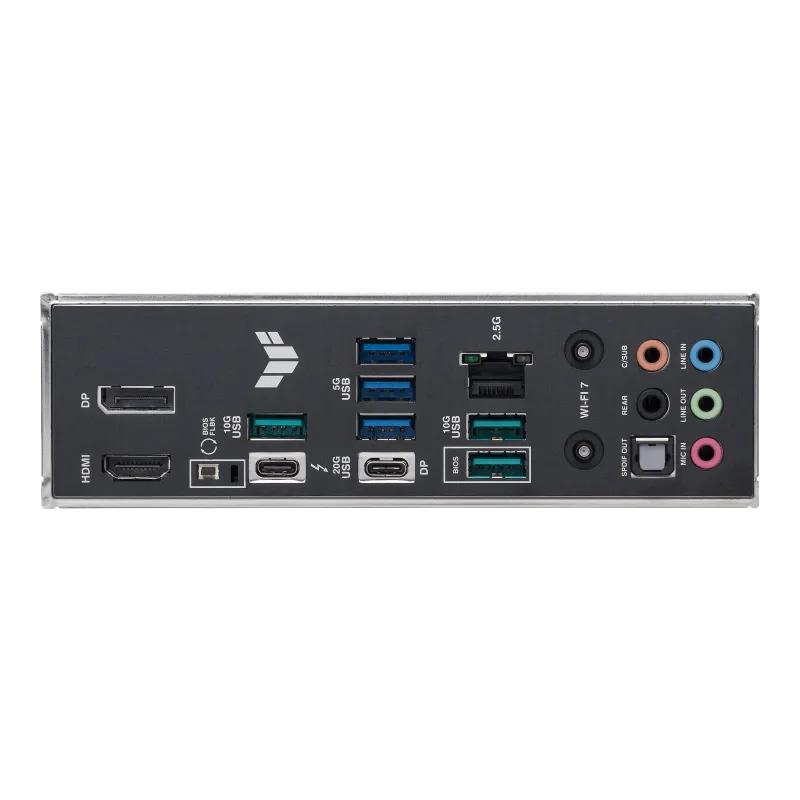

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Y |
| S/PDIF out port | Y |
| Thunderbolt ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be) |
| Bluetooth | Y |
| Bluetooth version | 5.4 |
| Features | |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC1220P |
| Audio output channels | 7.1 |
| Product colour | Black |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
| PCI Express x4 (Gen 1.x) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| Packaging data | |
| Package width | 353 |
| Package depth | 273 |
| Package height | 68 |
| Package weight | 2344 |
| Weight & dimensions | |
| Width | 305 |
| Depth | 244 |
| Packaging content | |
| Cables included | SATA |
| Other features | |
| mSATA ports quantity | 0 |
| Quick installation guide | Y |
| Back-to-BIOS button | Y |
