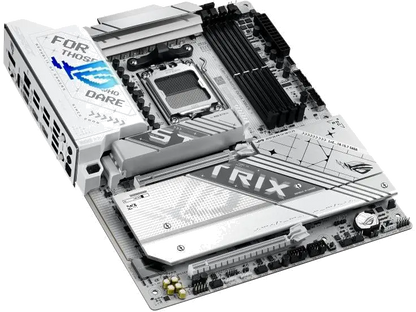

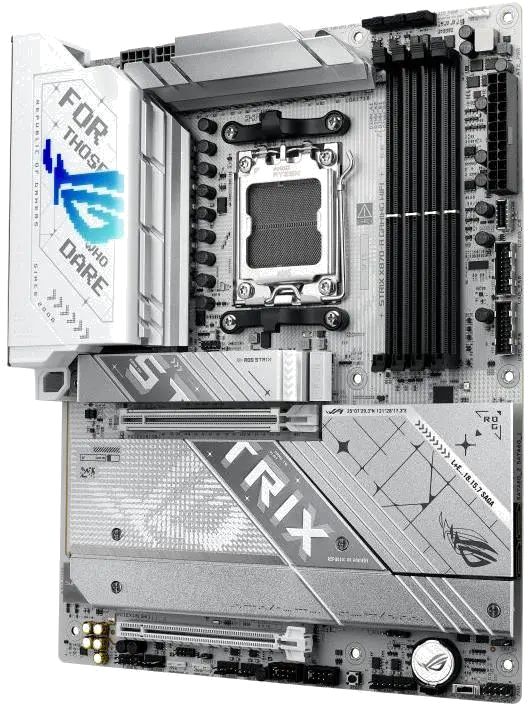

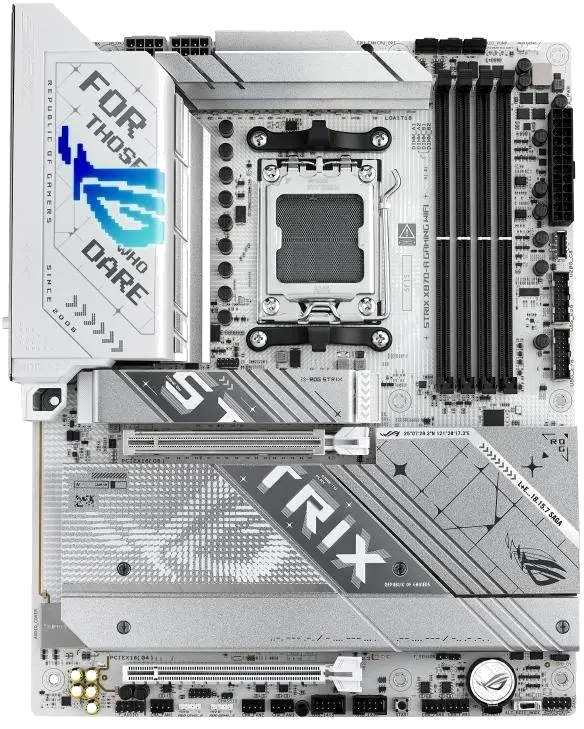

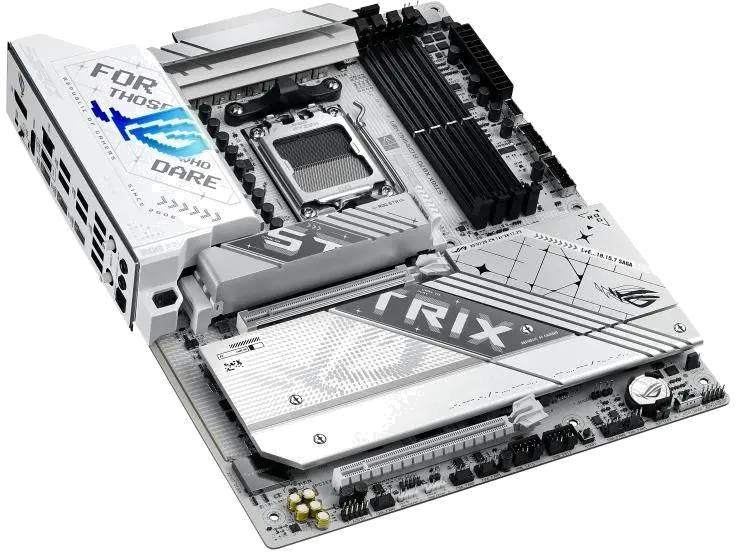

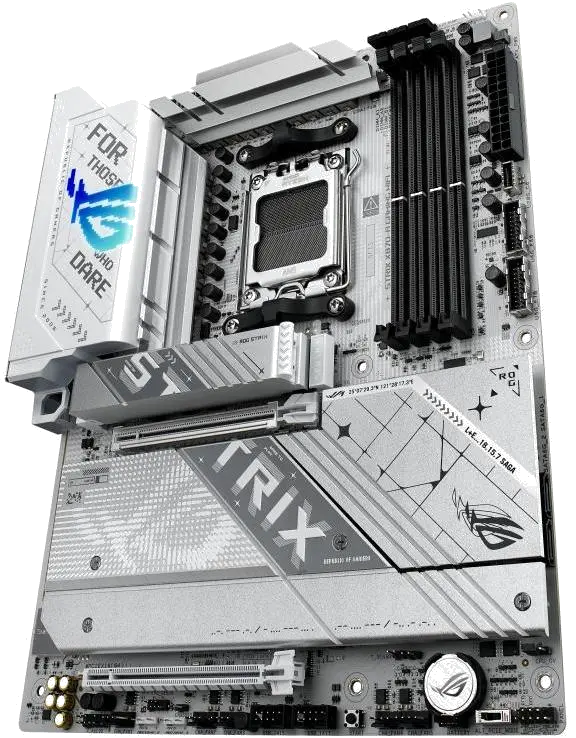

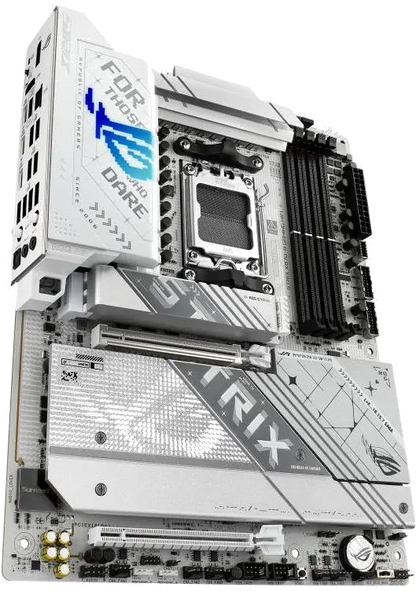

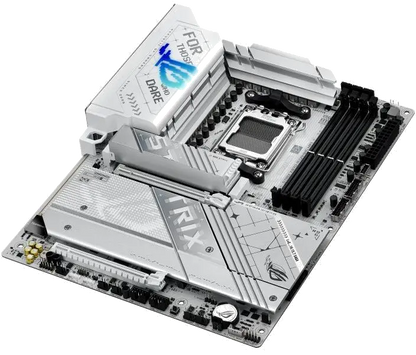

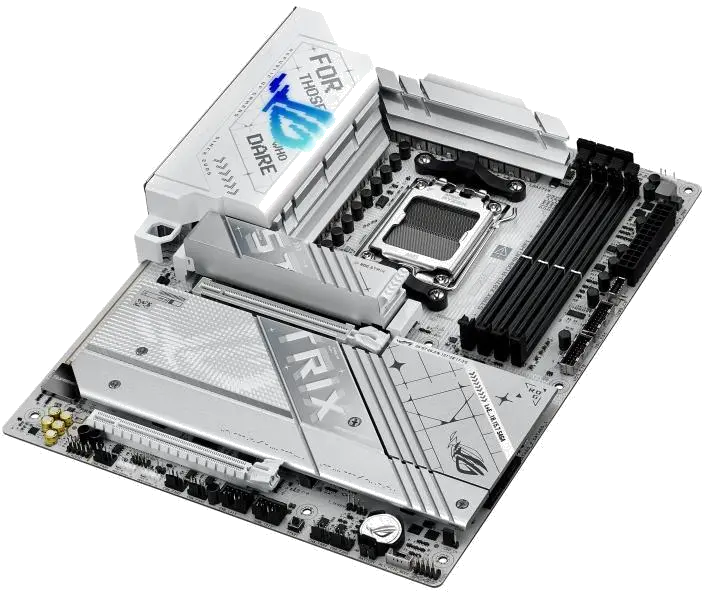

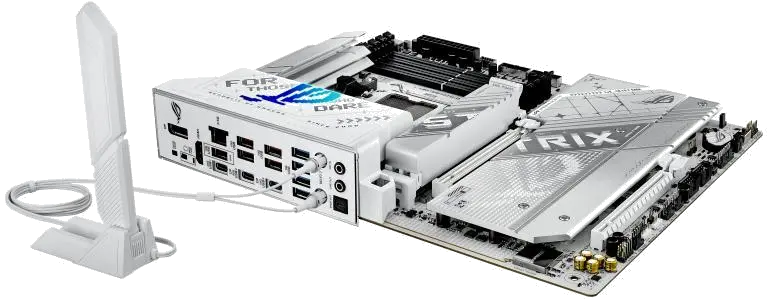

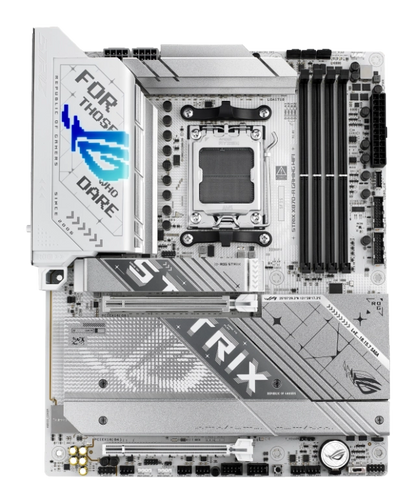

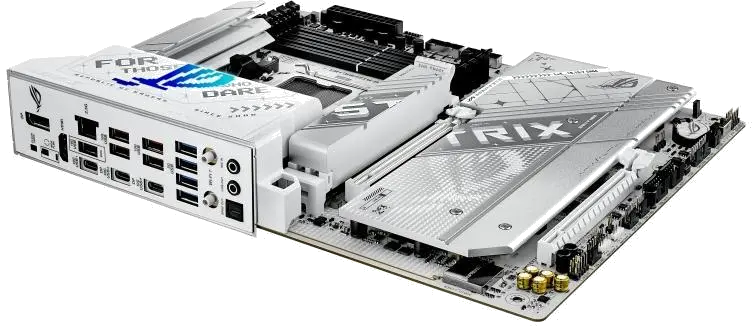

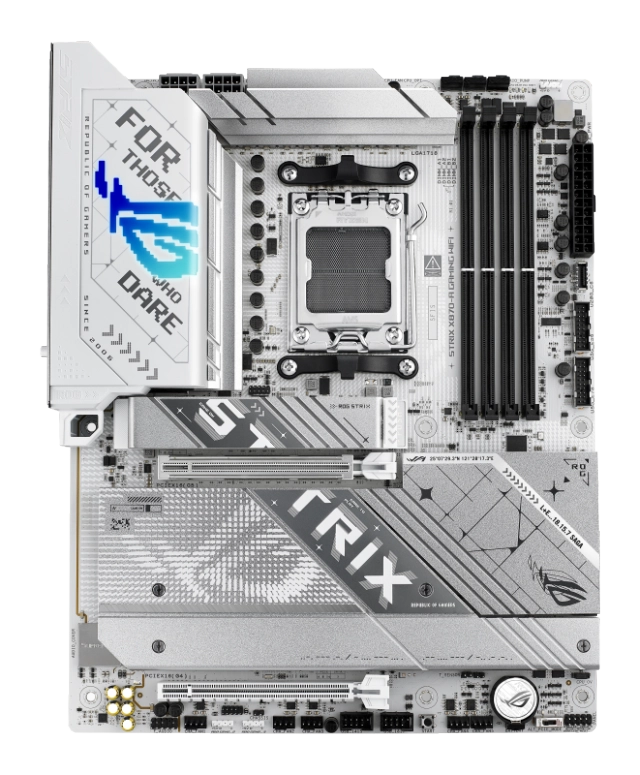

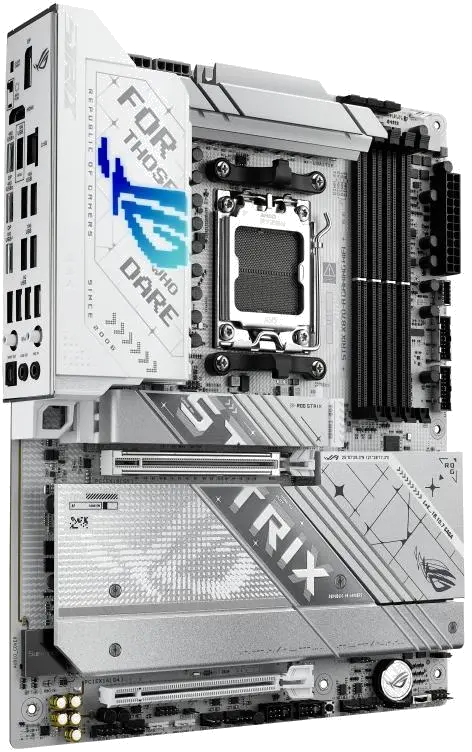

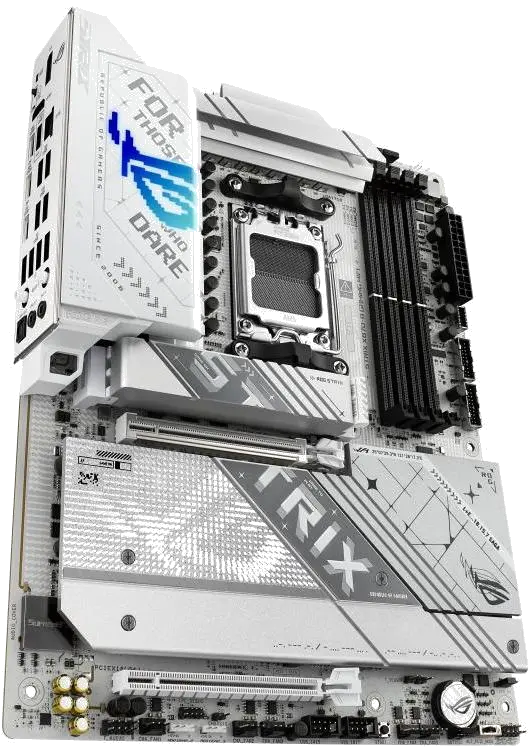

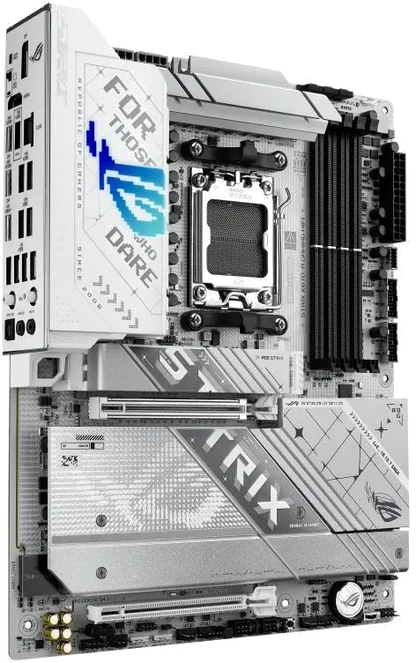

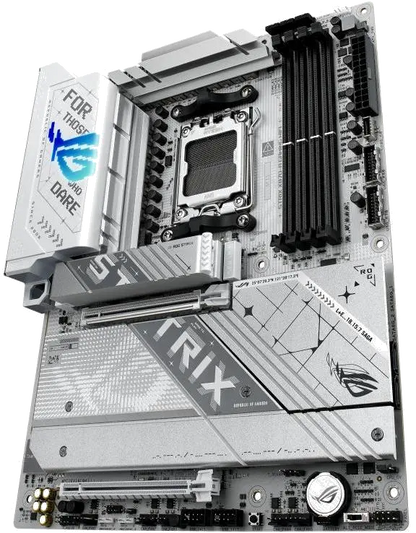

Asus Placa de Baza ROG STRIX X870-A GAMING WIFI AM5 4x DDR5, 1x DP 1x HDMI 2x USB TYP [ID 40568]
Asus Placa de Baza ROG STRIX X870-A GAMING WIFI AM5 4x DDR5, 1x DP 1x HDMI 2x USB TYP [ID 40568]
SKU:ROG STRIX X870-A GAMING WIFI
Description
Placa de Baza ROG STRIX X870-A GAMING WIFI AM5 4x DDR5, 1x DP 1x HDMI 2x USB TYPE-C, 1x PCIE 5.0 x16 2x PCIE 4.0 x16, 4x M.2, 2x SATA 6GB/s, WIFI7, ATX
Available
| Quantity | Delivery |
| 2 | 2 days |
Couldn't load pickup availability
Description
Specifications
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 192 |
| Unbuffered memory | Y |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 6 |
| RAID support | Y |
| RAID levels | 0,1,10,5 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | N |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 2 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of chassis fan connectors | 5 |
| Chassis intrusion connector | Y |
| 12V power connector | Y |

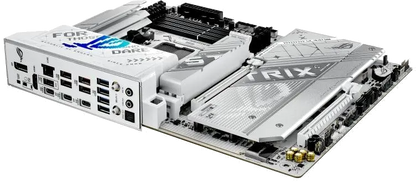

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Y |
| S/PDIF out port | Y |

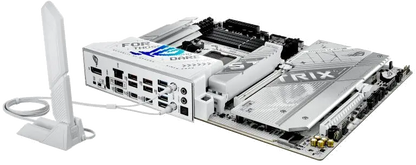

| WiFi-AP antenna jack | 1 |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Y |
| Bluetooth version | 5.4 |
| Features | |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 |
| Product colour | Aluminium |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| Clear CMOS button | Y |
| Packaging data | |
| Package width | 353 |
| Package depth | 273 |
| Package height | 68 |
| Package weight | 2316 |
| Weight & dimensions | |
| Width | 305 |
| Depth | 244 |
| Height | 50 |
| Packaging content | |
| Cables included | SATA |
| Other features | |
| mSATA ports quantity | 0 |
| Weight | 1836 |
