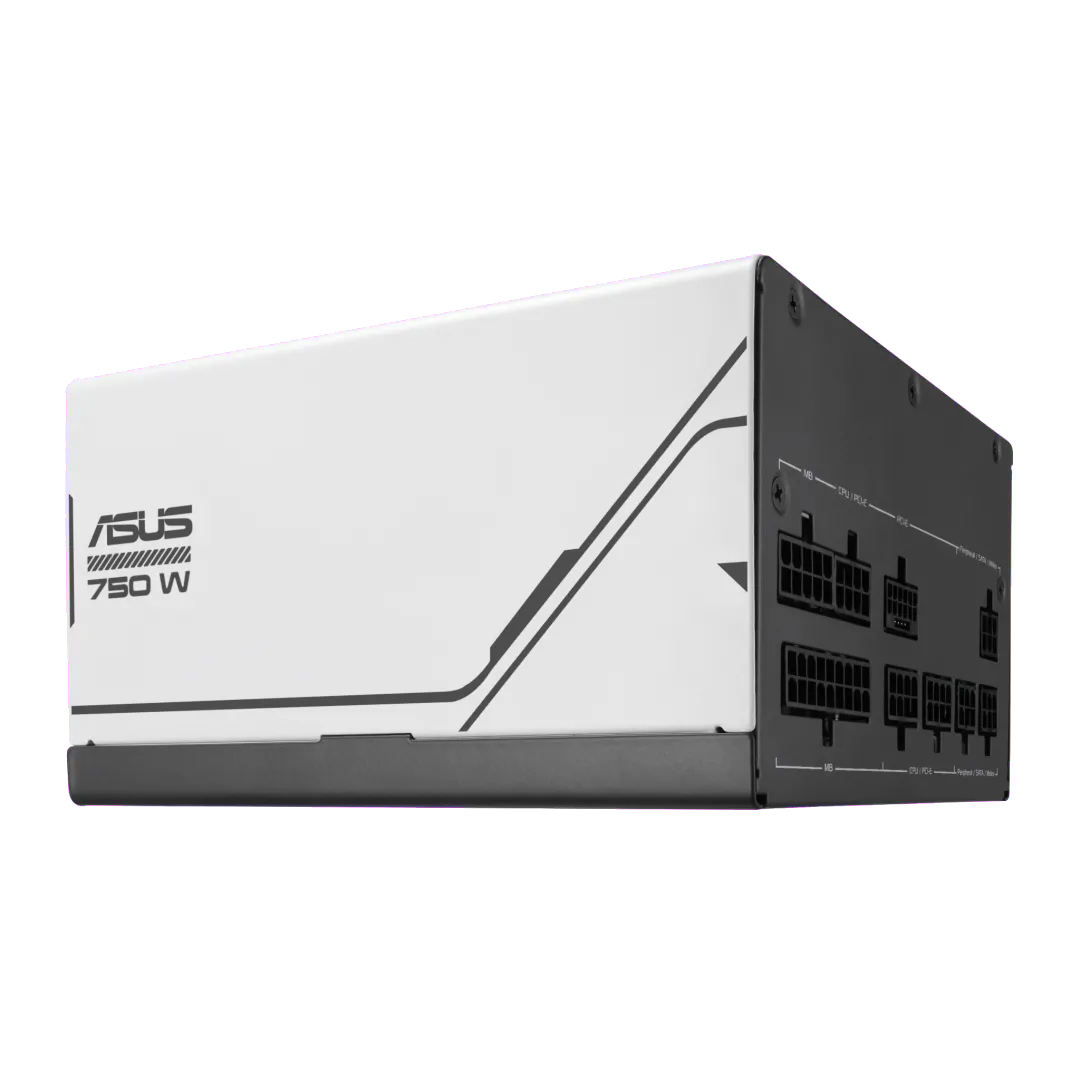

Asus ATX Prime 750W Gold AP 750G Power Supply [ID 35135]
Asus ATX Prime 750W Gold AP 750G Power Supply [ID 35135]
SKU:AP-750G
Description
ATX Prime 750W Gold Asus AP 750G power supply, compatible with the ATX 3.0 standard, high efficiency with Gold certification, compact dimensions 150x150x86mm, bulk version for integrators and custom office or gaming configurations.
Couldn't load pickup availability
Description
Specifications
| Power | |
| Total power | 750 |
| AC input voltage | 100 - 240 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 |
| Combined power (+12V) | 744 |
| Combined power (+5V) | 110 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 12.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V) | 62 |
| Max output current (+5V) | 20 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 2.5 |
| Efficiency | 92 |
| Power protection features | Over power,Over voltage,Overcharge,Overheating,Short circuit,Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 610 |
| Number of SATA power connectors | 5 |
| SATA power cable length | 120,400 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,400 |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| CPU P4 connector (4-pin) | 2 |
| CPU power connector (4+4 pin) | Y |
| CPU power cable length | 650 |
| ATX power connector (20+4 pin) | Y |
| Cabling type | Fully-Modular |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 120000 |
| Design | |
| Product colour | Black,White |
| Cooling type | Active |
| On/off switch | Y |
| Packaging content | |
| Cables included | AC,CPU,PCIe,Peripheral (Molex),SATA |
| Weight & dimensions | |
| Width | 150 |
| Depth | 150 |
| Height | 86 |
| Weight | 1466 |
| Packaging data | |
| Package width | 346 |
| Package depth | 208 |
| Package height | 144 |
| Package weight | 2880 |
| Package type | Box |
