Asus

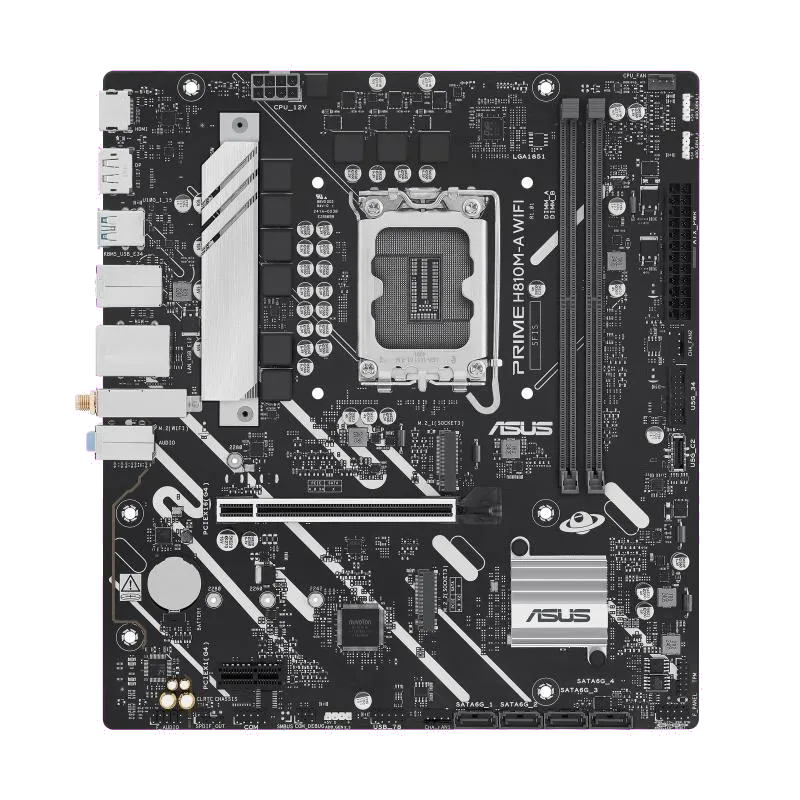

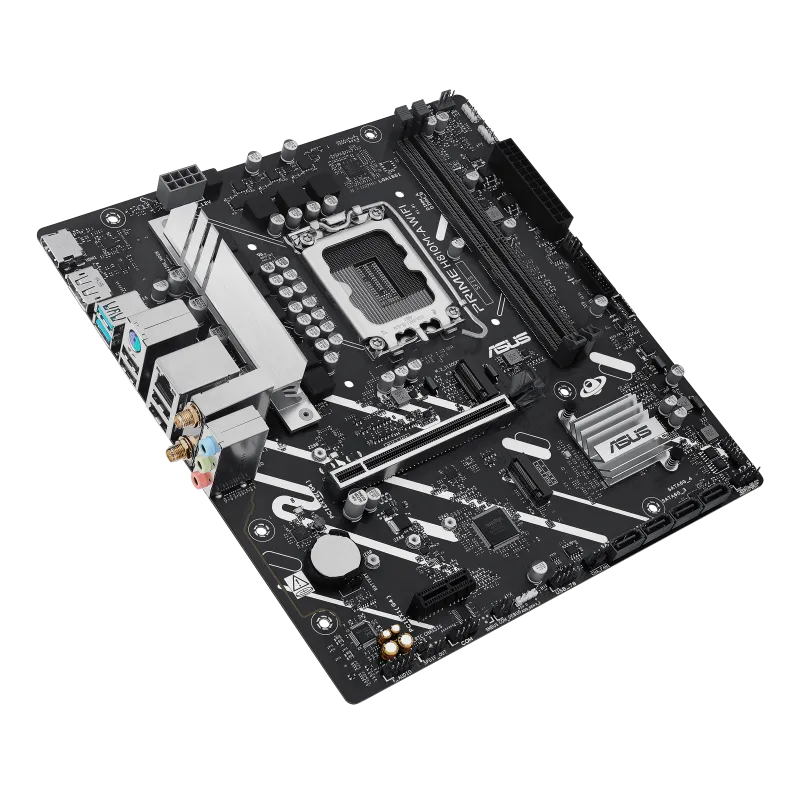

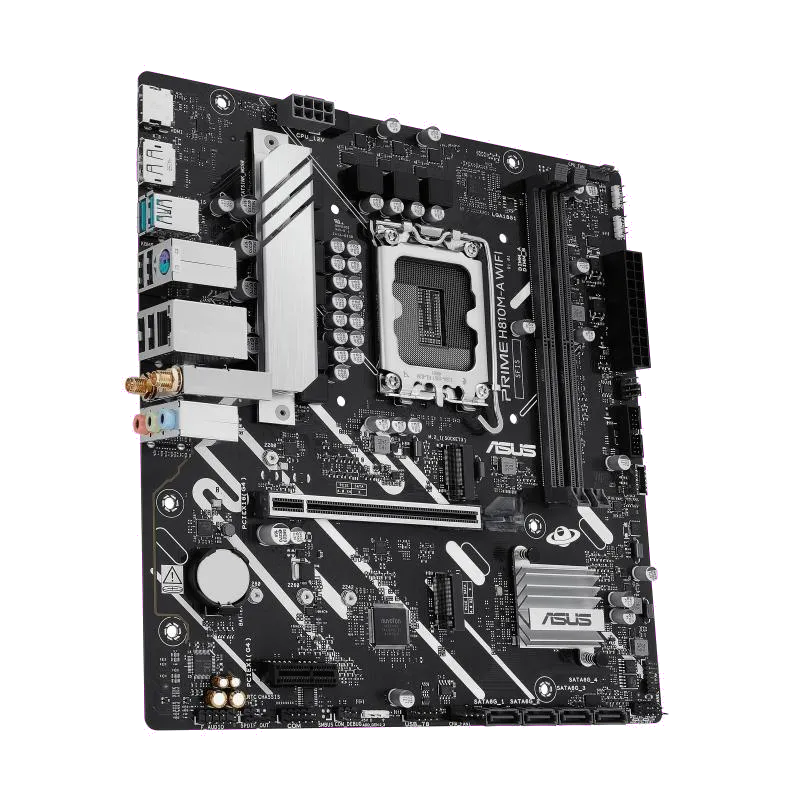

Asus PRIME H810M-A WIFI Motherboard LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 [ID 39538]
Asus PRIME H810M-A WIFI Motherboard LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 [ID 39538]
SKU:PRIME H810M-A WIFI
Description
PRIME H810M-A WIFI Motherboard LGA1851, 2x DDR5, 1x DP 1x HDMI, 1x PCIE 4.0 x16 1x PCIE 4.0 x1, 2x M.2, 4x SATA 6GB/s, mATX
Couldn't load pickup availability
Description
Specifications
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 |
| Unbuffered memory | Y |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| TPM connector | Y |
| 12V power connector | Y |

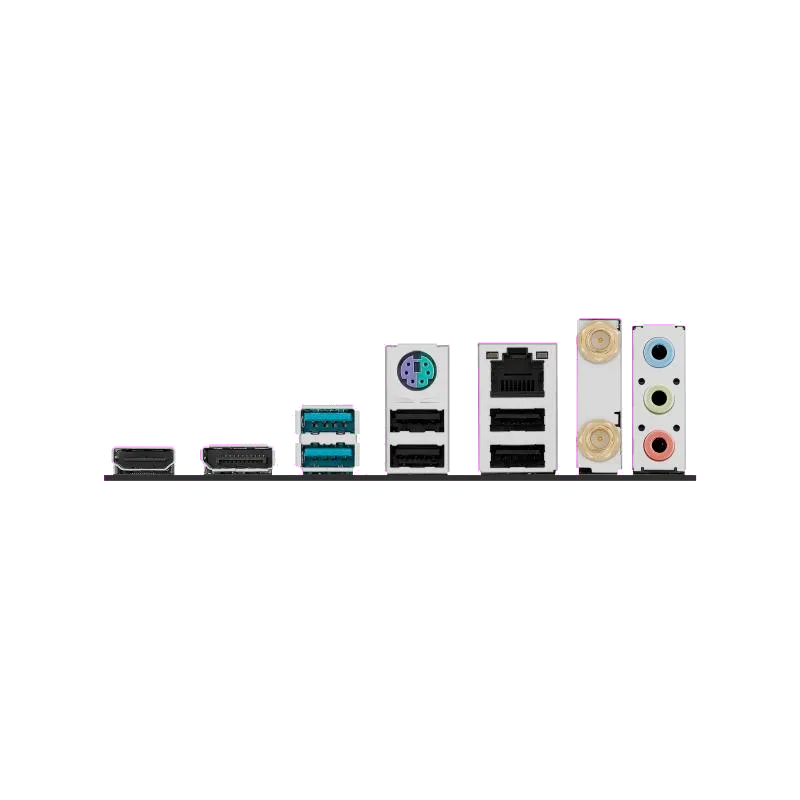

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |

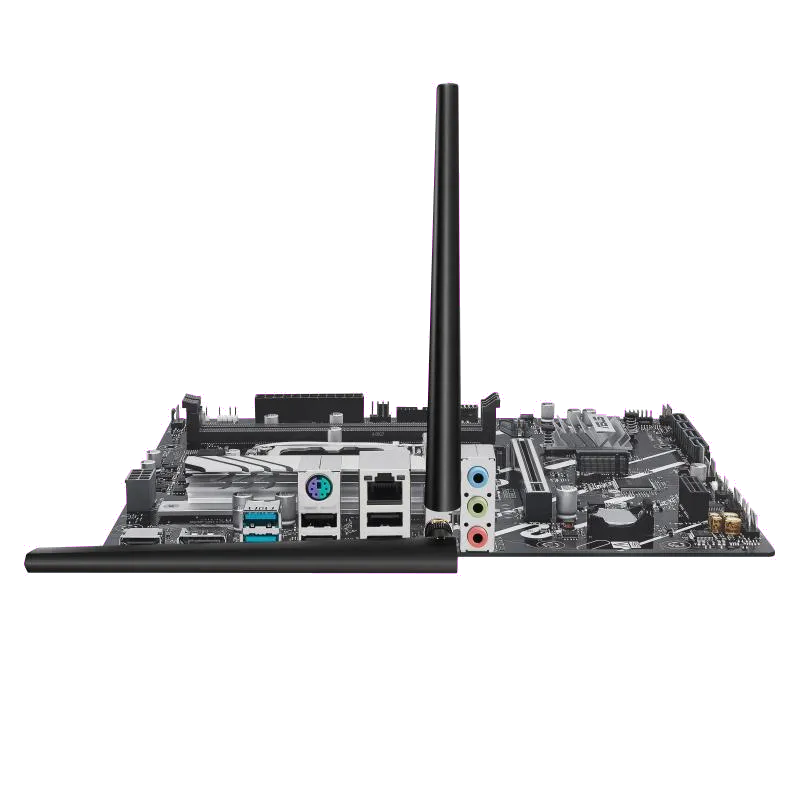

| WiFi-AP antenna jack | 1 |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Features | |
| Component for | PC |
| Motherboard form factor | Micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H810 |
| Audio output channels | 7.1 |
| Windows operating systems supported | Windows 10 x64,Windows 11 |
| Expansion slots | |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| Weight & dimensions | |
| Width | 244 |
| Depth | 222 |
| Packaging content | |
| Cables included | SATA |
| Screws included | Y |
