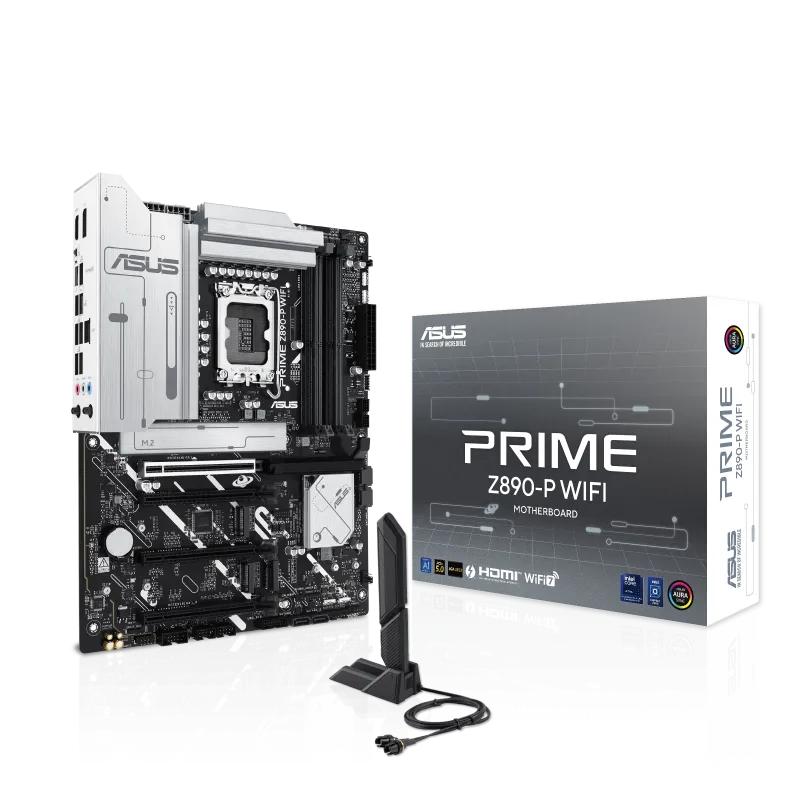

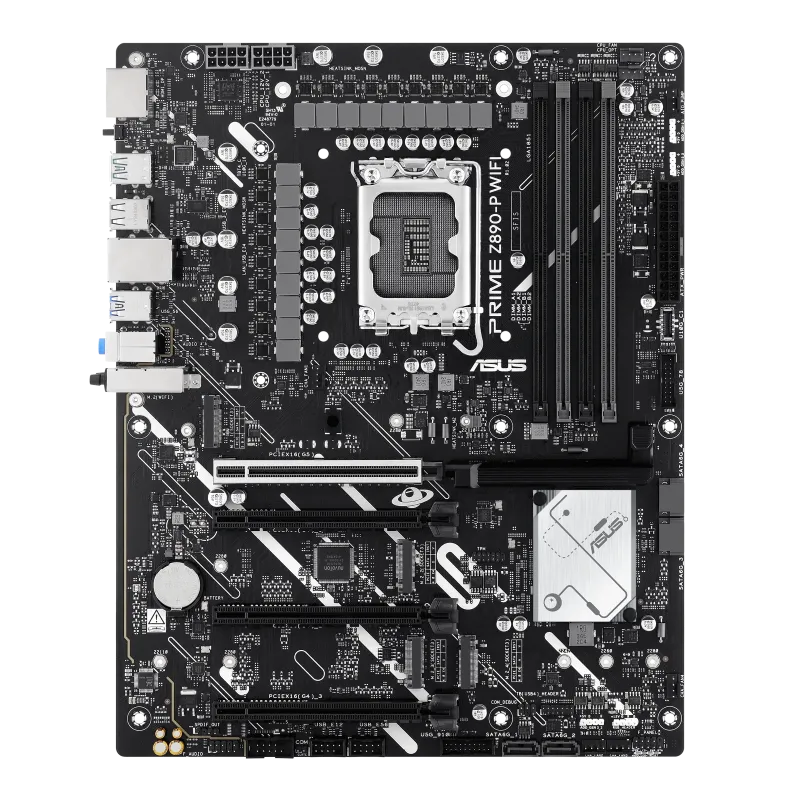

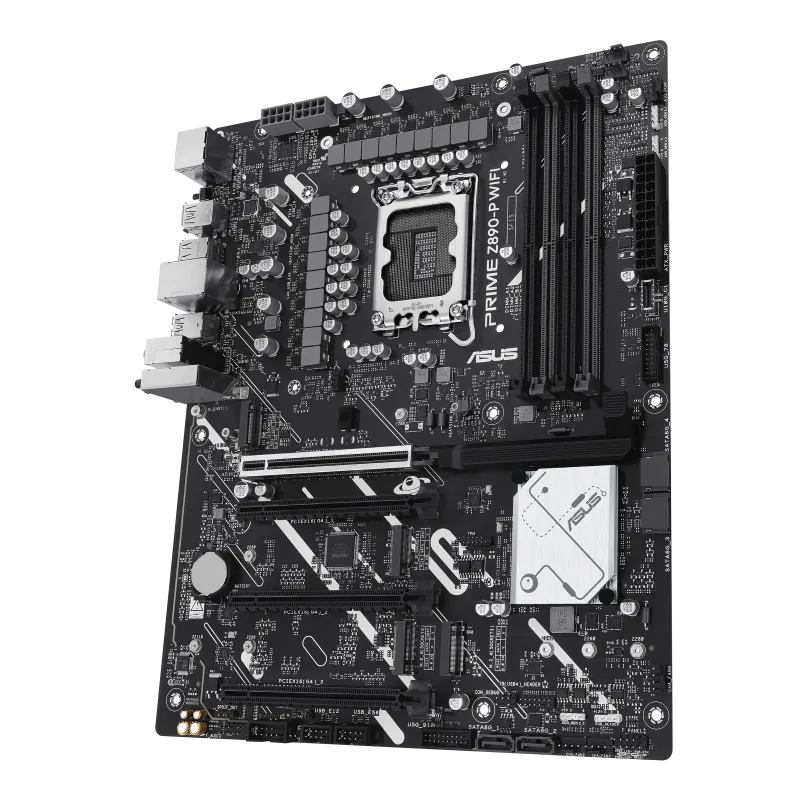

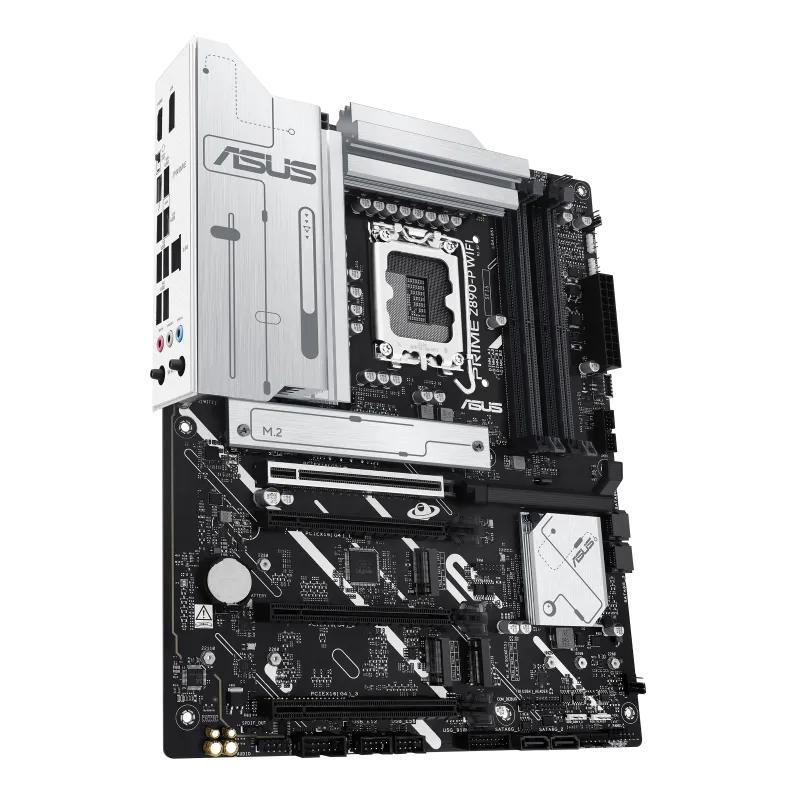

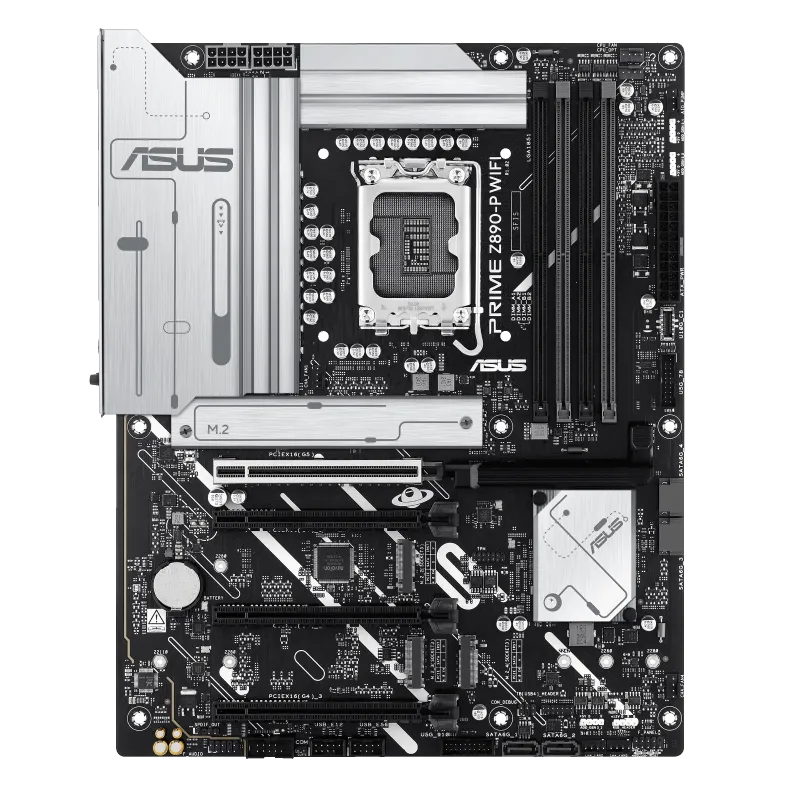

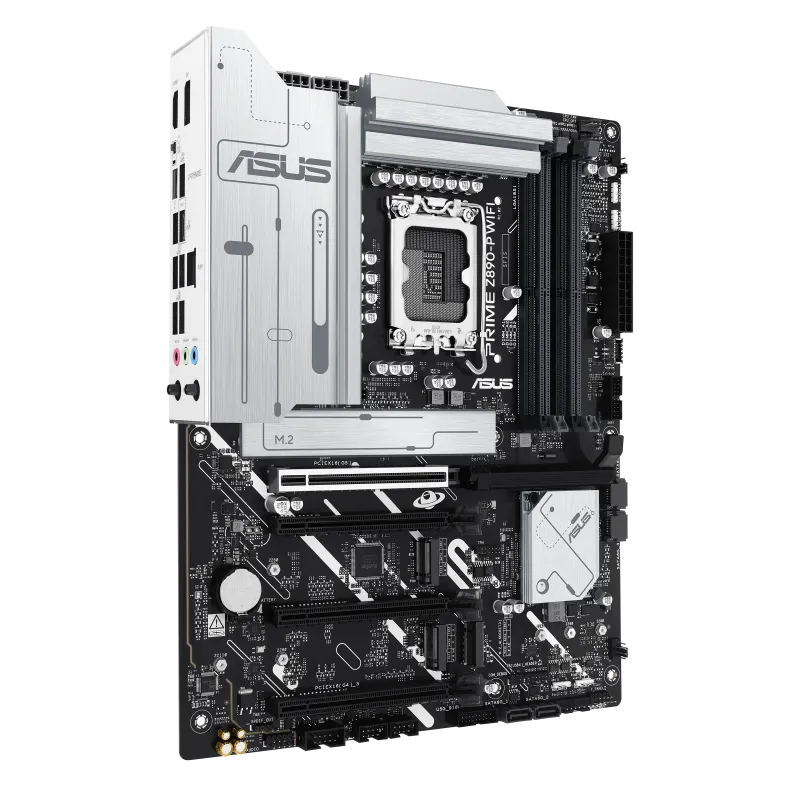

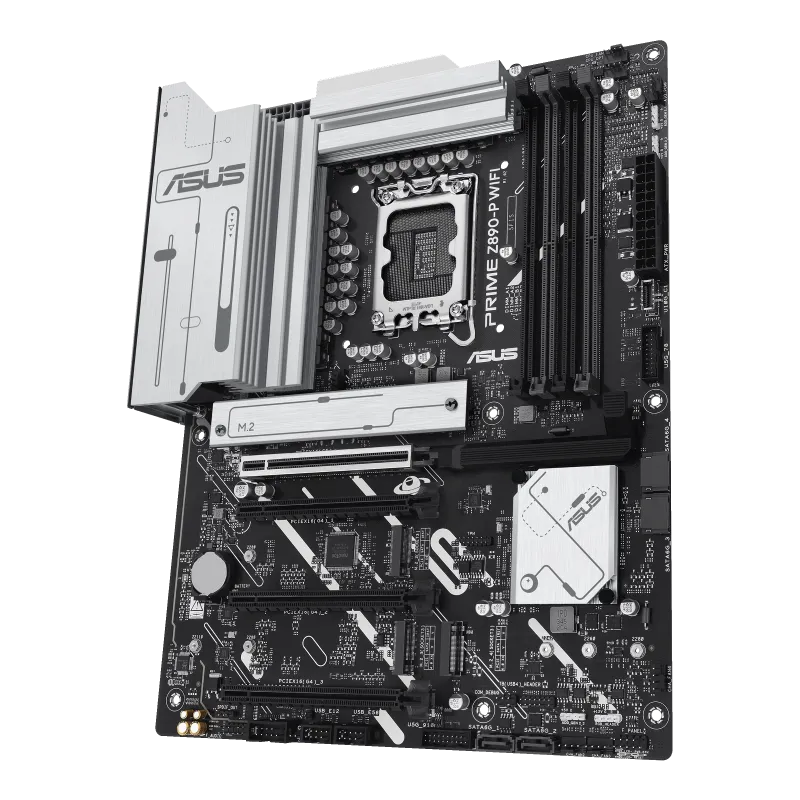

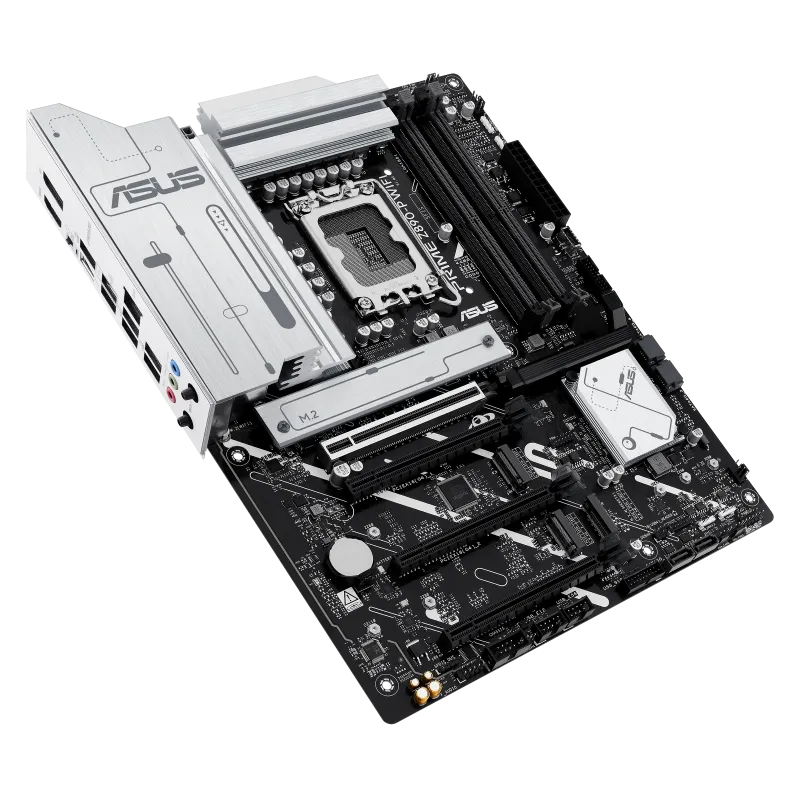

Asus PRIME Z890-P WIFI Placa de Baza WIFI LGA1851, 4x DDR5, 1x DP 1x HDMI ATX [ID 39541]
Asus PRIME Z890-P WIFI Placa de Baza WIFI LGA1851, 4x DDR5, 1x DP 1x HDMI ATX [ID 39541]
SKU:PRIME Z890-P WIFI
Description
PRIME Z890-P WIFI Placa de Baza WIFI LGA1851, 4x DDR5, 1x DP 1x HDMI 1x Intel Thunderbolt, 1x PCIE 5.0 x16 2x PCIE 4.0 x16 1x PCIE 4.0 x16, 4x M.2 4x SATA 6GB/s, ATX
Available
| Quantity | Delivery |
| 40 | 2 days |
Couldn't load pickup availability
Description
Collapse
Specifications
Expand
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 7600 |
| Maximum internal memory | 192 |
| Unbuffered memory | Y |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | N |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Y |
| Number of COM connectors | 1 |
| TPM connector | Y |
| Thunderbolt headers | 1 |
| 12V power connector | Y |
| RGB LED pin header | Y |

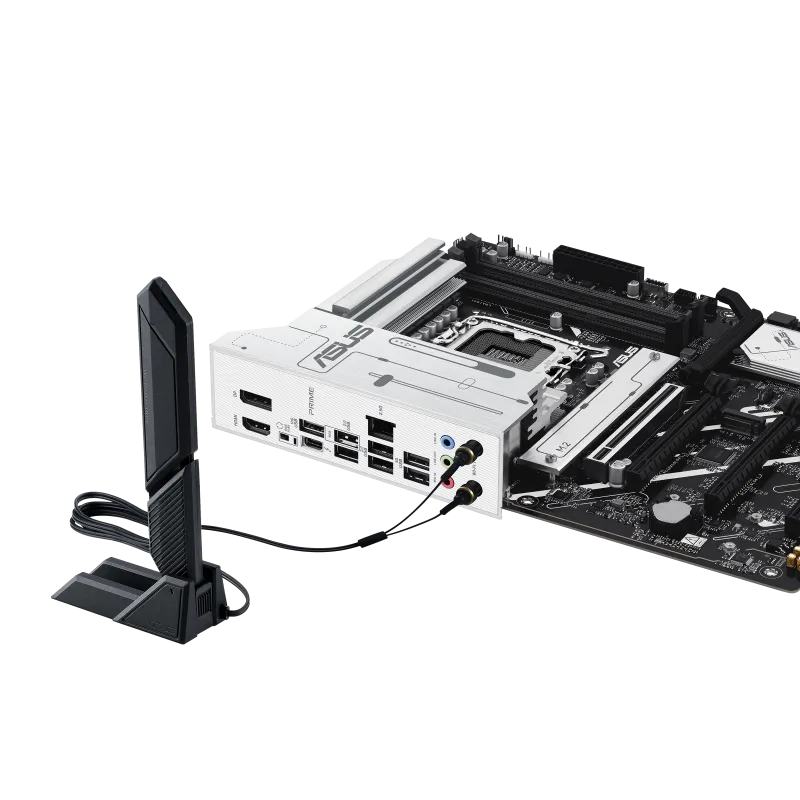

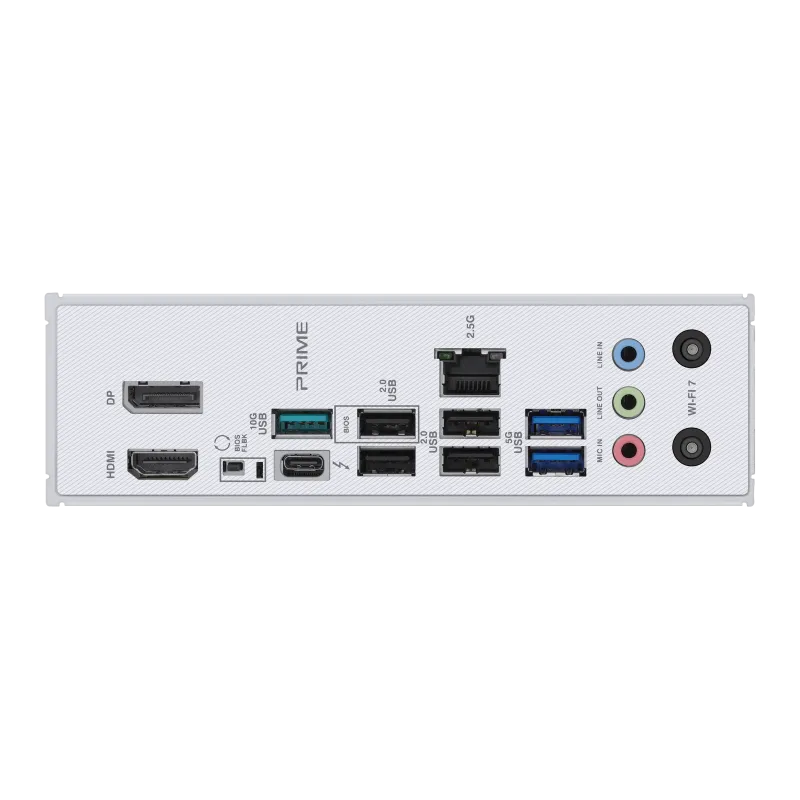

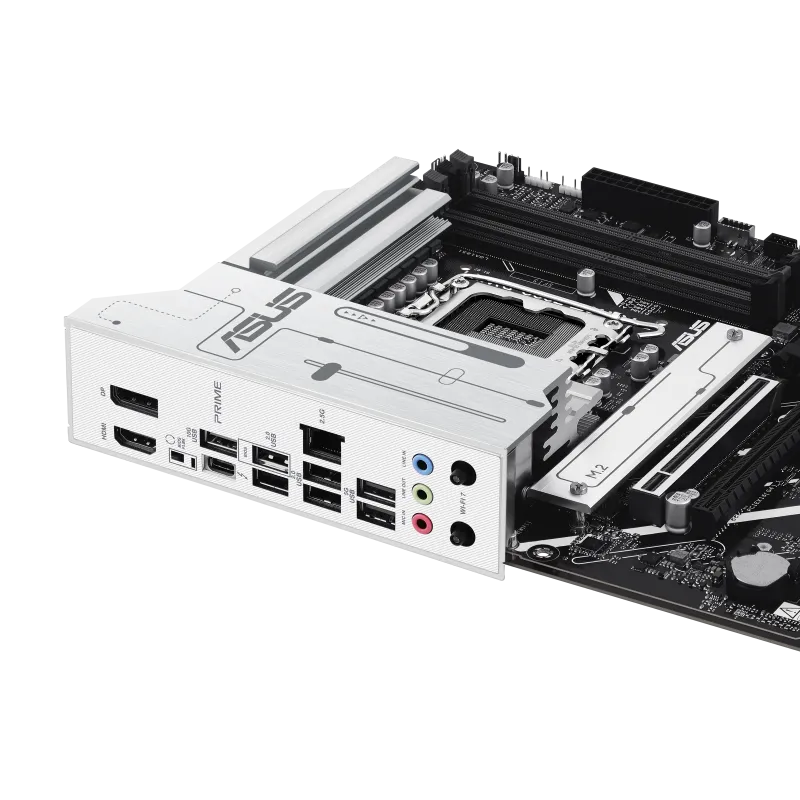

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Y |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be) |
| Bluetooth | Y |
| Bluetooth version | 5.4 |
| Features | |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Audio output channels | 7.1 |
| Product colour | Black |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 10,Windows 11 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| Packaging data | |
| Package width | 353 |
| Package depth | 273 |
| Package height | 68 |
| Package weight | 1893 |
| Weight & dimensions | |
| Width | 305 |
| Depth | 244 |

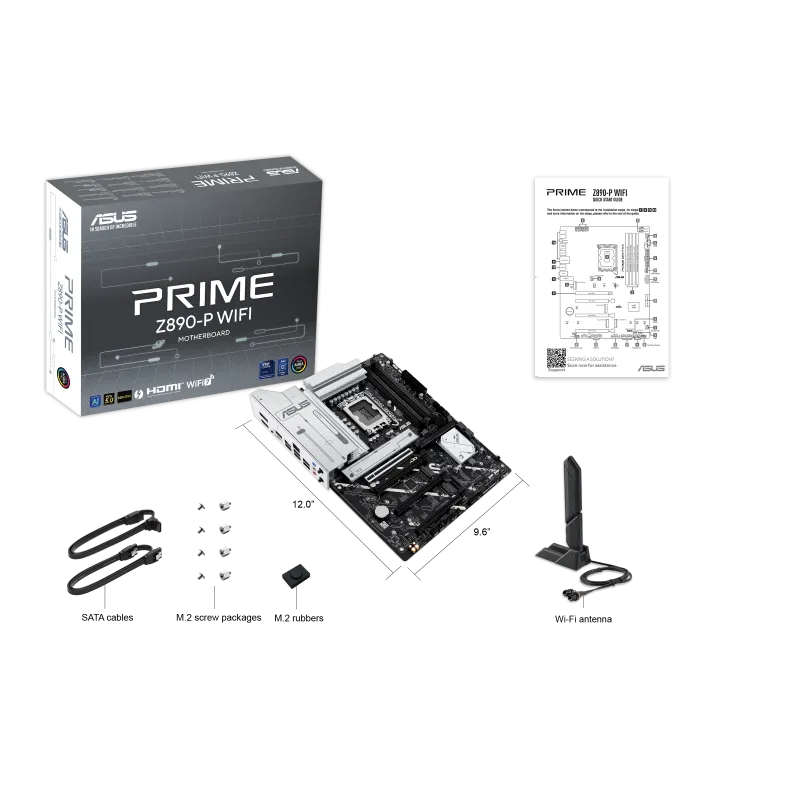

| Packaging content | |
| Cables included | SATA |
| Other features | |
| Quick installation guide | Y |
| Back-to-BIOS button | Y |
