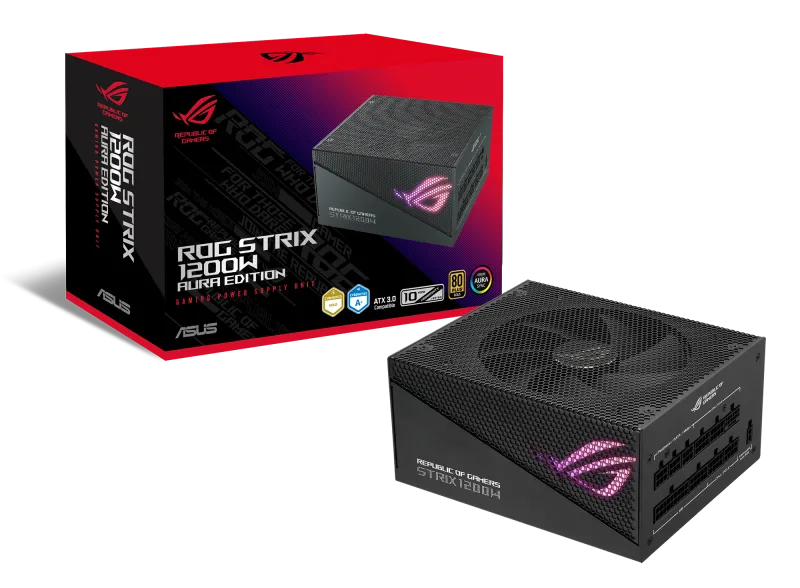

Asus ROG STRIX 1200W 80+ GOLD source PC ATX 3.0 80 Plus Gold [ID 38251]
Asus ROG STRIX 1200W 80+ GOLD source PC ATX 3.0 80 Plus Gold [ID 38251]
SKU:ROG-STRIX-1200G-AURA-GAMING
Description
ROG STRIX 1200W 80+ GOLD source PC Intel Form Factor ATX12V ATX 3.0 Yes Dimensions 180 x 150 x 86 mm Efficiency 80Plus Gold Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100-240Vac DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 22A 22A 100A 0.3A 3A Combined Load 120W 120W 1200W 3.6W 15W Total Output 1200W Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 4 SATA x 5 PERIPHERALS x 4 Package Contents Power Cord x 1 Motherboard Power Cable x 1 (600mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (700mm) PCI-E 1-to-1 Cable x 2 (700mm) PCI-E 1-to-2 Cable x 1 (700mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) Addressable RGB Cable x 1 (800mm) User Manual x 1 Weight 3.23 kg (single PSU) AURA SYNC ARGB 0dB Fan Button Yes Cybenetics Noise Level Certification A+
Available
| Quantity | Delivery |
| 4 | 2 days |
Couldn't load pickup availability
Description
Specifications
| Power | |
| Total power | 1200 |
| AC input voltage | 100 - 240 |
| Combined power (+3.3V) | 120 |
| Combined power (+12V) | 1200 |
| Combined power (+5V) | 120 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 15 |
| Max output current (+3.3V) | 22 |
| Max output current (+12V) | 100 |
| Max output current (+5V) | 22 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 3 |
| Power protection features | Over current,Over power,Over voltage,Short circuit,Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 600 |
| Number of SATA power connectors | 5 |
| SATA power cable length | 120,400 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150,400 |
| PCI Express power connectors (8-pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Y |
| CPU power cable length | 650 |
| Cabling type | Fully-Modular |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Silent mode | Y |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 |
| Fan location | Top |
| Illumination | Y |
| On/off switch | Y |
| Weight & dimensions | |
| Width | 180 |
| Depth | 150 |
| Height | 86 |
| Weight | 3230 |
| Packaging data | |
| Package type | Box |
| Technical details | |
| Sustainability compliance | Y |
