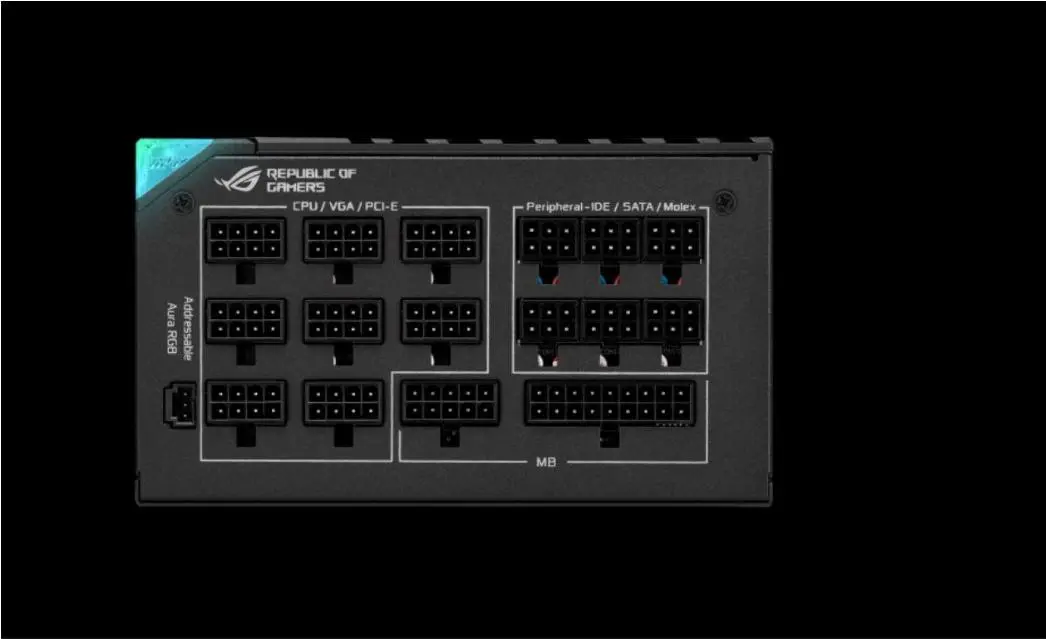

Asus 1200W 80Plus Platinum Modular PC Power Supply (34068)
MPN:ROG-THOR-1200P2
Description
Full description
Full description
Specifications
| Power | |
| Total power | 1200 |
| AC input voltage | 100 - 240 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 |
| Combined power (+12V) | 1200 |
| Combined power (+5V) | 125 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 15 |
View all specifications (+36)
| Max output current (+3.3V) | 25 |
| Max output current (+12V) | 100 |
| Max output current (+5V) | 25 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 3 |
| Efficiency | 89 |
| Power protection features | Over current,Over power,Over voltage,Overheating,Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Y |
| ATX power connector (20+4 pin) | Y |
| Cabling type | Fully-Modular |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Silent mode | Y |
| Bearing technology | Ball bearing |
| Certification | Lambda A++, 80 Plus Platinum |
| Design | |
| Product colour | Black,Silver |
| Cooling type | Active |
| Fan diameter | 135 |
| Number of fans | 1 |
| Illumination | Y |
| Built-in display | Y |
| Display type | LED |
| On/off switch | Y |
| Packaging content | |
| Cables included | AC,CPU,PCIe,Peripheral (Molex),SATA |
| Weight & dimensions | |
| Width | 150 |
| Depth | 190 |
| Height | 86 |
| Weight | 2370 |
| Packaging data | |
| Package type | Box |
| Technical details | |
| Sustainability compliance | Y |
