Asus

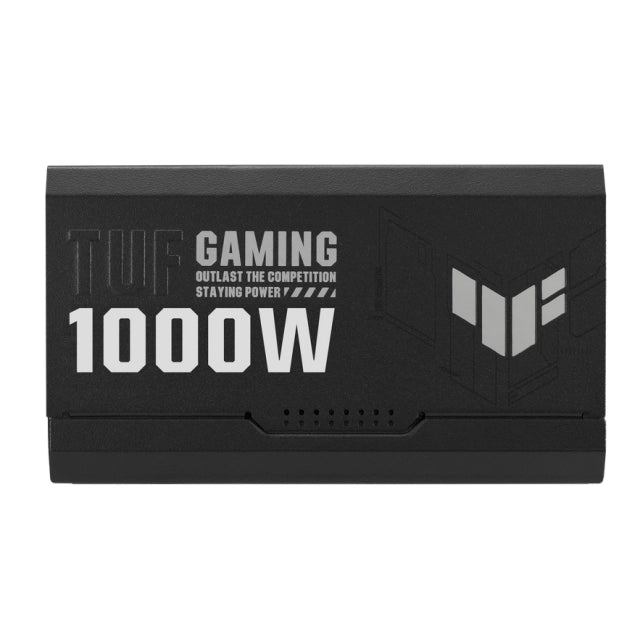

Source Asus TUF Gaming 1000W Gold
Source Asus TUF Gaming 1000W Gold
SKU:TUF-GAMING-1000G
Description
Source Asus TUF Gaming 1000W Gold Source Asus TUF Gaming 1000W Gold Intel Form Factor ATX12V ATX 3.0 Yes Dimensions 150 x 150 x 86 mm Efficiency 80Plus Gold Protection Features OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials ROHS AC Input Range 100- 240Vac DC Output Voltage +3.3V +5V +12V -12V +5Vsb Maximum Load 25A 25A 83.3A 0.8A 3A Combined Load 130W 130W 1000W 9.6W 15W Total Output 1000W Connectors MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 PCI-E 8-pin x 4 SATA x 5 PERIPHERAL x 4 Package Contents Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E 1-to-1 Cable x 2 (675mm) PCI-E 1-to-2 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm ) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable tie x 3 User Manual x 1 Weight 2.48kg (single PSU) 0dB Fan Button No
Couldn't load pickup availability
Description
Specifications
| Power | |
| Total power | 1000 |
| AC input voltage | 100 - 240 |
| Combined power (+3.3V) | 130 |
| Combined power (+12V) | 1000 |
| Combined power (+5V) | 130 |
| Combined power (-12V) | 9.6 |
| Combined power (+5Vsb) | 15 |
| Max output current (+3.3V) | 25 |
| Max output current (+12V) | 83.3 |
| Max output current (+5V) | 25 |
| Max output current (-12V) | 0.8 |
| Max output current (+5Vsb) | 3 |
| Efficiency | 92 |
| Power protection features | Over power,Over voltage,Overcharge,Overheating,Short circuit,Under power,Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 610 |
| Number of SATA power connectors | 5 |
| SATA power cable length | 120,400 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150,400 |
| PCI Express power connectors (8-pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 675 |
| CPU power connector (4+4 pin) | Y |
| CPU power cable length | 650 |
| ATX power connector (20+4 pin) | Y |
| Cabling type | Fully-Modular |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 135 |
| Number of fans | 1 |
| On/off switch | Y |
| Weight & dimensions | |
| Width | 150 |
| Depth | 150 |
| Height | 86 |
| Weight | 2480 |
