Asus TUF Gaming 750W Gold Power Supply PC Intel Form Factor ATX12V ATX 3.0 [ID 34698]
MPN:TUF-GAMING-750G
Description
Full description
Full description
Specifications
| Power | |
| Total power | 750 |
| AC input voltage | 100 - 240 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 |
| Combined power (+12V) | 744 |
| Combined power (+5V) | 130 |
| Combined power (-12V) | 9.6 |
| Combined power (+5Vsb) | 15 |
View all specifications (+40)
| Max output current (+3.3V) | 25 |
| Max output current (+12V) | 62 |
| Max output current (+5V) | 25 |
| Max output current (-12V) | 0.8 |
| Max output current (+5Vsb) | 3 |
| Efficiency | 92 |
| Power protection features | Over current,Over power,Over voltage,Short circuit,Under voltage |
| Ports & interfaces | |

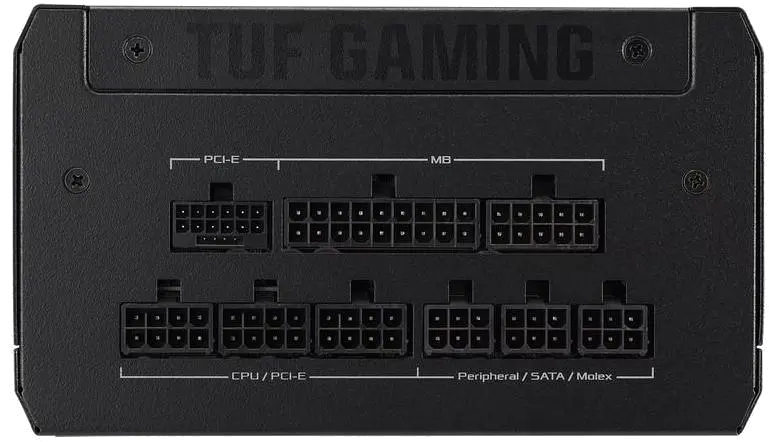

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 610 |
| Number of SATA power connectors | 5 |
| SATA power cable length | 120,400 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 150,400 |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| CPU power connector (4+4 pin) | Y |
| CPU power cable length | 650 |
| ATX power connector (20+4 pin) | Y |
| Cabling type | Fully-Modular |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 170000 |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 135 |
| Number of fans | 1 |
| Illumination | N |
| On/off switch | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 105 |
| Packaging content | |
| Cables included | AC,CPU,PCIe,Peripheral (Molex),SATA |
| Cable tie(s) included | Y |
| Weight & dimensions | |
| Width | 150 |
| Depth | 150 |
| Height | 86 |
| Weight | 2380 |
| Technical details | |
| Warranty period | 10 |
| Sustainability compliance | Y |
