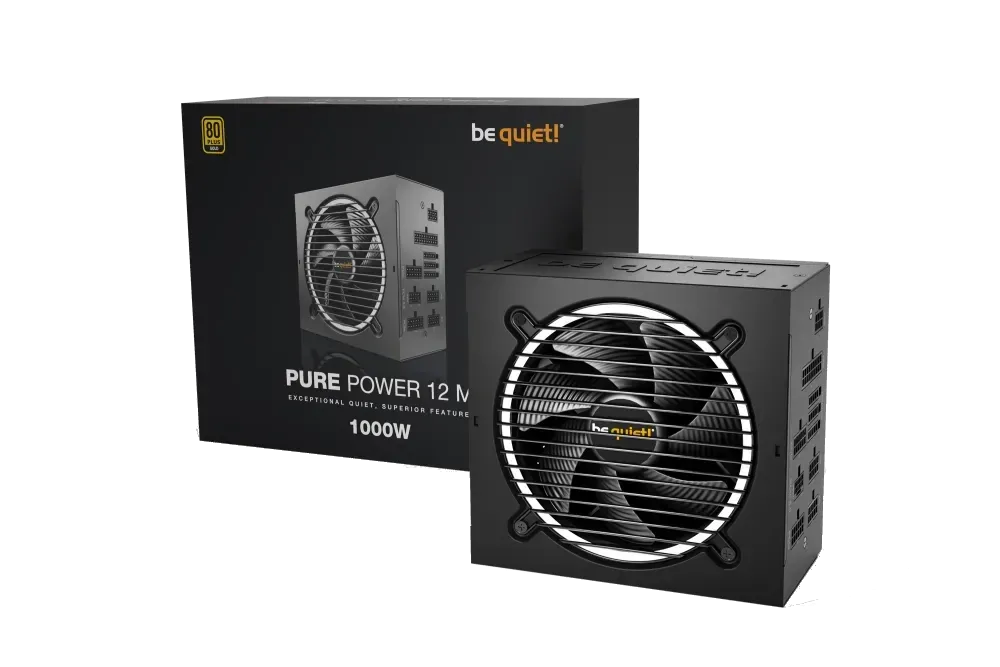

BE QUIET! Pure Power 12M 1000W Gold PSU [ID 33630]
BE QUIET! Pure Power 12M 1000W Gold PSU [ID 33630]
SKU:BN345
Description
Pure Power 12M 1000W Gold PSU
Available
| Quantity | Delivery |
| 70 | 8 days |
Couldn't load pickup availability
Description
Specifications
| Power | |
| Total power | 1000 |
| Peak power | 1050 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Input current | 12 / 6 |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 |
| Combined power (+12V) | 1000 |
| Combined power (+5V) | 120 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 15 |
| Max output current (+3.3V) | 22 |
| Max output current (+12V) | 83.4 |
| Max output current (+12V1) | 46 |
| Max output current (+12V2) | 42 |
| Max output current (+5V) | 22 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 3 |
| Power Good signal delay range | 100 - 150 |
| Efficiency | 93.2 |
| Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 550 |
| Number of SATA power connectors | 6 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 500,600,650,800,950 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Peripheral (Molex) power cable length | 550 |
| EPS power connector (8-pin) | Y |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power cable length | 650 |
| ATX power connector (20+4 pin) | Y |
| PCI Express connector | Y |
| Cabling type | Fully-Modular |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Noise level | 31.7 |
| Mean time between failures (MTBF) | 100000 |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 |
| Number of fans | 1 |
| Fan speed | 0 - 2000 |
| Fan location | Top |
| On/off switch | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Packaging content | |
| Cables included | PATA,PCIe,Peripheral (Molex),SATA |
| Weight & dimensions | |
| Width | 160 |
| Depth | 150 |
| Height | 86 |
| Packaging data | |
| Package type | Box |
| Technical details | |
| Sustainability compliance | Y |
| Warranty period | 10 |
| Sustainability certificates | ENERGY STAR,ErP |
| Other features | |
| Screws included | Y |
| Number of screws | 5 |
| Cable ties included | Y |
| Noise level (silent mode, <30%) | 9.3 |
| Noise level (quiet mode, 50%) | 9.6 |
| Noise level (full-load mode, 100%) | 31.7 |
