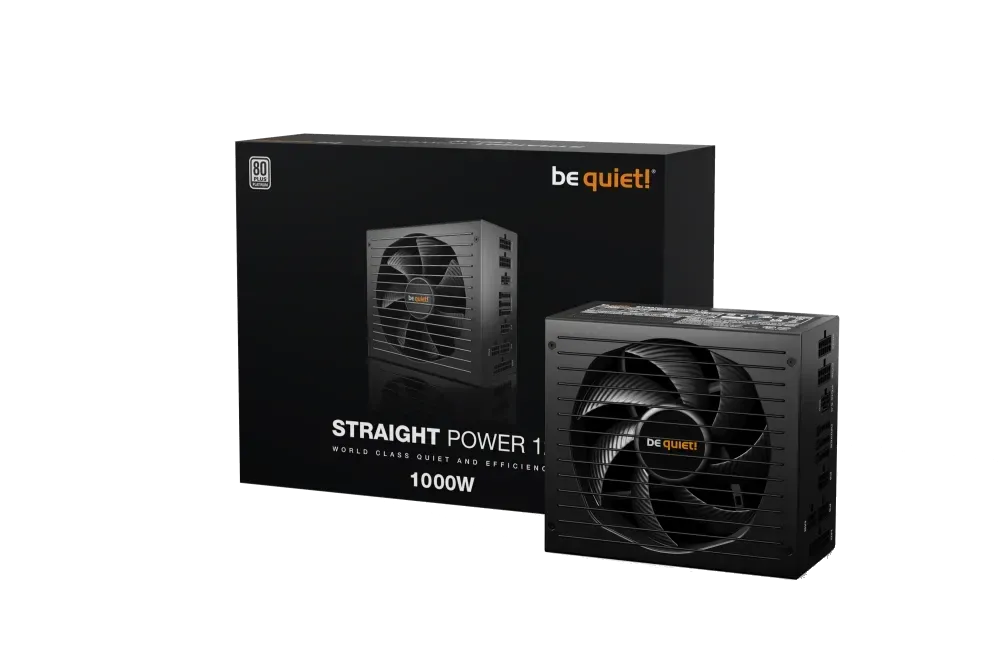

BE QUIET! Straight Power 12 PC source 1000W 80 PLUS platinum full modular ATX [ID 33631]
BE QUIET! Straight Power 12 PC source 1000W 80 PLUS platinum full modular ATX [ID 33631]
SKU:BN338
Description
Straight Power 12 PC source 1000W 80 PLUS platinum full modular ATX Active PFC protections: OCP, OVP, UVP, SCP, OTP, OPP, SIP
Available
| Quantity | Delivery |
| 1 | 6 days |
Couldn't load pickup availability
Description
Specifications
| Power | |
| Total power | 1000 |
| Peak power | 1070 |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Input current | 13/6.5 |
| Power factor | 0.99 |
| Combined power (+3.3V) | 150 |
| Combined power (+12V) | 999.6 |
| Combined power (+5V) | 150 |
| Max output current (+3.3V) | 25 |
| Max output current (+12V) | 83.3 |
| Max output current (+5V) | 25 |
| Max output current (-12V) | 0.5 |
| Max output current (+5Vsb) | 3 |
| Hold time | 25.3 |
| Efficiency | 91.8 |
| Power protection features | Over current,Over power,Over voltage,Overheating,Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 600 |
| Number of SATA power connectors | 9 |
| Number of PATA power connectors | 2 |
| SATA power cable length | 550,700,850,1000 |
| Peripheral (Molex) power cable length | 1000,850 |
| EPS power connector (8-pin) | Y |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 600 |
| CPU power cable length | 700 |
| Cabling type | Fully-Modular |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| Supported motherboard form factors | ATX,Micro ATX,Mini-ATX |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Noise level | 28.9 |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 135 |
| Number of fans | 1 |
| Fan speed | 0 - 2100 |
| On/off switch | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Packaging content | |
| Cables included | CPU,SATA |
| Cable tie(s) included | Y |
| Weight & dimensions | |
| Width | 150 |
| Depth | 160 |
| Height | 86 |
| Weight | 1850 |
| Packaging data | |
| Package width | 248 |
| Package depth | 328 |
| Package height | 102 |
| Package weight | 3560 |
| Package type | Box |
| Technical details | |
| Sustainability compliance | Y |
| Warranty period | 10 |
| Sustainability certificates | Triman,ENERGY STAR,ErP |
