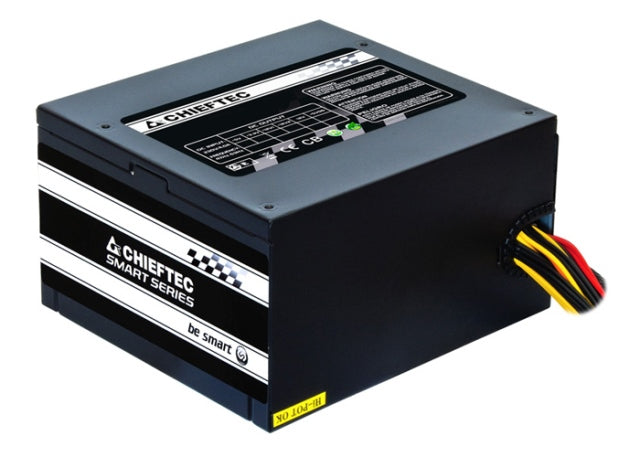

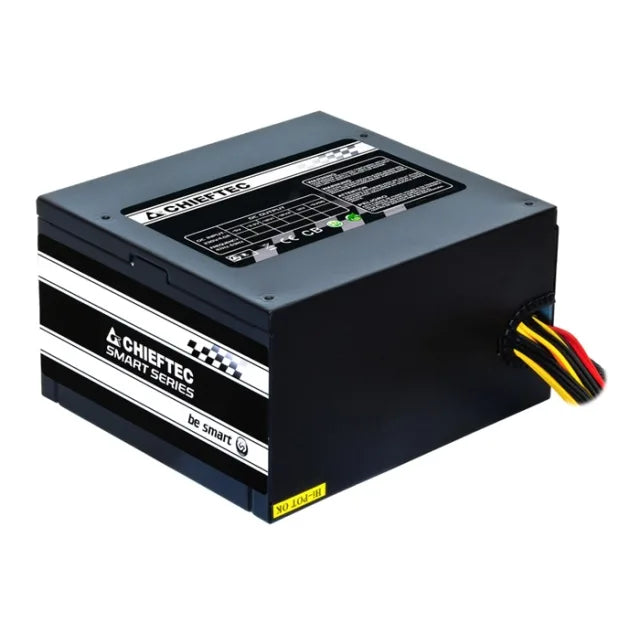

Chieftec Source SMART Series GPS-600A8, 600W, 1x 120 mm, PFC Active [ID 21741]
Chieftec Source SMART Series GPS-600A8, 600W, 1x 120 mm, PFC Active [ID 21741]
SKU:GPS-600A8
Description
Source SMART Series GPS-600A8, 600W, 1x 120 mm, PFC Active, efficiency >85%, UVP, OVP, SCP, OPP, OCP, OTP, AFC, 1x 20+4 Pin ATX, 1x 8 Pin EPS 12V, 2x 6 +2 PCI-E, 4x SATA, 2x Molex, 1x Floppy
Available
| Quantity | Delivery |
| 3 | 3 days |
| 50 | 6 days |
Couldn't load pickup availability
Description
Specifications
| Power | |
| Total power | 600 |
| AC input voltage | 230 |
| AC input frequency | 47 - 63 |
| Input current | 4.5 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 |
| Combined power (+5V) | 120 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 12.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V1) | 46 |
| Max output current (+5V) | 20 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 2.5 |
| Power protection features | Over voltage,Overload,Short circuit,Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| ATX version | 2.3 |
| Design | |
| Product colour | Black |
| Fan diameter | 120 |
| Weight & dimensions | |
| Width | 150 |
| Depth | 140 |
| Height | 87 |
