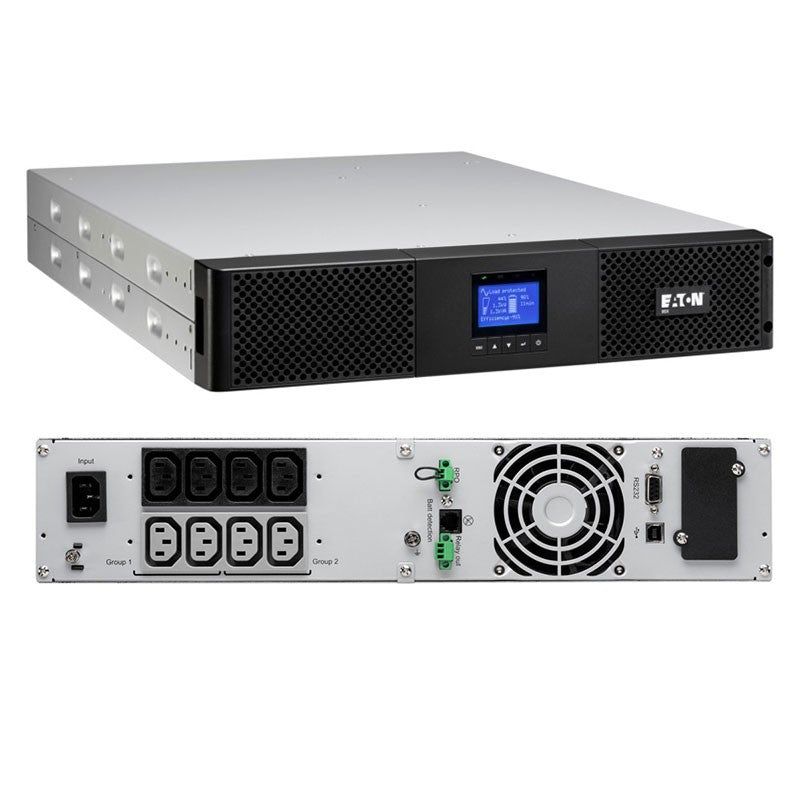

Eaton 9SX 1000i Rack2U, Online- Double Conversion with PFC system, 1000VA/900W [ID 30077]
Eaton 9SX 1000i Rack2U, Online- Double Conversion with PFC system, 1000VA/900W [ID 30077]
SKU:9SX1000IR
Description
9SX 1000i Rack2U, Online-DoubleConversion topology with PFC system, graphic LCD screen, 1000VA, 900W, input IEC C14 (10A), outputs 6x IEC C13 (10A), Eaton ABM battery management, USB ports, RS232, remote poweroff, slot for netcard/modbus/relay, backup 25min@300W, 14min@500W, 7min@800W (9SX1000IR)
Available
| Quantity | Delivery |
| 2 | 8 days |
Couldn't load pickup availability
Description
Specifications
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 |
| Output power | 900 |
| Input operation voltage (min) | 190 |
| Input operation voltage (max) | 276 |
| Input frequency | 40 - 70 |
| Output frequency | 50/60 |
| Maximum current | 10 |
| Noise level | 41 |
| Ports & interfaces | |
| AC outlet types | C13 coupler,C14 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 7 |
| USB port | Y |
| USB 2.0 ports quantity | 1 |
| Serial interface | Y |
| Serial interface type | RS-232 |
| Design | |
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 2U |
| Display type | LCD |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification | IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Weight & dimensions | |
| Width | 438 |
| Depth | 438 |
| Height | 86.5 |
| Weight | 15700 |
