Eaton

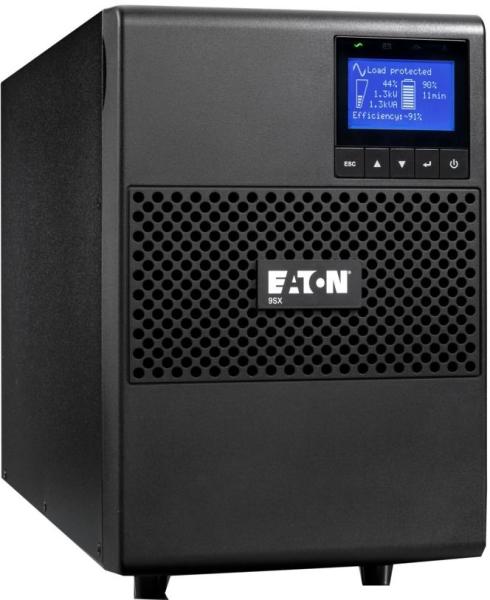

Eaton 9SX 3000I Tower - UPS Online double conversion 3000VA/27 [ID 24294]
Eaton 9SX 3000I Tower - UPS Online double conversion 3000VA/27 [ID 24294]
SKU:9SX3000I
Description
Eaton 9SX 3000I Tower - UPS Online double conversion 3000VA/2700W, Single-phase, Input connectors 1 x IEC-320 C20, Output connectors 8 x IEC 320 C13, USB interfaces, RS232, LCD control panel
Available
| Quantity | Delivery |
| 1 | 3 days |
Couldn't load pickup availability
Description
Specifications
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 |
| Output power | 2700 |
| Waveform | Pure sine |
| Input operation voltage (min) | 200 |
| Input operation voltage (max) | 276 |
| Input frequency | 40/70 |
| Output operation voltage (min) | 200 |
| Output operation voltage (max) | 240 |
| Output frequency | 50/60 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Power factor | 0.9 |
| ECO mode | N |
| Noise level | 45 |
| Ports & interfaces | |
| AC outlet types | C13 coupler,C19 coupler |
| Power plug | C20 coupler |
| AC outlets quantity | 9 |
| USB port | Y |
| USB 2.0 ports quantity | 1 |
| Serial interface | Y |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 15.5 |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Weight & dimensions | |
| Width | 214 |
| Depth | 412 |
| Height | 346 |
| Weight | 33400 |
| Packaging data | |
| Management card included | N |
| Bundled software | Intelligent Power Software suite |
| Other features | |
| Input connection type | IEC C20 |
| Nominal output voltage | 230 |
| Nominal input voltage | 230 |
