• Eaton 9SX5KIRT Eaton 9SX 5000i RT3U, 743172039347
1 1

Eaton

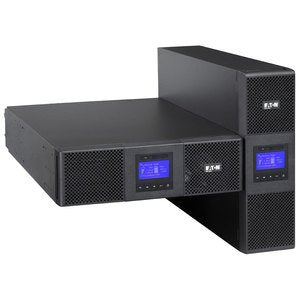

Eaton 9SX 5000i RT3U [ID 29335]

Eaton 9SX 5000i RT3U [ID 29335]

9SX5KIRT

Description

9SX5KIRT UPS Tower /Rack 3U, Online double conversion, output power: 5000 VA / 4500 W, frequency 50/60Hz, input voltage: 176-276V, output voltage: 200-240V, Efficiency 98% Crest Factor 3:1, Output connectors Hard Wire 2 x IEC 320 C19 / 8 x IEC 320 C13, USB interfaces, RS232, slot for netcard/modbus/relay, runtime 3 min (100%) / 13 min (50%), LCD control panel, Certificates: IEC /EN 62040-1, UL 1778, CSA 22.2 EMC Markings IEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3 (Performance), C-Tick Approvals CE, CB report (TUV), UL, without rack included in the package.

19.127,59 lei
19.127,59 lei
Redus Sold out
Tax included. Shipping calculated at checkout.

Available

Quantity Delivery
2. 3 2. 3 days
View full details

Description
9SX5KIRT UPS Tower /Rack 3U, Online double conversion, output power: 5000 VA / 4500 W, frequency 50/60Hz, input voltage: 176-276V, output voltage: 200-240V, Efficiency 98% Crest Factor 3:1, Output connectors Hard Wire 2 x IEC 320 C19 / 8 x IEC 320 C13, USB interfaces, RS232, slot for netcard/modbus/relay, runtime 3 min (100%) / 13 min (50%), LCD control panel, Certificates: IEC /EN 62040-1, UL 1778, CSA 22.2 EMC Markings IEC/EN 62040 -2 , FCC Class A, IEC/EN 62040-3 (Performance), C-Tick Approvals CE, CB report (TUV), UL, without rack included in the package.

Specifications
Features
Output power capacity 5
Output power 4500
Input operation voltage (min) 176
Input operation voltage (max) 276
Input frequency 50/60
Output operation voltage (min) 200
Output operation voltage (max) 240
Efficiency 98
Crest factor 3:1
Output voltage Total Harmonic Distortion (THD) 2
Input current Total Harmonic Distortion (THD) 5
Noise level 45
Ports & interfaces
AC outlet types C13 coupler,C19 coupler
AC outlets quantity 10
USB 2.0 ports quantity 1
RS-232 ports 1
Design
Form factor Rackmount/Tower
Product colour Black
Display type LCD
Safety IEC/EN 62040-1, UL 1778, CSA 22.2
Certification IEC/EN 62040 -2, FCC Class A, IEC/EN 62040-3 CE, CB (TUV), UL
Operational conditions
Operating temperature (T-T) 0 - 40
Weight & dimensions
Width 130
Depth 685
Height 440
Weight 48000
Other features
Output connections 8 x IEC-320-C13 & 2 x IEC-320-C19
Nominal output voltage 200-240
Nominal input voltage 200-240
