Eaton

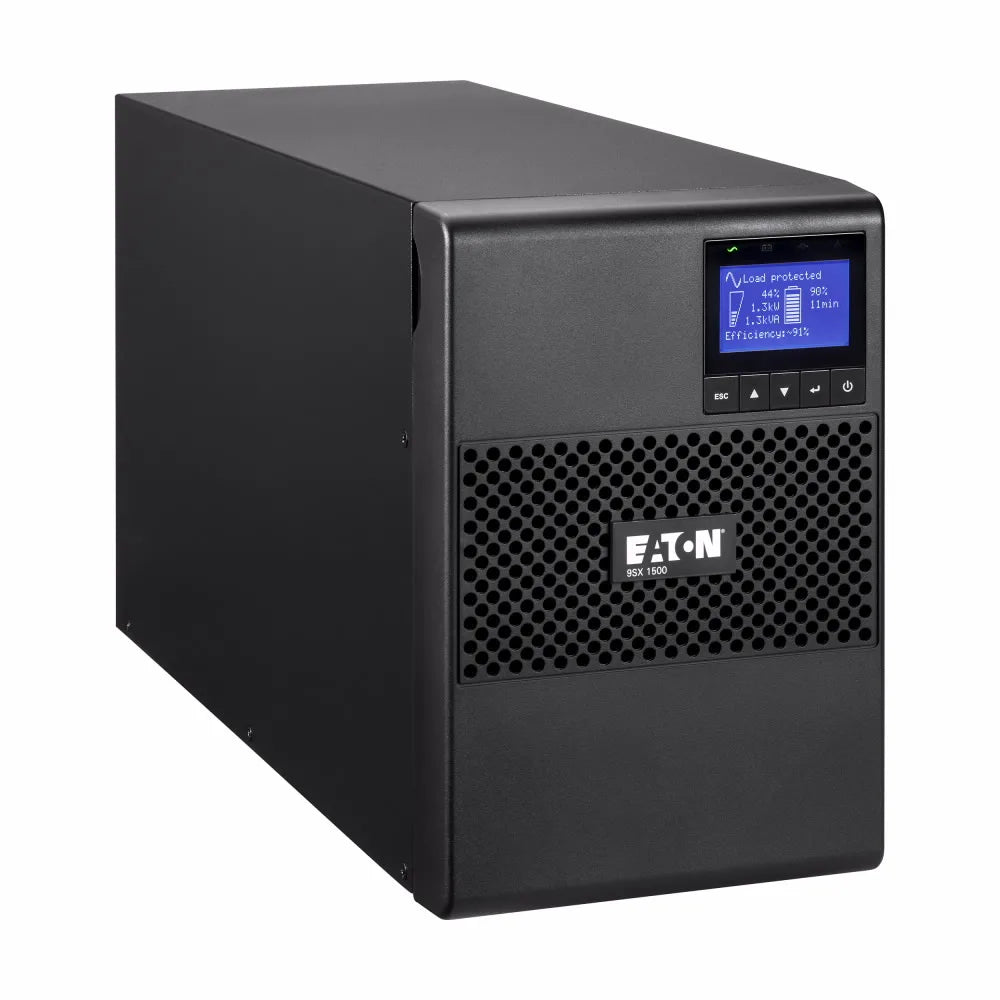

Eaton UPS 9SX 1500i Tower, Online-Double Conversion (9SX1500I) [ID 26283]
Eaton UPS 9SX 1500i Tower, Online-Double Conversion (9SX1500I) [ID 26283]
SKU:9SX1500I
Description
UPS 9SX 1500i Tower, Online-DoubleConversion topology with PFC system, graphic LCD screen, 1500VA, 1350W, IEC C14 (10A) input, 6x IEC C13 (10A) outputs, Eaton ABM® battery management, USB ports, RS232, remote poweroff , slot for netcard/modbus/relay, backup 12min@800W, 7min@1200W, expandable with 9SXEBM48T, automatic EBM recognition Eaton 9SX 1500i Tower, Online-DoubleConversion topology with PFC system, graphic LCD screen, 1500VA, 1350W, IEC C14 input ( 10A), 6x IEC C13 (10A) outputs, Eaton ABM® battery management, USB ports, RS232, remote poweroff, slot for netcard/modbus/relay, backup 12min@800W, 7min@1200W, expandable with 9SXEBM48T, automatic EBM recognition
Available
| Quantity | Delivery |
| 2 | 3 days |
Couldn't load pickup availability
Description
Specifications
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1.5 |
| Output power | 1350 |
| Waveform | Pure sine |
| Input operation voltage (min) | 190 |
| Input operation voltage (max) | 276 |
| Input frequency | 40/70 |
| Output operation voltage (min) | 200 |
| Output operation voltage (max) | 240 |
| Output frequency | 50/60 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Power factor | 0.9 |
| ECO mode | N |
| Noise level | 43 |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 |
| USB port | Y |
| USB 2.0 ports quantity | 1 |
| Serial interface | Y |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 16 |
| Hot-swap battery | Y |
| Automatic battery test | Y |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Safety | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Weight & dimensions | |
| Width | 160 |
| Depth | 437 |
| Height | 252 |
| Weight | 24500 |
| Packaging data | |
| Management card included | N |
| Bundled software | Intelligent Power Software suite |
| Other features | |
| Input connection type | IEC C14 |
| Nominal output voltage | 230 |
| Nominal input voltage | 230 |
