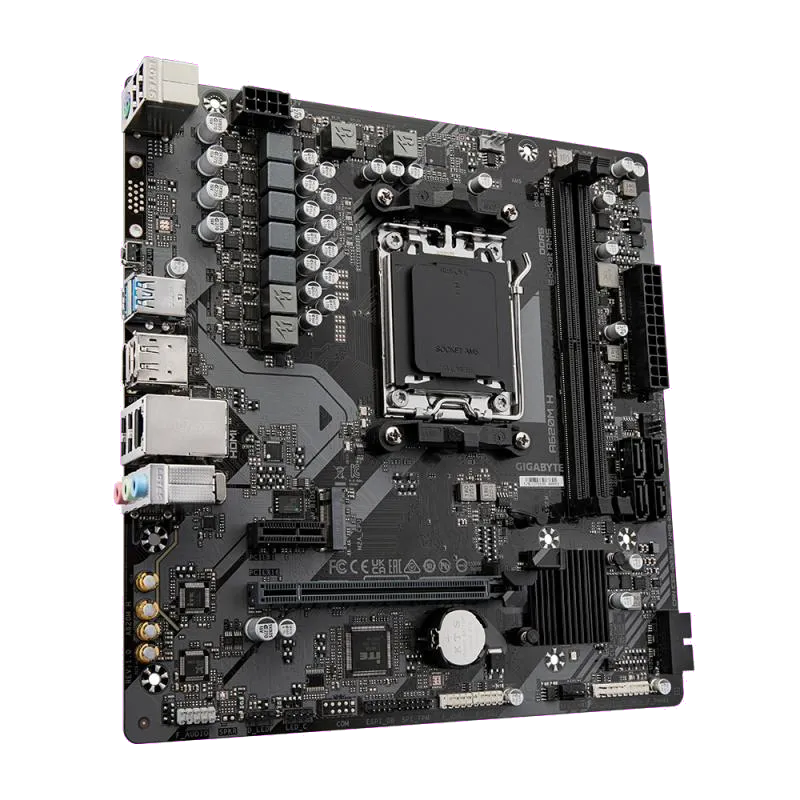

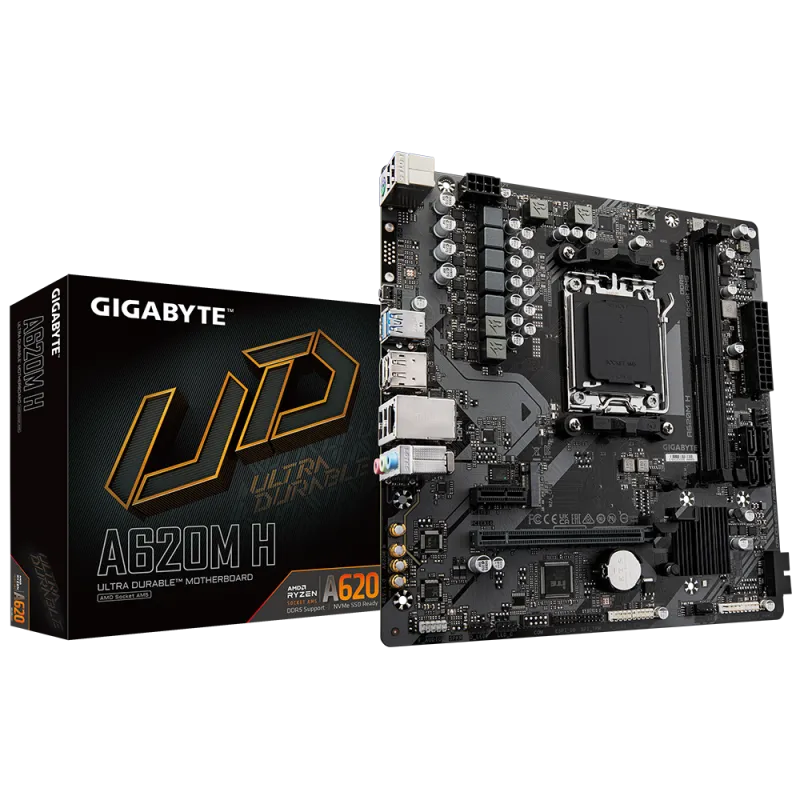

Gigabyte Placa de baza A620M H AM5, 2x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCI [ID 40224]
Gigabyte Placa de baza A620M H AM5, 2x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCI [ID 40224]
SKU:A620M H
Description
Placa de baza A620M H AM5, 2x DDR5, 1x DisplayPort, 1x HDMI, 1x PCIe x16, 1x PCIe x1, 1x M.2, 4x SATA 6Gbps, mATX
Available
| Quantity | Delivery |
| 12 | 2 days |
| 31 | 8 days |
Couldn't load pickup availability
Description
Collapse
Specifications
Expand
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 96 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6800,7200 |
| Supported memory clock speed (max) | 7200 |
| Maximum internal memory | 96 |
| Supported memory module capacities | 1GB,2GB,4GB,8GB,12GB,16GB,32GB,48GB |
| Unbuffered memory | Y |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 5 |
| RAID support | Y |
| RAID levels | 0,1,10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 |
| HDCP | Y |
| DirectX version | 12.0 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| TPM connector | Y |
| 12V power connector | Y |
| RGB LED pin header | Y |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 3 |
| Microphone in | Y |
| USB connector type | USB Type-A,USB Type-C |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | N |
| Features | |
| Component for | PC |
| Motherboard form factor | Micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Audio output channels | 7.1 |
| Product colour | Brown |
| PC health monitoring | FAN,Temperature,Voltage,Water cooling |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| Expansion slots | |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Packaging data | |
| Package width | 265 |
| Package depth | 265 |
| Package height | 54 |
| Package weight | 897 |
| Battery | |
| Battery weight | 3 |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Weight & dimensions | |
| Width | 230 |
| Depth | 225 |
| Height | 35 |
| Packaging content | |
| Cables included | SATA |
| Batteries included | Y |
| Bundled software | Norton Internet Security LAN bandwidth management software |
| Technical details | |
| Warranty period | 3 |
