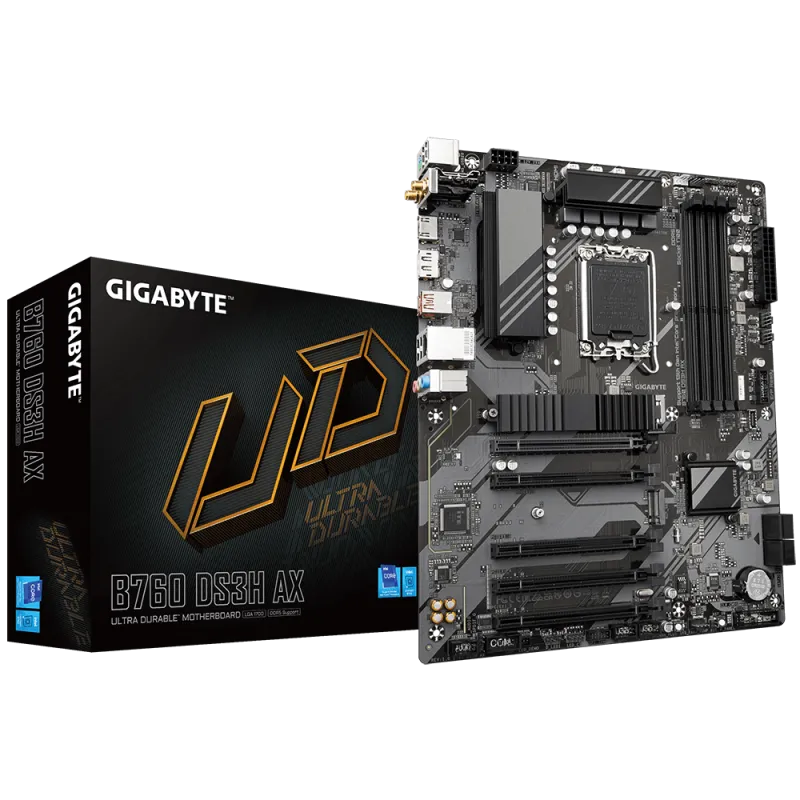

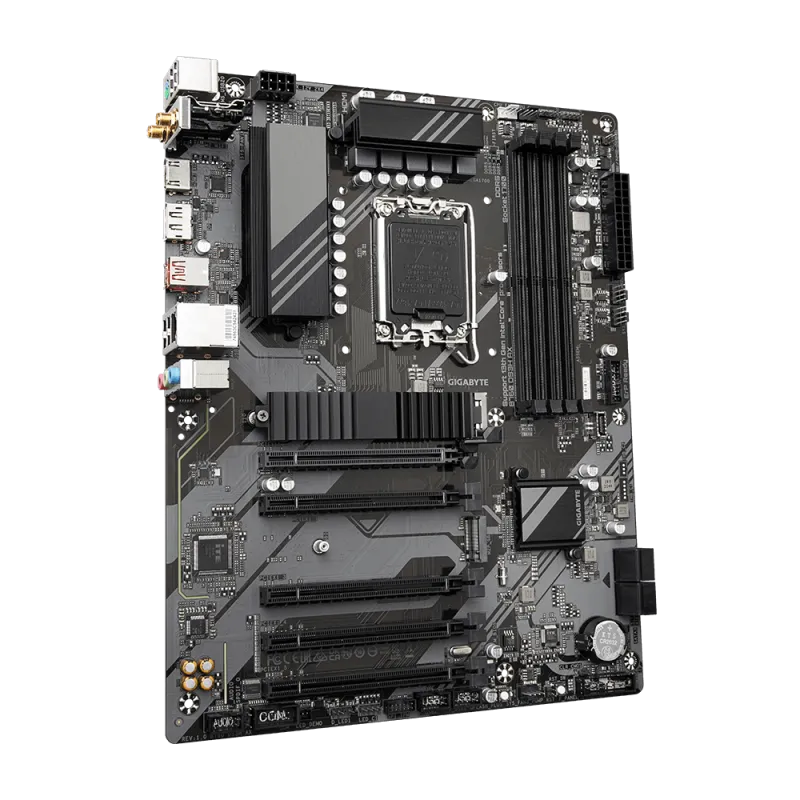

Gigabyte Placa de baza B760 DS3H AX LGA1700, 4x DDR5 7600MHz, 1x HDMI, 1x DisplayPort [ID 40226]
Gigabyte Placa de baza B760 DS3H AX LGA1700, 4x DDR5 7600MHz, 1x HDMI, 1x DisplayPort [ID 40226]
SKU:B760 DS3H AX
Description
Placa de baza B760 DS3H AX LGA1700, 4x DDR5 7600MHz, 1x HDMI, 1x DisplayPort, 5x PCIe x16, 2x M.2, 4x SATA 6Gbps, LAN 1Gbps, WIFI 6E, ATX
Available
| Quantity | Delivery |
| 48 | 2 days |
| 20 | 8 days |
Couldn't load pickup availability
Description
Collapse
Specifications
Expand
| Processor | |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold |
| Supported processor sockets | LGA 1700 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600 |
| Supported memory clock speed (max) | 7600 |
| Maximum internal memory | 256 |
| Unbuffered memory | Y |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 |
| HDCP | Y |
| DirectX version | 12.0 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| S/PDIF out connector | Y |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| EPS power connector (8-pin) | Y |
| TPM connector | Y |
| Serial port headers | 1 |
| 12V power connector | Y |
| RGB LED pin header | Y |

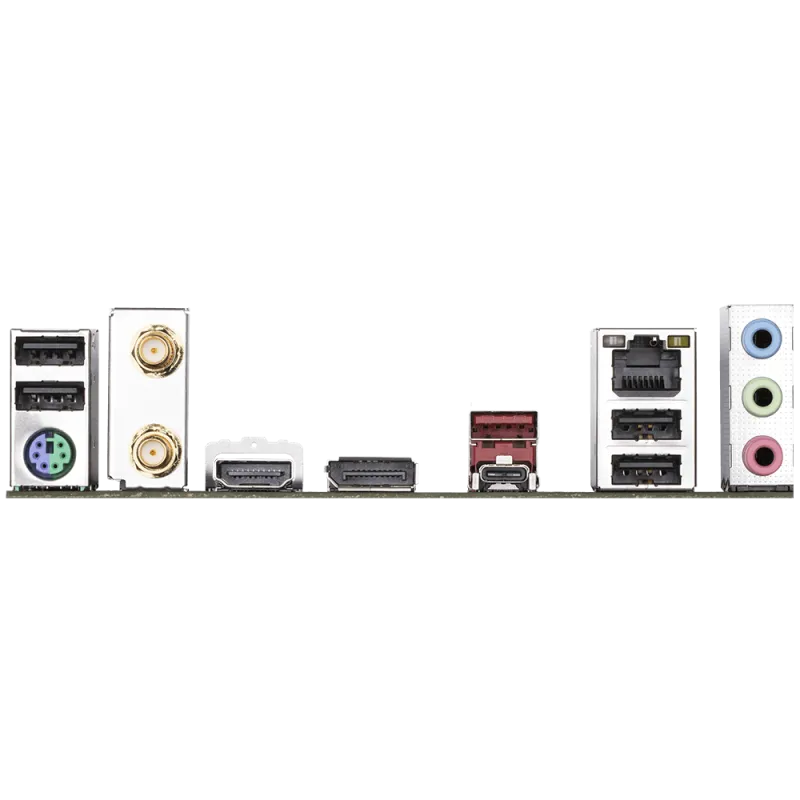

| Rear panel I/O ports | |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DVI-D ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Headphone outputs | 3 |
| Microphone in | Y |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A,USB Type-C |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Bluetooth | Y |
| Bluetooth version | 5.3 |
| Features | |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Audio output channels | 7.1 |
| Product colour | Brown |
| PC health monitoring | FAN,Temperature,Voltage,Water cooling |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64,Windows 11 x64 |
| Expansion slots | |
| PCI Express x16 slots | 5 |
| Number of M.2 (M) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 |
| ACPI version | 5.0 |
| Clear CMOS jumper | Y |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Packaging data | |
| Package width | 335 |
| Package depth | 270 |
| Package height | 80 |
| Package weight | 1576 |
| Battery | |
| Battery weight | 3 |
| Lithium weight per battery | 0.07 |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Weight & dimensions | |
| Width | 305 |
| Depth | 244 |
| Height | 35 |
| Packaging content | |
| Cables included | SATA |
| Batteries included | Y |
| Bundled software | Norton Internet Security |
| Technical details | |
| Warranty period | 3 |
