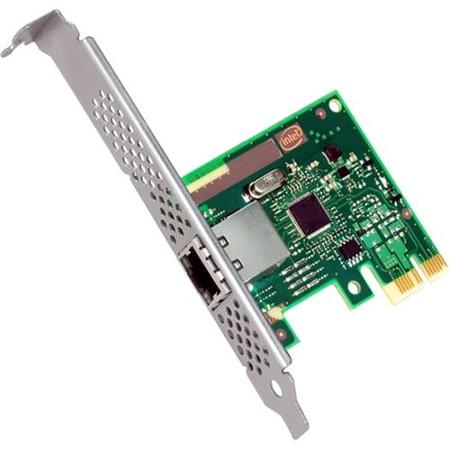

Intel Ethernet Server Adapter I210-T1 Single-Port 1G Ethernet [ID 18819]
Intel Ethernet Server Adapter I210-T1 Single-Port 1G Ethernet [ID 18819]
SKU:I210T1BLK
Description
Ethernet Server Adapter I210-T1 (Single-Port 1G Eth., Audio-Video-Bridging (AVB), PCIe2.1 2.5GT/s, MDI/MDI-X, APM, ACPI 2.0c, PXE, iSCSI Remote Boot, ECC Packet Buffers, FH & LP brackets), bulk
Available
| Quantity | Delivery |
| 404 | 8 days |
Couldn't load pickup availability
Description
Specifications
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 2.1 |
| Network | |
| Maximum data transfer rate | 1000 |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000BaseT(X) |
| Maximum operating distance | 100 |
| LAN controller | Intel I210 |
| Design | |
| Internal | Y |
| Other features | |
| Cable type | RJ45 Category 5, up to 100 m |
| Market segment | Server |
| Thermal power | 1 |
| Intel Virtual Machine Device Queues (VMDq) | N |
| PCI-SIG* SR-IOV Capable | N |
| On-chip QoS and Traffic Management | N |
| Intel Flexible Port Partitioning | N |
| Low halogen options available | N |
| Intelligent Offloads | Y |
| iWARP/RDMA | N |
| Fiber Channel over Ethernet | N |
| Intel Ethernet Power Management | Y |
| Intel Data Direct I/O Technology | N |
| Interface type | PCIe v2.1 (2.5 GT/s) |
| Conflict-Free | Y |
| Product type | Network Interface Card |
| Thermal Design Power (TDP) | 1 |
| Ethernet adapter ARK ID | 68668 |
| Export Control Classification Number (ECCN) | 5A991 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller type | Intel I210 |
| Cabling type | RJ45 Category 5, up to 100 m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Speed & slot width | 2.5 GT/s, x1 Lane |
| Processor family | Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE) |
| Launch date | Q1'13 |
| Network interface card cable medium | Copper |
| Network interface card type | Server |
| Product brief URL | http://www.intel.com/content/www/us/en/network-adapters/gigabit-network-adapters/ethernet-server-adapter-i210-brief.html |
| Status | Launched |
| Last change | 63903513 |
| Product family | Intel Gigabit server adapter |
| Product series | Intel I210 |
