j5create
j5create Thunderbolt 4 Quad Display Docking Station-EU (41349)
j5create Thunderbolt 4 Quad Display Docking Station-EU (41349)
SKU:JTD568-EN
Description
Thunderbolt 4 Quad Display Docking Station-EU, 1 x USB-C Power Delivery 98W (Host), 2 x HDMI 2.1, 2 x DisplayPort 1.4, 1 x USB-C 10Gbps, 3 x USB 3.2 Type-A Gen 2 10Gbps, 2 x USB 3.2 Type-A Gen 1 5Gbps, 1 x USB 2.0 Type-A with BC1.2, 1 x SD/microSD 4.0 UHS-II 312 MB/s memory card reader/writer, 1 x 3.5 mm combo audio jack, 1 x RJ45 2.5 Gigabit Ethernet
Couldn't load pickup availability
Description
Specifications
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Y |
| USB Power Delivery up to | 98 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | N |
| Combo headphone/mic port | Y |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Y |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000,2500 |
| Performance | |
| Product colour | Grey |
| Colour name | Dark / Space Grey |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),SD |
| Data transfer rate | 10 |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7860 x 4320 |
| Maximum refresh rate | 240 |
| Number of displays supported | 4 |

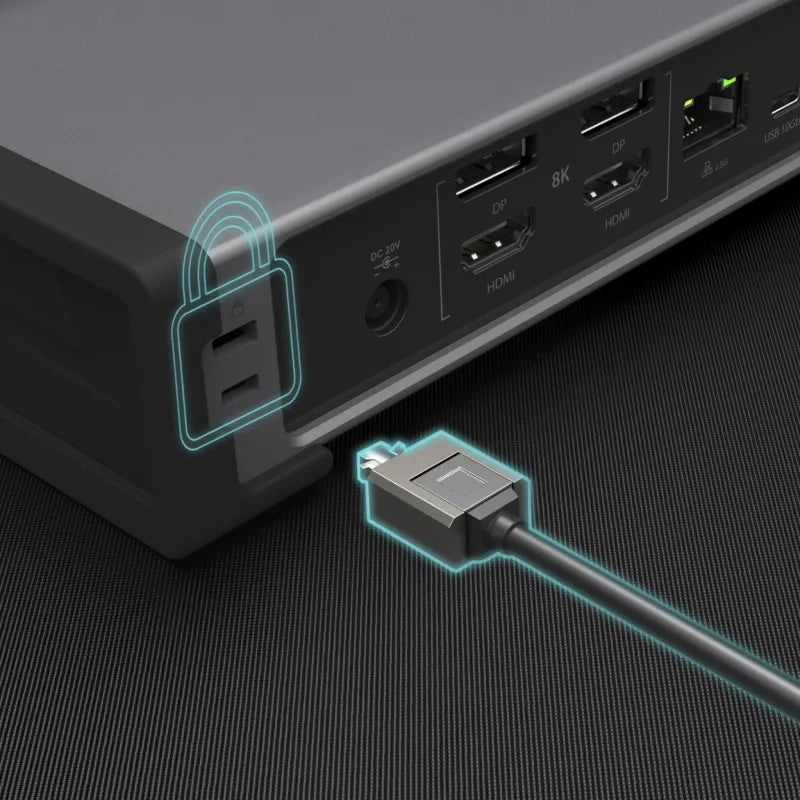

| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| On/off switch | Y |
| LED indicators | Y |
| Charging function | Y |
| Housing material | Aluminium |
| Country of origin | Taiwan |
| Power | |
| Power source type | DC |
| Input current | 6.75 |
| Power supply | 135 |
| Compatible power plug types | EU |
| Thunderbolt 4 cable length | 0.8 |
| Software | |
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 48 |
| Storage temperature (T-T) | -10 - 65 |
| Operating relative humidity (H-H) | 0 - 85 |
| Storage relative humidity (H-H) | 0 - 85 |
| Sustainability | |
| Sustainability compliance | Y |
| Weight & dimensions | |
| Width | 201 |
| Depth | 109 |
| Height | 43 |
| Weight | 681 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 122 |
| Package depth | 237 |
| Package height | 94 |
| Package weight | 1667 |
| Packaging content | |
| Cables included | Thunderbolt |
| AC adapter included | Y |
| Quick start guide | Y |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 24712795088308 |
| Warranty period | 2 |
