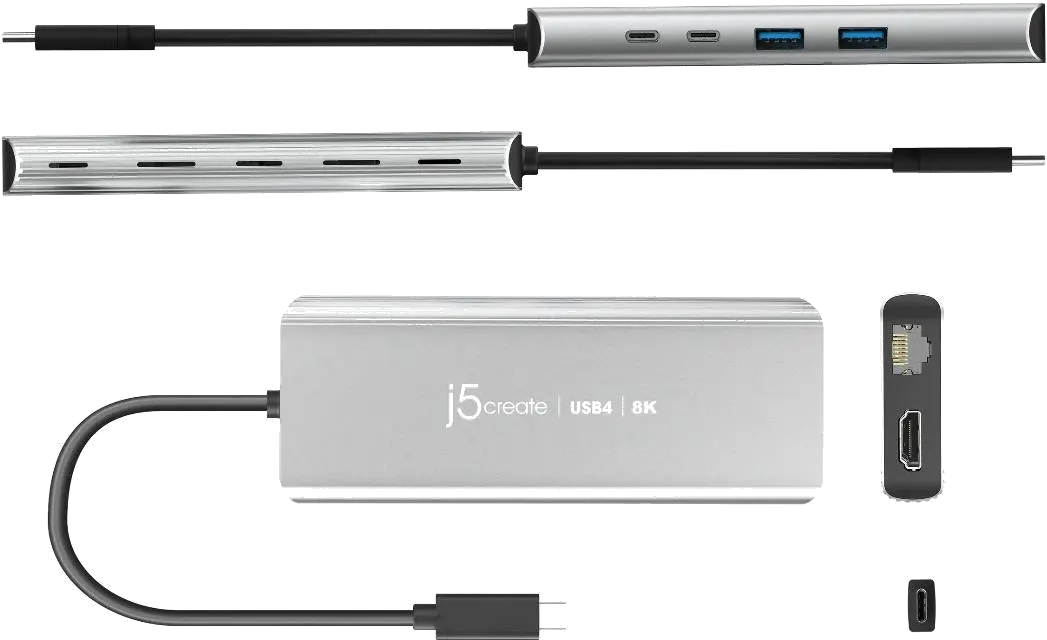

j5create USB4 8K MULTI-PORT HUB SPACE/GRAY [ID 32748]
j5create USB4 8K MULTI-PORT HUB SPACE/GRAY [ID 32748]
SKU:JCD403-N
Description
USB4 8K MULTI-PORT HUB SPACE/GRAY
Available
| Quantity | Delivery |
| 75 | 8 days |
Couldn't load pickup availability
Description
Specifications
| Ports & interfaces | |
| Ports quantity | 6 |
| Host interface | USB Type-C |
| Hub interfaces | HDMI,RJ-45,USB 3.2 Gen 2 (3.1 Gen 2) Type-A,USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| I/O ports | 1- USB-C 3.2 Gen2 10Gbps data transmission 1- USB-C power delivery 3.0 100W 2- USB Type-A 3.2 Gen2 10Gbps data transmission 1- 8K HDMI 1- RJ45 2.5 Gigabit Ethernet |
| Features | |
| Data transfer rate | 10000 |
| Supported graphics resolutions | 3840 x 2160,7680 x 4320 |
| Maximum resolution (HDMI) | 7680 x 4320 |
| Product colour | Grey |
| Housing material | Aluminium |
| USB Power Delivery up to | 100 |
| USB Power Delivery revision | 3.0 |
| Number of displays supported | 1 |
| HD type | 8K Ultra HD |
| Cable type | Round cable |
| Country of origin | Taiwan |
| Plug and Play | Y |
| Compatible products | Available Thunderbolt 4, Thunderbolt 3, USB4, and USB-C host laptops. GPU and video source: DisplayPort 1.4 alt mode with DSC supports 8K 60 Hz or 4K 144Hz. DisplayPort 1.4 alt mode without DSC supports 8K 30 Hz or 4K 120 Hz. * DSC = VESA Display Stream Compression (DSC) Standard. Only available on NVIDIA GeForce RTX 20 Series and AMD Radeon RX 6000 Series GPUs or above. * Recommended Graphics Cards: Intel HD Graphics 620, Intel' HD Graphics 520 or above. * Notes: Macs supports up to 4K 60Hz on an 8K HDMI display. |
| Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500 |
| Power | |
| Power supply type | USB/AC |
| Power supply | 100 |
| Input voltage | 20 |
| Input current | 5 |
| Output voltage | 20 |
| Output current | 4.75 |
| Power plug type | Type C |
| System requirements | |
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Weight & dimensions | |
| Width | 51 |
| Depth | 15 |
| Height | 135 |
| Weight | 109 |
| Packaging content | |
| AC adapter included | N |
| Quick start guide | Y |
| Packaging content | 1 - JCD403 USB4 8K Multi-Port Hub 1 - Quick Installation Guide (QIG) |
| Operational conditions | |
| Operating temperature (T-T) | -1 - 41 |
| Operating temperature (T-T) | 30 - 116 |
| Storage temperature (T-T) | -17 - 68 |
| Operating relative humidity (H-H) | 0 - 85 |
| Storage relative humidity (H-H) | 0 - 85 |
| Technical details | |
| Warranty period | 2 |
