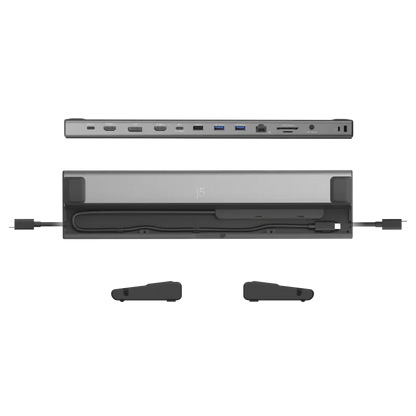

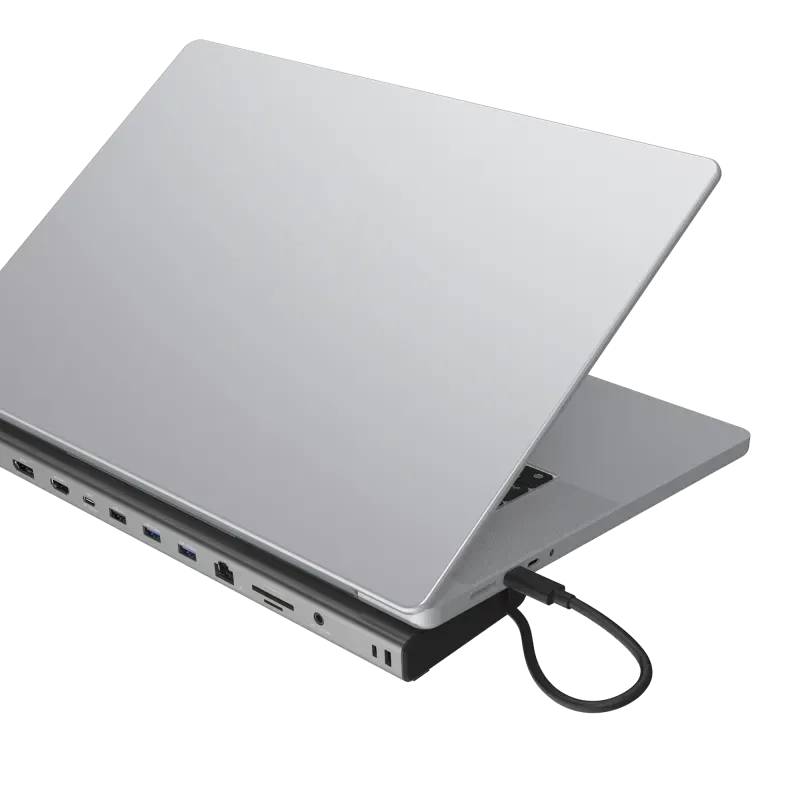

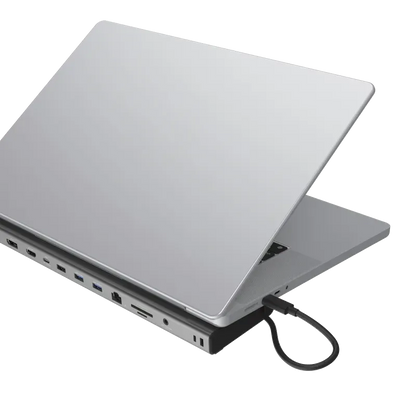

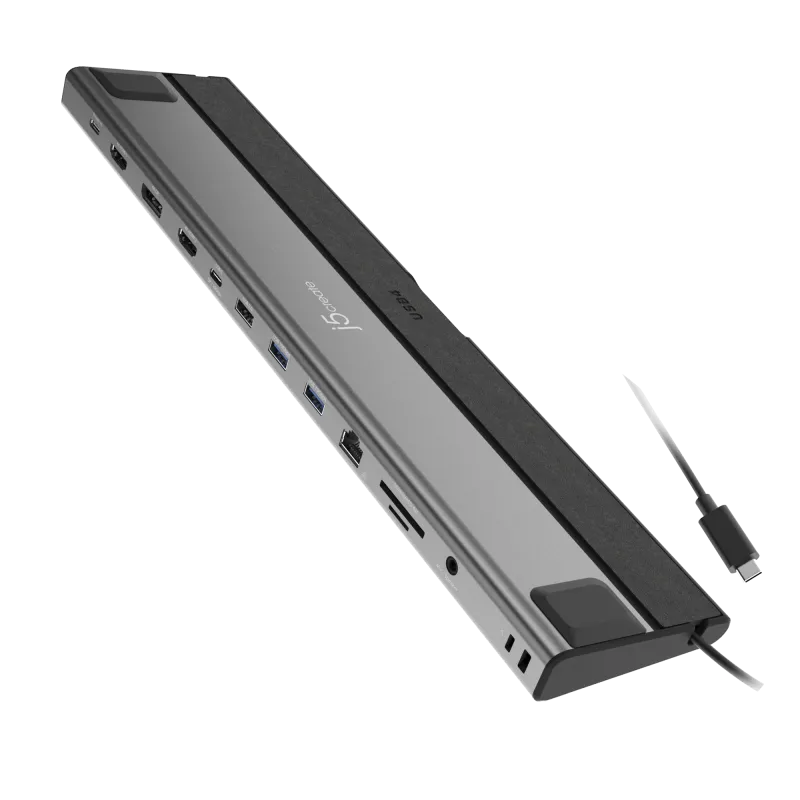

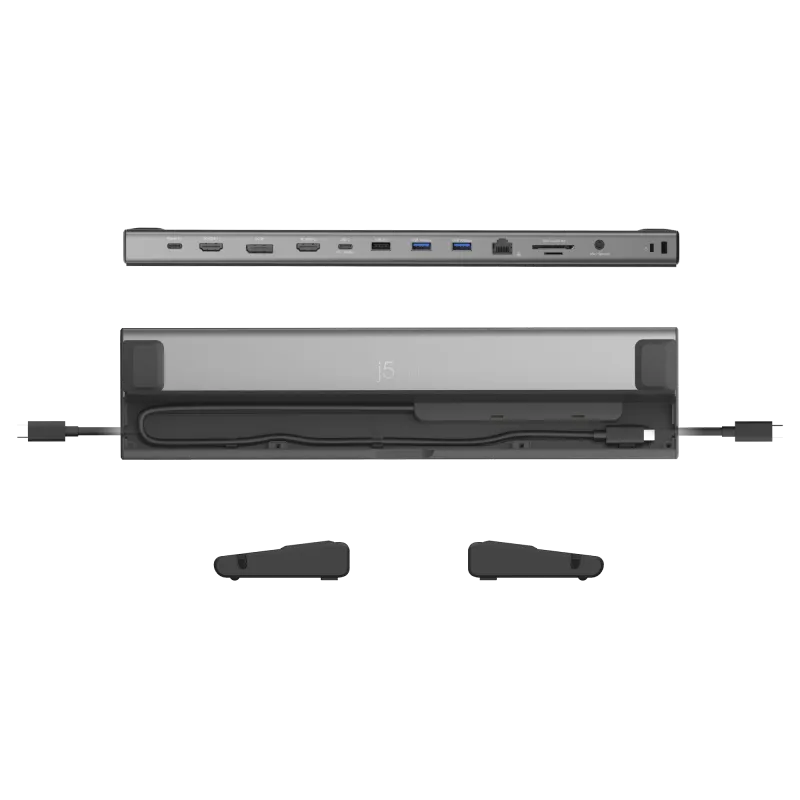

j5create USB4 Triple 4K Display Docking Station (41346)
MPN:JCD554-N
Description
Specifications
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Y |
| USB Power Delivery up to | 85 |
View all specifications (+51)
| USB Power Delivery revision | 3.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Microphone in | Y |
| Combo headphone/mic port | Y |
| Headphone outputs | 1 |
| USB Type-C DisplayPort Alternate Mode | Y |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 |
| Performance | |
| Product colour | Black,Grey |
| Card reader integrated | Y |
| Compatible memory cards | MicroSD (TransFlash),SD |
| Data transfer rate | 10 |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 |
| Maximum refresh rate | 144 |
| Number of displays supported | 3 |
| Cable lock slot | Y |
| Cable lock slot type | Kensington |
| Display modes | Extended,Mirror |
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Housing material | Aluminium |
| Plug and Play | Y |
| Country of origin | Taiwan |
| Power | |
| Power source type | USB |
| Input current | 3 |
| Output voltage | 20 |
| Output current | 4.25 |
| Power consumption (typical) | 4.5 |
| Power plug type | Type C |
| Software | |
| Windows operating systems supported | Y |
| Mac operating systems supported | Y |
| Operational conditions | |
| Operating temperature (T-T) | -1 - 41 |
| Storage temperature (T-T) | -17 - 68 |
| Operating relative humidity (H-H) | 0 - 85 |
| Storage relative humidity (H-H) | 0 - 85 |
| Sustainability | |
| Sustainability compliance | Y |
| Weight & dimensions | |
| Width | 344 |
| Depth | 23.56 |
| Height | 81.39 |
| Weight | 463 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 88.3 |
| Package depth | 358 |
| Package height | 28 |
| Package weight | 574 |
| Packaging content | |
| Quick start guide | Y |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 24712795088186 |
| Warranty period | 2 |
| Other features | |
| Cable length | 0.5 |
