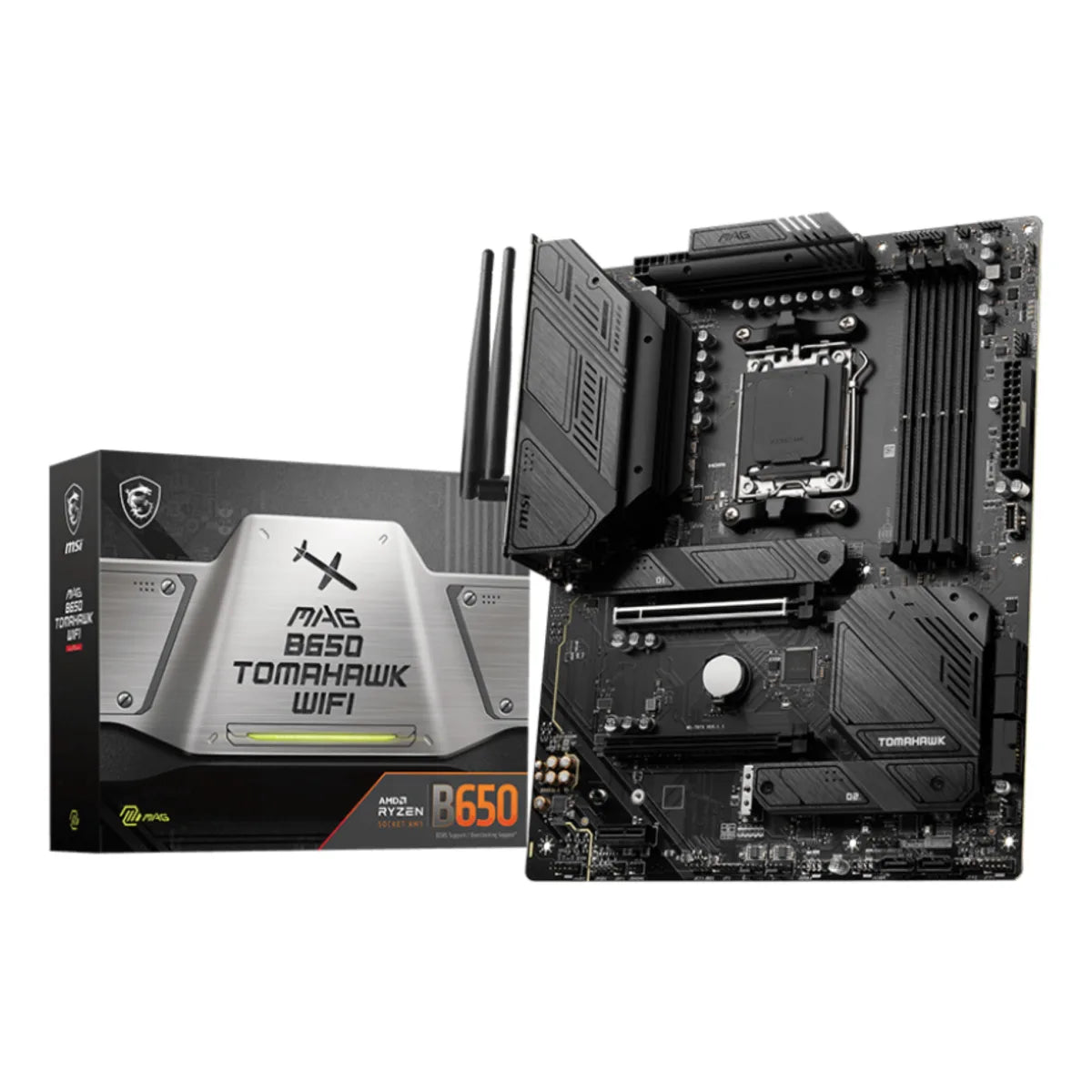

MSI Motherboard MAG B650 TOMAHAWK WIFI AMD Socket AM5 DDR5 up to 128GB [ID 33342]
MSI Motherboard MAG B650 TOMAHAWK WIFI AMD Socket AM5 DDR5 up to 128GB [ID 33342]
SKU:MAG B650 TOMAHAWK WIFI
Description
Motherboard MAG B650 TOMAHAWK WIFI AMD Socket AM5 DDR5 up to 128GB 2xPCIe x16 6xSATA ATX
Available
| Quantity | Delivery |
| 91 | 3 days |
Couldn't load pickup availability
Description
Specifications
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| ECC | N |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600 |
| Maximum internal memory | 128 |
| Storage controllers | |
| Supported storage drive interfaces | M.2,SATA |
| RAID support | Y |
| RAID levels | 0,1,10 |
| Internal I/O | |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Y |
| Front panel connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Chassis intrusion connector | Y |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Y |
| S/PDIF out port | Y |
| Network | |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125B |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6E (802.11ax) |
| Bluetooth | Y |
| Bluetooth version | 5.2 |
| Features | |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio chip | Realtek ALC4080 |
| Audio output channels | 7.1 |
| Product colour | Black |
| PC health monitoring | FAN |
| Windows operating systems supported | Windows 11 x64 |
| Expansion slots | |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| Weight & dimensions | |
| Width | 304.8 |
| Depth | 243.84 |
