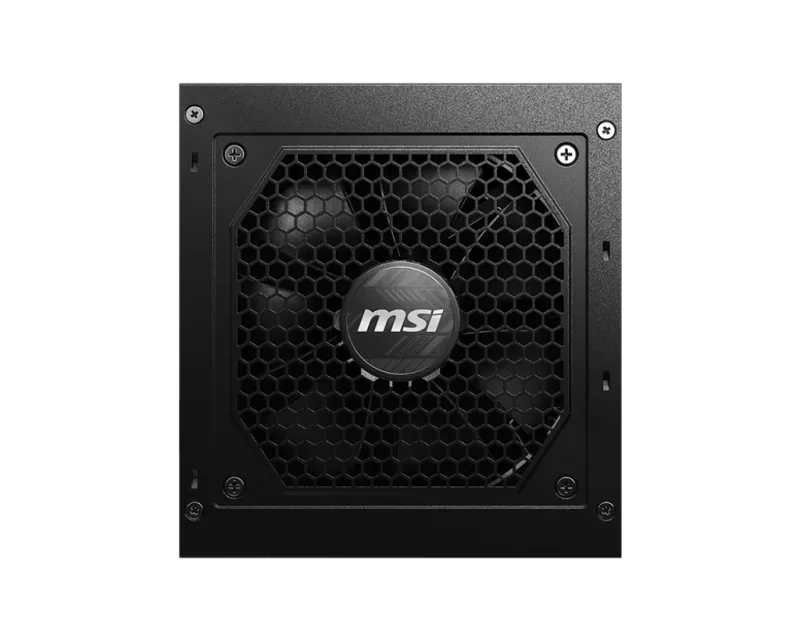

MSI MSI MAG A650GL Power Supply, 650W, 80+ Gold [ID 38655]
MSI MSI MAG A650GL Power Supply, 650W, 80+ Gold [ID 38655]
SKU:MAG A650GL
Description
MAG A650GL power supply, 650W, 80+ Gold
Available
| Quantity | Delivery |
| 34 | 2 days |
Couldn't load pickup availability
Description
Collapse
Specifications
Expand
| Power | |
| Total power | 650 |
| AC input voltage | 100 - 240 |
| Maximum input current (@110V) | 10 |
| Maximum input current (@220V) | 5 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 |
| Combined power (+12V) | 648 |
| Combined power (+5V) | 100 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 12.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V) | 54 |
| Max output current (+5V) | 20 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 20 |
| Efficiency | 90 |
| Power protection features | Over current,Over power,Over voltage,Short circuit |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | N |
| EPS power connector (4+4 pin) | Y |
| PCI Express power connectors (6-pin) | 0 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12-pin) | 0 |
| PCI Express power connectors (8-pin) | 0 |
| PCI Express power connectors (12+4 pin) | 0 |
| CPU power connector (4+4 pin) | Y |
| ATX Power connector (24-pin) | N |
| ATX power connector (20+4 pin) | Y |
| Floppy disk drive connector | N |
| Cabling type | Fully-Modular |
| Performance | |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Design | |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 |
| Number of fans | 1 |
| Illumination | N |
| On/off switch | Y |
| Weight & dimensions | |
| Width | 150 |
| Depth | 140 |
| Height | 86 |
