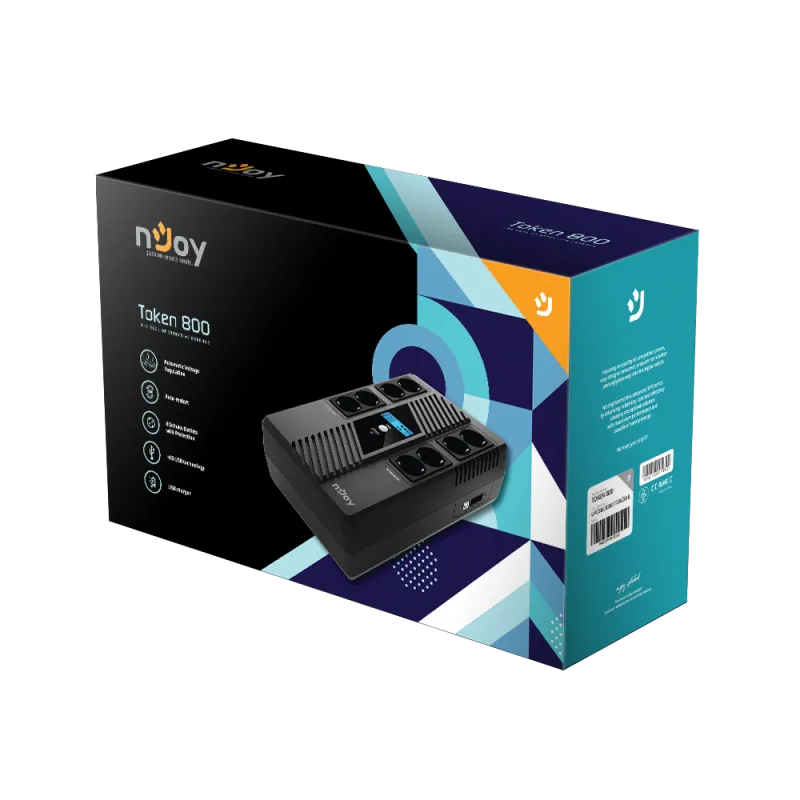

nJoy UPS NJOY Token 800 VA / 480 W [ID 31919]
nJoy UPS NJOY Token 800 VA / 480 W [ID 31919]
SKU:UPCSBLS680TTOAZ01B
Description
UPS Token 800 VA / 480 W Capacity 800 VA / 480 W Type Line-Interactive Input Nominal Voltage 230 VAC Accepted Voltage Range 170 – 280 VAC Frequency Range 50Hz / 60Hz (Auto Sensing) Output Nominal Voltage 230 VAC Accepted Voltage range 230 VAC, + /- 10% Frequency Range (Batt. Mode) 50 Hz / 60Hz ± 1% Power Factor 0.6 @ nominal voltage (100% load) Waveform (Batt. Mode) Simulated Sinewave Transfer Time 6ms typical Indicators type LCD Standby mode, AC mode Overload mode, Battery mode Self-Test mode Battery replacement mode Fault Mode Alarm Battery mode, Overload mode, Low battery, Fault mode Protection Outlets type 4x Schuko Battery Backup 4x Schuko Surge Protection RJ45 protection with 1Gb/s Full protection Overload, discharge, and overcharge protection Environment Noise level Fanless Humidity 0-90 % (non-condensing) Temperature 0-40ºC Battery Battery Type & Number 1x GP09122F (PN: BTVACIUOCTA2FCN01B) Typical Recharge Time 6~8 hours recover to 90% capacity Running time on battery (minutes) 25% Load - 15min 50% Load - 2min 30s 75% Load - 0min 48s Management Communication port HID USB Software https://www.power-softwaredownload. com/viewpower.html USB Charger 5V/2.1A Physical Product dimensions 345 x 200 x 100 mm Product weight 5.8 kg Retail pack dimensions 425 x 146 x 269 mm Retail pack
Available
| Quantity | Delivery |
| 10 | 2 days |
Couldn't load pickup availability
Description
Collapse
Specifications
Expand
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 0.8 |
| Output power | 480 |
| Waveform | Sine |
| Input operation voltage (min) | 170 |
| Input operation voltage (max) | 280 |
| Input frequency | 50/60 |
| Output operation voltage (max) | 230 |
| Output voltage regulation | -10 - 10 |
| Automatic Voltage Regulation (AVR) | Y |
| Response time | 6 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Power factor | 0.6 |
| Surge protection | Y |
| Surge protection features | Network |
| Power protection features | Battery discharge,Overcharge,Overload |
| Auto-restart | Y |
| Ports & interfaces | |
| AC outlet types | Type F |
| Power plug | Type F |
| AC outlets quantity | 8 |
| USB port | Y |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Battery | |
| Number of batteries supported | 1 |
| Typical backup time at half load | 2.5 |
| Battery recharge time | 8 |
| Cold start | Y |
| Replacement battery cartridge | GP09122F |
| Design | |
| Form factor | Compact |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 0 - 90 |
| Technical details | |
| Sustainability compliance | Y |
| Weight & dimensions | |
| Width | 200 |
| Depth | 345 |
| Height | 100 |
| Weight | 5800 |
| Package width | 269 |
| Package depth | 425 |
| Package height | 146 |
| Package weight | 6200 |
| Package type | Box |
| Packaging data | |
| Cables included | USB cable |
