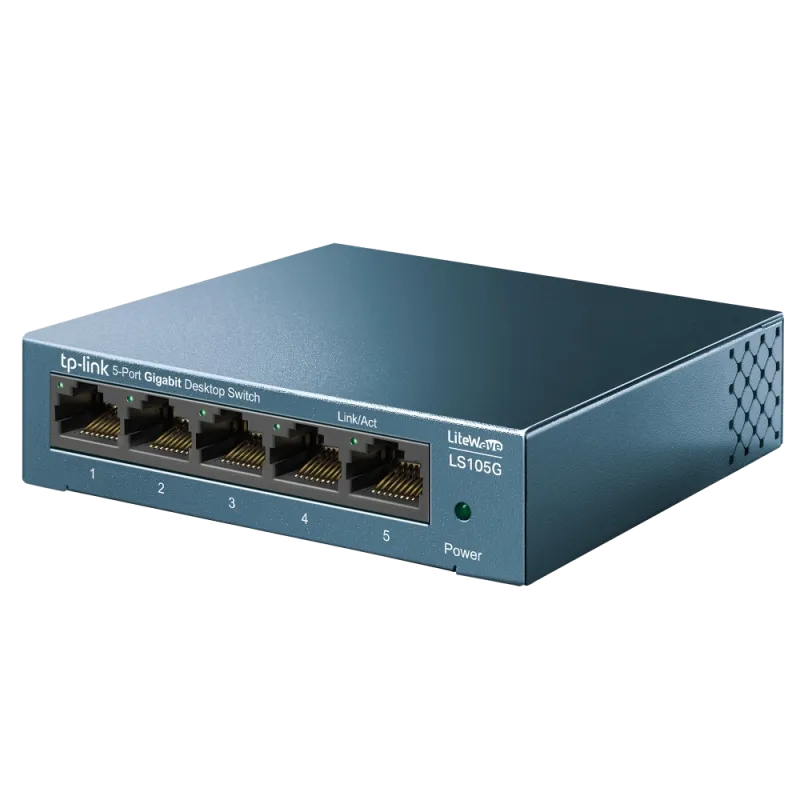

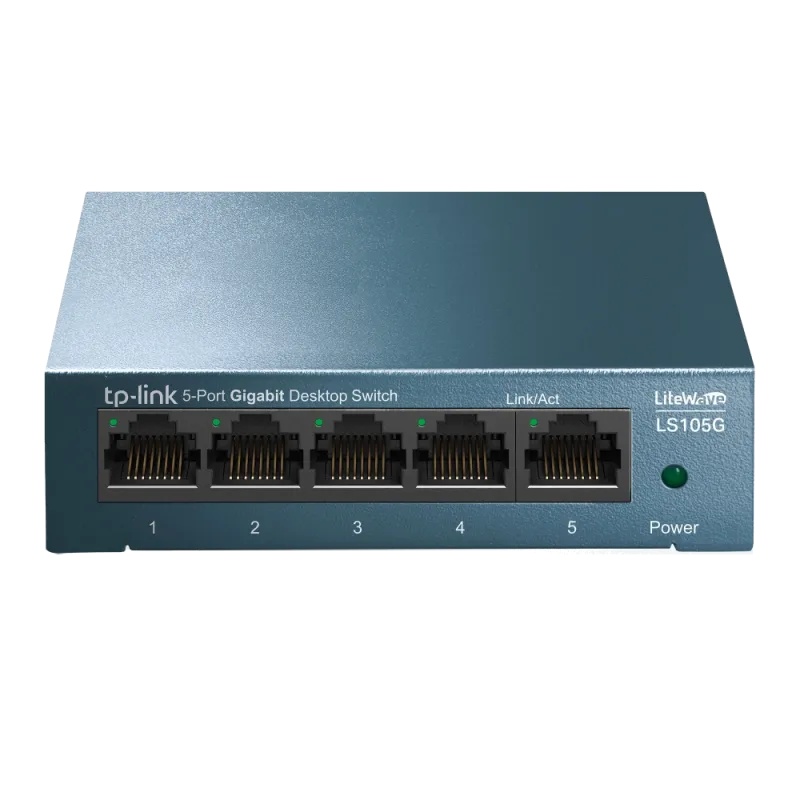

TP-Link LS105G switch 5 gigabit ports 10/100/1000Mbps Auto-Negotiation Auto-MDI/MDIX [ID 37286]
TP-Link LS105G switch 5 gigabit ports 10/100/1000Mbps Auto-Negotiation Auto-MDI/MDIX [ID 37286]
SKU:LS105G
Description
LS105G switch 5 gigabit ports Standards and Protocols: IEEE 802.3i/802.3u/ 802.3ab/802.3x, IEEE 802.1p, Interface: 5 * 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports, 7.4Mpps.
Available
| Quantity | Delivery |
| 14 | 2 days |
| 100 | 6 days |
Couldn't load pickup availability
Description
Specifications
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Data transmission | |
| MAC address table | 2000 |
| Switching capacity | 10 |
| Forwarding rate | 7.4 |
| Jumbo frames support | Y |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 |
| Design | |
| Rack mounting | N |
| Product colour | Blue |
| Housing material | Metal |
| LED indicators | Activity,LAN,Power |
| Wall mountable | Y |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source | DC |
| Power supply included | Y |
| Input current | 0.6 |
| Input voltage | 5 |
| Power consumption (max) | 2.776 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 9.466 |
| Weight & dimensions | |
| Width | 99.8 |
| Depth | 98 |
| Height | 25 |
| Packaging data | |
| Quick start guide | Y |
| Package width | 125 |
| Package depth | 128 |
| Package height | 92 |
| Package weight | 290 |
