TP-Link

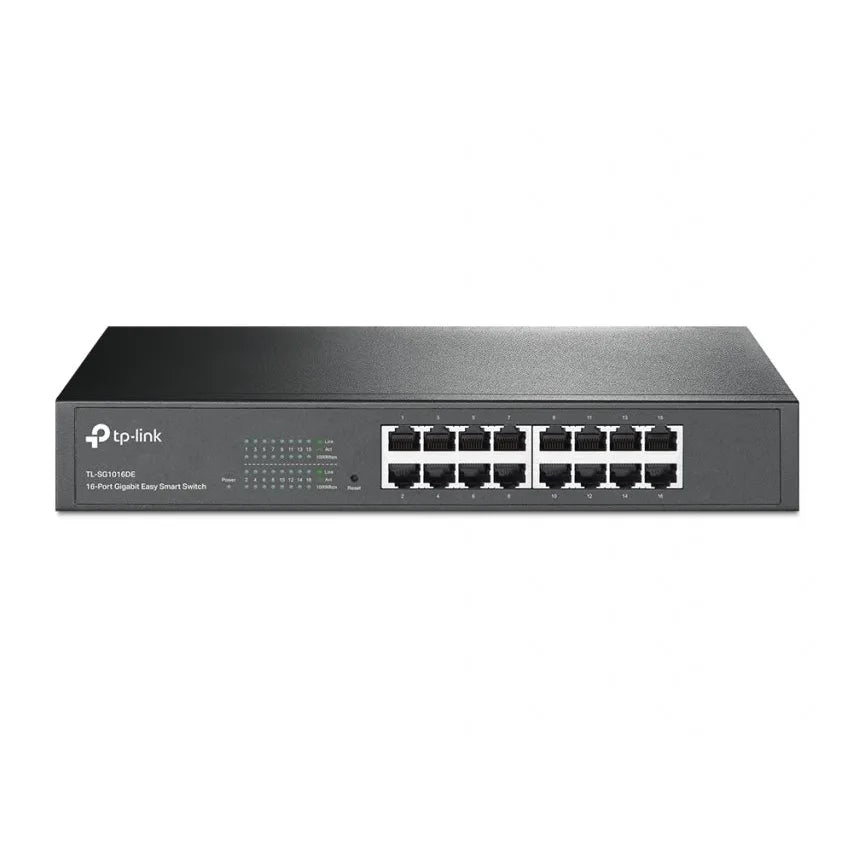

TP-Link Switch 16 Ports 10/100/1000 Gigabit [ID 17949]
TP-Link Switch 16 Ports 10/100/1000 Gigabit [ID 17949]
SKU:TL-SG1016DE
Description
Switch 16 Ports 10/100/1000 Gigabit, 1U 19-inch metal case,
Available
| Quantity | Delivery |
| 3 | 3 days |
| 9 | 6 days |
| 33 | 8 days |
Couldn't load pickup availability
Description
Specifications
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Port mirroring | Y |
| Full duplex | Y |
| Auto MDI/MDI-X | Y |
| Broadcast storm control | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Rate limiting | Y |
| VLAN support | Y |
| Number of VLANs | 32 |
| Data transmission | |
| MAC address table | 8000 |
| Switching capacity | 32 |
| Throughput | 23.8 |
| Store-and-forward | Y |
| Number of queues | 4 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.5 |
| Security | |
| IGMP snooping | Y |
| Design | |
| Rack mounting | Y |
| Product colour | Black |
| LED indicators | Y |
| Certification | FCC, CE, RoHS |
| Power | |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (max) | 11.73 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 294 |
| Depth | 180 |
| Height | 44 |
| Packaging data | |
| Cables included | AC |
| User guide | Y |
| Rack mount kit | Y |
