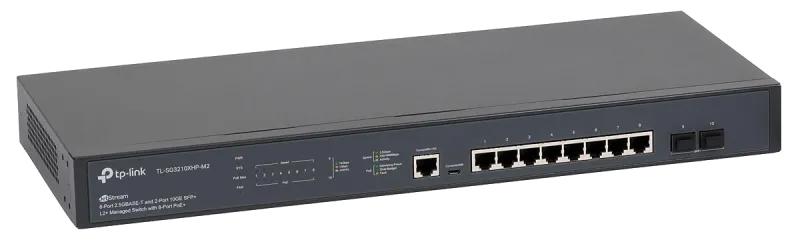

TP-Link Switch 8P-2.5G 2SFP L2 POE SG3210XHP-M2 JetStream™ 8-Port 2.5GBase-T and 2-Port [ID 40278]
TP-Link Switch 8P-2.5G 2SFP L2 POE SG3210XHP-M2 JetStream™ 8-Port 2.5GBase-T and 2-Port [ID 40278]
SKU:TL-SG3210XHP-M2
Description
Switch 8P-2.5G 2SFP L2 POE SG3210XHP-M2 JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
Available
| Quantity | Delivery |
| 2 | 6 days |
Couldn't load pickup availability
Description
Collapse
Specifications
Expand
| Management features | |
| Switch type | Managed |
| Switch layer | L2+ |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| Traffic classification | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| MIB support | RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| SFP+ module slots quantity | 2 |
| Console port | RJ-45/micro-USB |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.1s,IEEE 802.1w |
| 10G support | Y |
| Port mirroring | Y |
| IP routing | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Head-of-line (HOL) blocking | Y |
| Ethernet LAN data rates | 100,1000,2500 |
| VLAN support | Y |
| Virtual LAN features | MAC address-based VLAN,Port-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| MAC address table | 16000 |
| Switching capacity | 80 |
| Forwarding rate | 59.52 |
| Static route | Y |
| Number of static routes | 48 |
| Number of IP interfaces | 16 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 |
| Security | |
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| Security algorithms | HTTPS,SSH,SSH-2,SSL/TLS |
| MAC address filtering | Y |
| Static port security | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| IP-MAC-Port binding | Y |
| Authentication | MAC-based authentication,Port-based authentication |
| Password protection | Y |
| Authentication type | AAA,TACACS+ |
| Queue scheduling algorithms | SP,WRR+SP,Weighted Round Robin (WRR) |
| Multicast features | |
| Multicast support | Y |
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Y |
| Design | |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Y |
| Number of fans | 2 |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source | AC |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 292 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 240 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 996.35 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Packaging data | |
| Cables included | AC |
| Quick start guide | Y |
| Package type | Box |
| Package width | 528 |
| Package depth | 250 |
| Package height | 80 |
| Package weight | 2840 |
