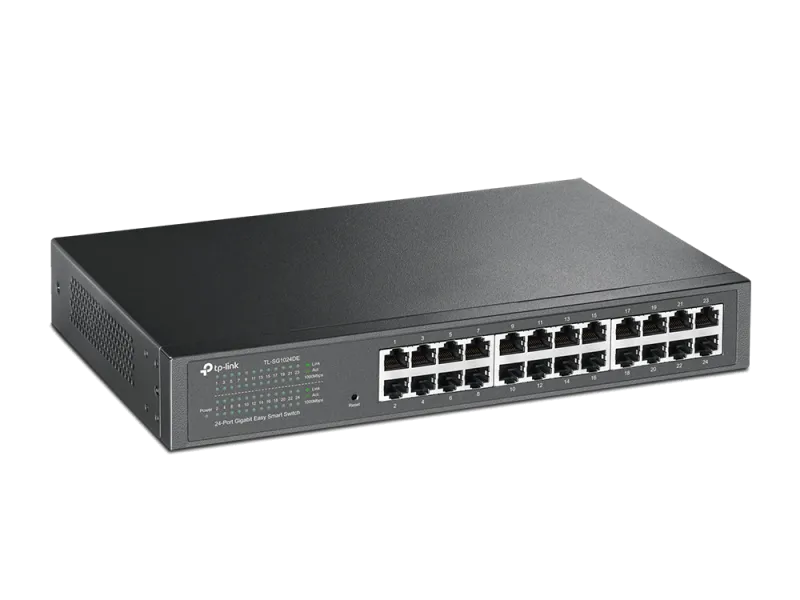

TP-Link TL-SG1024DE switch 24 Gigabit ports, 1U 19inch Rackmount Easy Smart 48Gbps [ID 36620]
TP-Link TL-SG1024DE switch 24 Gigabit ports, 1U 19inch Rackmount Easy Smart 48Gbps [ID 36620]
SKU:TL-SG1024DE
Description
TL-SG1024DE switch 24 ports General Interfaces: 10/100/1000Mbps Performance Switching Capacity 48Gbps Forwarding Rate: 35.7Mpps MAC Address Table 8K Packet Buffer Memory 512K L2 Features • IGMP Snooping - IGMP v1/v2/v3 Snooping - Supports 128 Groups • Link Aggregations - Supports static link aggregation - Up to 8 aggregation groups, containing 4 ports per group • Port Mirroring - One-to-One - Many-to-One • Cable Test • Loop Prevention VLAN • Supports up to 128 VLANs (out of 4K VLAN IDs) • MTU/Port/802.1Q tag VLAN Qos • Support Port-based/802.1p/DSCP priority • 4 priority queues • Rate Limit • Storm Control Management • Web-based Graphic User Interface (GUI) • Easy Smart Con¬ guration Utility - Central Management - Friendly user interface Ethernet Protocol • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX/FX • IEEE 802.3ab 1000BASE-T • IEEE 802.3x Flow Control • IEEE 802.1q VLANs/VLAN tagging • IEEE 802.1 p QoS
Available
| Quantity | Delivery |
| 23 | 2 days |
| 17 | 6 days |
Couldn't load pickup availability
Description
Specifications
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Port mirroring | Y |
| Full duplex | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Rate limiting | Y |
| Number of VLANs | 32 |
| Data transmission | |
| MAC address table | 8000 |
| Switching capacity | 48 |
| Throughput | 35.7 |
| Store-and-forward | Y |
| Number of queues | 4 |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 |
| Security | |
| IGMP snooping | Y |
| Design | |
| Rack mounting | Y |
| Product colour | Black |
| LED indicators | Y |
| Certification | FCC, CE, RoHS |
| Power | |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (typical) | 14.19 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 48.39 |
| Weight & dimensions | |
| Width | 294 |
| Depth | 180 |
| Height | 44 |
| Packaging data | |
| Cables included | AC |
| User guide | Y |
| Package type | Box |
| Rack mount kit | Y |
