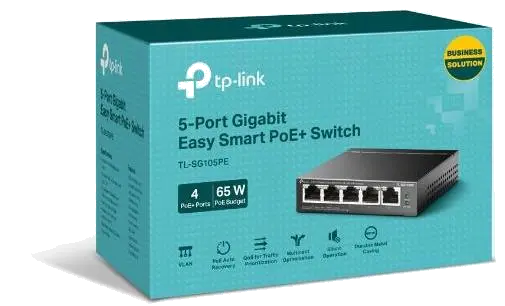

TP-Link TL-SG105PE smart switch 5 Gigabit POE ports 10Gbps POE ports 65W
MPN:TL-SG105PE
| Qty | Delivery |
|---|---|
| 91 | 2 days |
Description
Specifications
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Installed SFP modules quantity | 0 |
View all specifications (+52)
| Installed SFP+ modules quantity | 0 |
| Network | |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T,100BASE-FX,100BASE-TX,1000BASE-T |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Port mirroring | Y |
| Link aggregation | Y |
| Auto-negotiation | Y |
| Flow control support | Y |
| Auto MDI/MDI-X | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| VLAN support | Y |
| Virtual LAN features | Port-based VLAN,Tagged VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| MAC address table | 2000 |
| Switching capacity | 10 |
| Forwarding rate | 7.44 |
| Store-and-forward | Y |
| Number of queues | 4 |
| Jumbo frames support | Y |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 |
| Security | |
| IGMP snooping | Y |
| Loop protection | Y |
| Design | |
| Rack mounting | N |
| Product colour | Black |
| LED indicators | Activity,Link,PoE,Power,Speed,Status |
| Certification | FCC, CE, RoHS |
| Performance | |
| Fanless | Y |
| Power | |
| Power source | DC |
| Power supply included | Y |
| Input current | 1.31 |
| Input voltage | 53.5 |
| Power consumption (max) | 75.16 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 65 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 95 |
| Heat dissipation | 256.3 |
| Weight & dimensions | |
| Width | 99.8 |
| Depth | 98 |
| Height | 25 |
| Packaging data | |
| User guide | Y |
| Package width | 131 |
| Package depth | 196 |
| Package height | 121 |
| Package weight | 770 |
