TP-Link

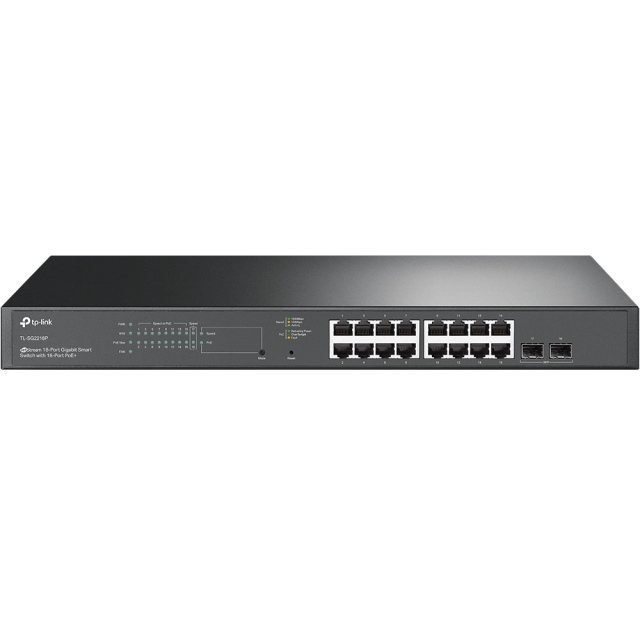

TP-Link TL-SG2218P switch 16 Gigabit ports 2 Gigabit SFP 16 POE ports [ID 35018]
TP-Link TL-SG2218P switch 16 Gigabit ports 2 Gigabit SFP 16 POE ports [ID 35018]
SKU:TL-SG2218P
Description
TL-SG2218P switch 16 Gigabit ports 2 Gigabit SFP 16 POE ports, POE Budget: 150W, Fanless, Switching Capacity: 36 Gbps, Packet Forwarding Rate: 26.78 Mpps, Rack Mountable.
Couldn't load pickup availability
Description
Specifications
| Management features | |
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| MIB support | MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9) |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | N |
| IP routing | Y |
| Policy-based routing | Y |
| Flow control support | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Auto-negotiation | Y |
| VLAN support | Y |
| Data transmission | |
| MAC address table | 8000 |
| Switching capacity | 26.78 |
| Forwarding rate | 26.78 |
| Jumbo frames support | Y |
| Jumbo frames | 9 |
| Packet buffer memory | 4.1 |
| Security | |
| DHCP features | DHCP client,DHCP relay,DHCP snooping |
| Access Control List (ACL) | Y |
| MAC address filtering | Y |
| Static port security | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | MAC-based authentication,Port-based authentication |
| Multicast features | |
| Multicast support | Y |
| Multicast features | Multicast forwarding |
| Design | |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Y |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source | DC/PoE |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 181.4 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Y |
| Total Power over Ethernet (PoE) budget | 150 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 619.06 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Packaging data | |
| Cables included | LAN (RJ-45) |
| User guide | Y |
| Package type | Box |
| Package width | 250 |
| Package depth | 528 |
| Package height | 80 |
| Package weight | 2760 |
