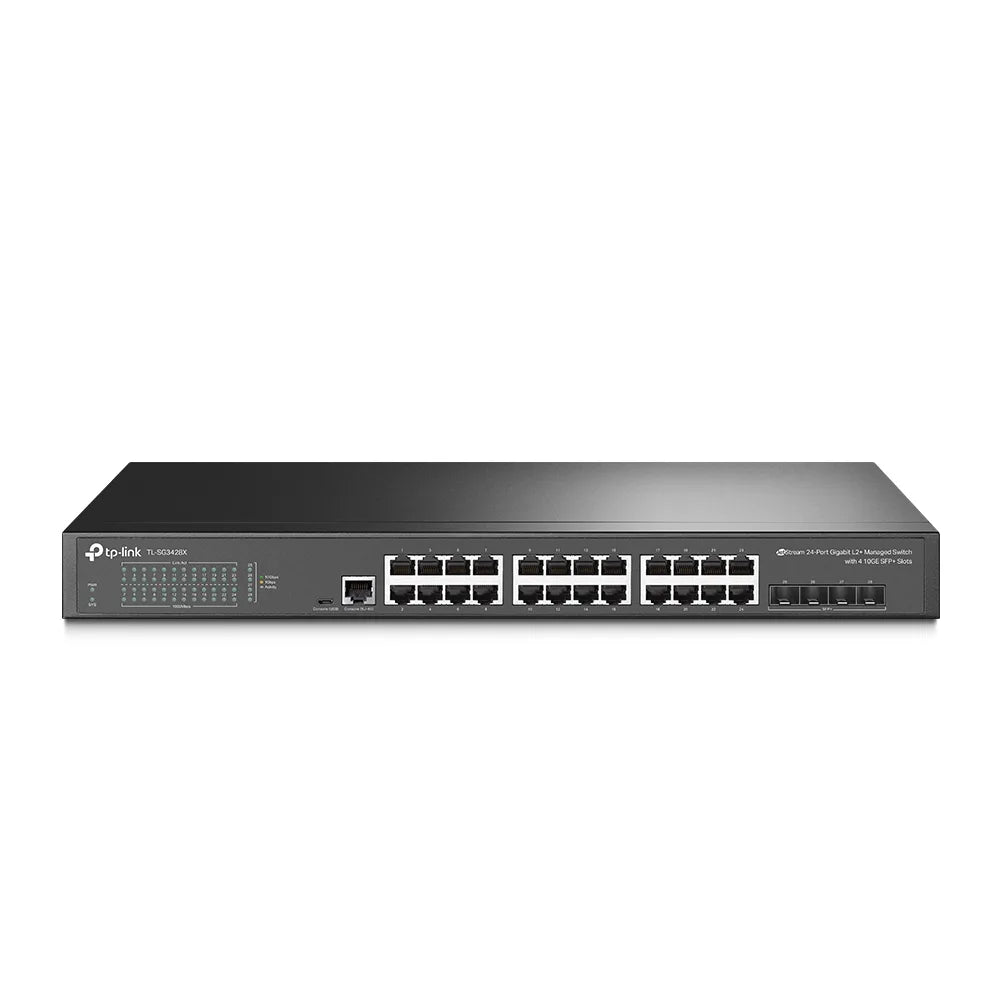

TP-Link TL-SG3428X Switch with L2 management, 24 Gigabit Ports, 4 x SFP+ Gigabit [ID 29289]
TP-Link TL-SG3428X Switch with L2 management, 24 Gigabit Ports, 4 x SFP+ Gigabit [ID 29289]
SKU:TL-SG3428X
Description
TL-SG3428X Switch with L2 management, 24 Gigabit Ports, 4 x SFP+ Gigabit
Available
| Quantity | Delivery |
| 31 | 2 days |
Couldn't load pickup availability
Description
Specifications
| Management features | |
| Switch type | Managed |
| Switch layer | L2+/L3 |
| Quality of Service (QoS) support | Y |
| Cloud-managed | Y |
| Web-based management | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| MIB support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/micro-USB |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.3ab,IEEE 802.3ae,IEEE 802.3i,IEEE 802.3u,IEEE 802.3z |
| 10G support | Y |
| Port mirroring | Y |
| Policy-based routing | Y |
| Spanning tree protocol | Y |
| Head-of-line (HOL) blocking | Y |
| Ethernet LAN data rates | 10,100,1000 |
| Active link detection | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| IPv4 routes | 48 |
| IPv6 routes | 48 |
| Flow control support | Y |
| VLAN support | Y |
| Virtual LAN features | Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Number of VLANs | 4000 |
| Data transmission | |
| MAC address table | 16000 |
| Switching capacity | 128 |
| Forwarding rate | 95.23 |
| Store-and-forward | Y |
| Static route | Y |
| Number of static routes | 48 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 |
| Security | |
| DHCP features | DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| IP-MAC-Port binding | Y |
| BPDU filtering/protection | Y |
| Authentication | Guest VLAN,MAC-based authentication,Port-based authentication |
| Authentication type | AAA,RADIUS,TACACS+ |
| Multicast features | |
| Multicast support | Y |
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Y |
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL),IPv6 Telnet,IPv6 ping,IPv6 tracert |
| Design | |
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Y |
| Performance | |
| Fanless | Y |
| Power | |
| Power source | AC |
| Power supply included | Y |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Power consumption (max) | 23.6 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 80.353 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Packaging data | |
| Cables included | LAN (RJ-45) |
| Quick start guide | Y |
| Package width | 528 |
| Package depth | 250 |
| Package height | 80 |
| Package weight | 2690 |
