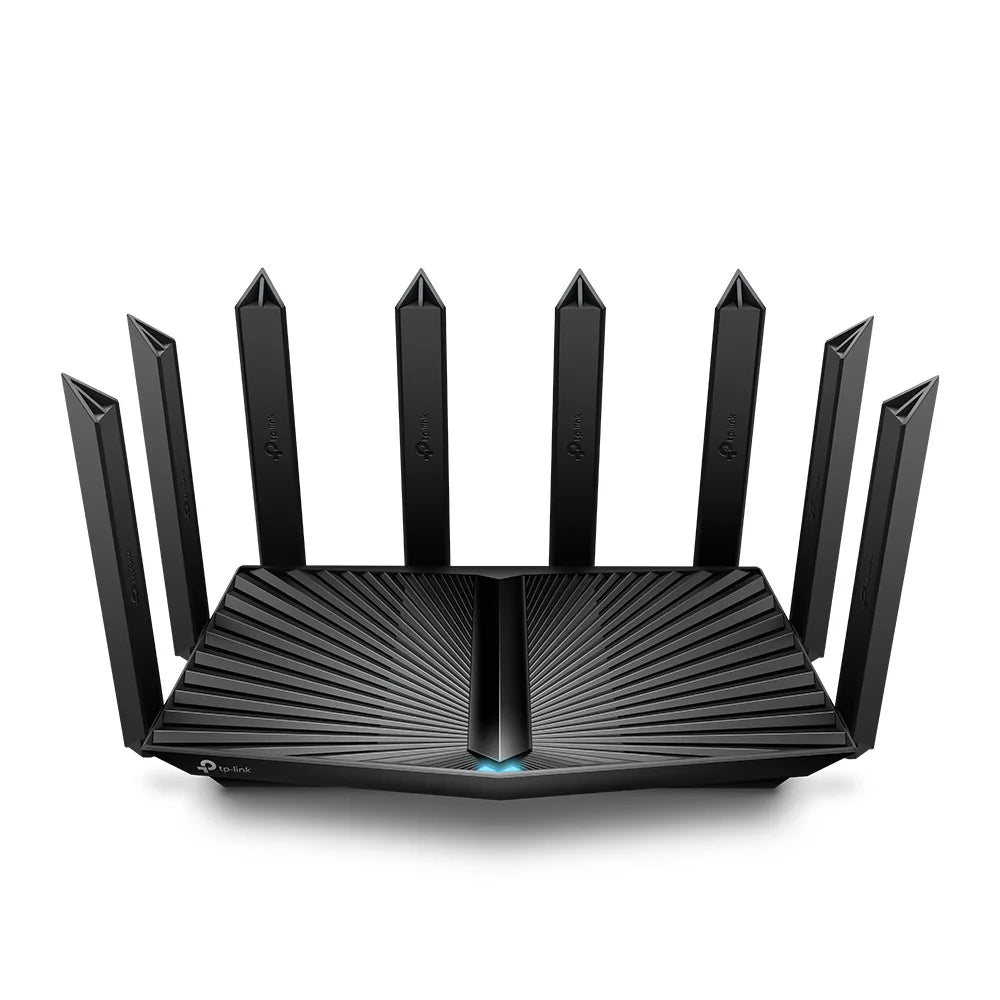

TP-Link TP-LINK WIFI 6 Router Gigabit, ARCHER AX90 [ID 30567]
TP-Link TP-LINK WIFI 6 Router Gigabit, ARCHER AX90 [ID 30567]
SKU:ARCHER AX90
Description
TP-LINK WIFI 6 Router Gigabit, ARCHER AX90, Tri-Band, Standards: IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz, wifi speed: AX6600, 5 GHz-1 : 4804 Mbps (802.11ax, HE160), 5 GHz-2: 1201 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax), 8 × High Performance Fixed Antennas, 4 × 4 MU-MIMO, Processor: 1.5 GHz Quad-Core CPU, interface: 1 Port 2.5 Gbps WAN/LAN, 1 Port 1 Gbps WAN/LAN Port, 3 Ports 1 Gbps LAN, 1 Port USB 3.0, 1 Port USB 2.0
Couldn't load pickup availability
Description
Specifications
| WAN connection | |
| Ethernet WAN | Y |
| DSL WAN | N |
| SIM card slot | N |
| 3G/4G USB modem compatibility | N |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4804 |
| Wi-Fi standards | Wi-Fi 4 (802.11n),802.11b,802.11a,802.11g,Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (first band) | 4804 |
| WLAN data transfer rate (second band) | 1201 |
| WLAN data transfer rate (third band) | 574 |
| Network | |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Multi-Gigabit Ethernet |
| Ethernet LAN data rates | 100,1000,2500 |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Port triggering | Y |
| Port forwarding | Y |
| Dynamic DNS (DDNS) | Y |
| Static route | Y |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 2 |
| Support Samba (storage) | Y |
| USB sharing | Y |
| Built-in FTP server | Y |
| Media server | Y |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Y |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Memory card slot(s) | N |
| DC-in jack | Y |
| Management features | |
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| Reset button | Y |
| WPS push button | Y |
| MU-MIMO technology | Y |
| Number of data streams | 4x4 |
| Security | |
| Security algorithms | WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA3 |
| Firewall | Y |
| Guest access | Y |
| DDoS protection | Y |
| DoS attack prevention | Y |
| Parental control | Y |
| DMZ support | Y |
| Network address translation (NAT) | Y |
| Protocols | |
| DHCP client | Y |
| DHCP server | Y |
| Universal Plug and Play (UPnP) | Y |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product type | Tabletop router |
| Product colour | Black |
| Wall mountable | Y |
| On/off switch | Y |
| Country of origin | Malaysia |
| Sustainability | |
| Sustainability certificates | CE,Federal Communications Commission (FCC),RoHS |
| Sustainability compliance | Y |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Y |
| Quick installation guide | Y |
| Packaging content | 1 x TP-Link Archer AX6600 Tri-Band Gigabit Wi-Fi 6 Router, Black |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 8 |
| Features | |
| Built-in processor | Y |
| Processor frequency | 1500 |
| Processor cores | 4 |
| Firmware upgradeable | Y |
| Power | |
| Power source type | DC |
| Output voltage | 12 |
| Output current | 3.3 |
| Operational conditions | |
| Storage relative humidity (H-H) | 5 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 311 |
| Depth | 207 |
| Height | 174 |
| Packaging data | |
| Package width | 124 |
| Package depth | 266 |
| Package height | 38 |
| Package weight | 580 |
