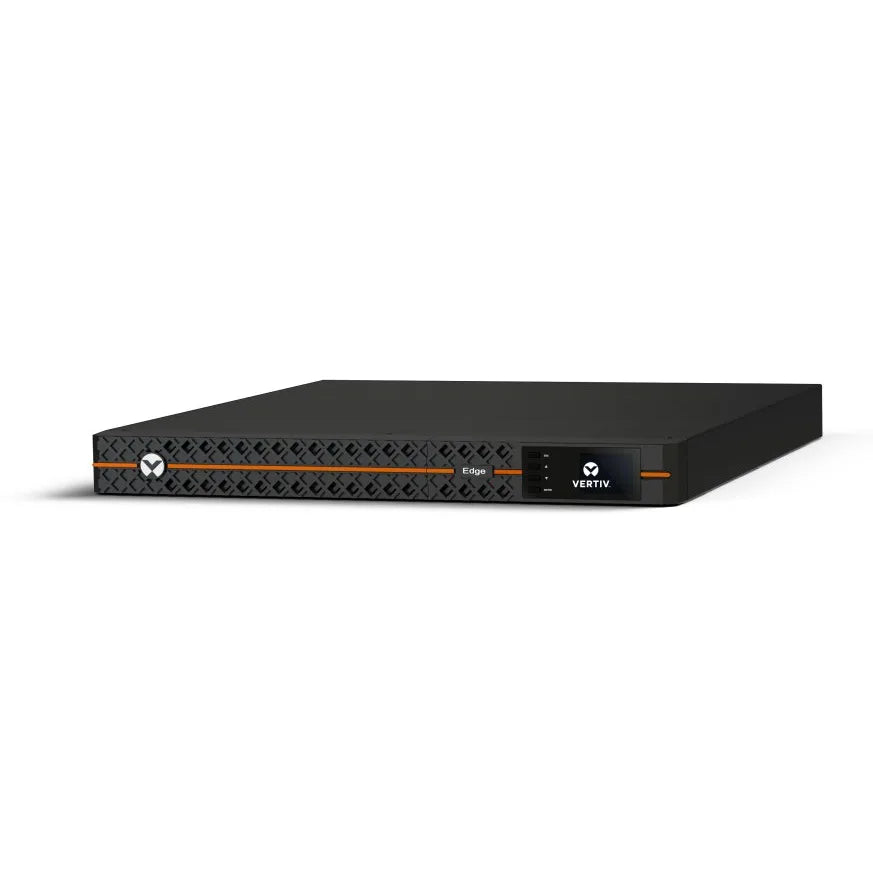

Vertiv EDGE UPS 1kVA 230V 1U Rack [ID 28806]
Vertiv EDGE UPS 1kVA 230V 1U Rack [ID 28806]
SKU:EDGE-1000IRM1U
Description
VERTIV EDGE UPS 1kVA 230V 1U Rack VERTIV EDGE UPS 1kVA 230V 1U Rack
Available
| Quantity | Delivery |
| 1 | 3 days |
Couldn't load pickup availability
Description
Specifications
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 |
| Output power | 900 |
| Waveform | Pure sine |
| Input operation voltage (min) | 166 |
| Input operation voltage (max) | 278 |
| Input frequency | 45/65 |
| Output operation voltage (min) | 200 |
| Output operation voltage (max) | 240 |
| Surge energy rating | 624 |
| Efficiency | 97 |
| Country of origin | China |
| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 3 |
| USB port | Y |
| Emergency Power Off (EPO) connector | Y |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 |
| Battery voltage | 6 |
| Typical backup time at full load | 5 |
| Typical backup time at half load | 15 |
| Battery life (max) | 5 |
| Battery recharge time | 3 |
| Design | |
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 1U |
| Cable length | 3 |
| Display type | LCD |
| Safety | IEC/EN62040-1 |
| Certification | CE, CB Report, EAC, RCM, UKCA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -25 - 55 |
| Operating relative humidity (H-H) | 20 - 90 |
| Operating altitude | 0 - 3000 |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 438 |
| Depth | 480 |
| Height | 43 |
| Weight | 16000 |
| Package width | 570 |
| Package depth | 700 |
| Package height | 200 |
| Package weight | 23000 |
