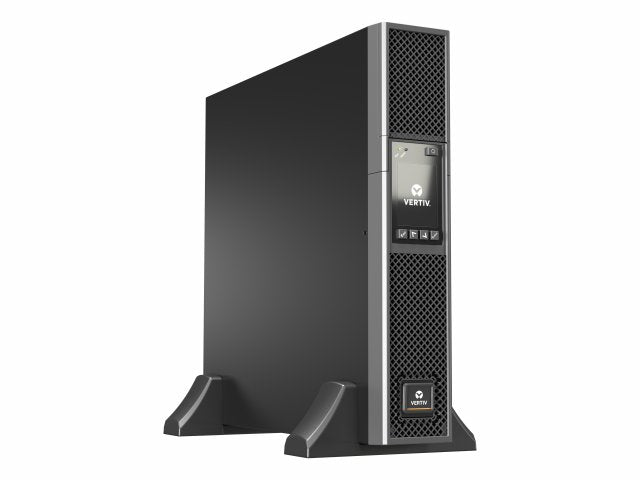

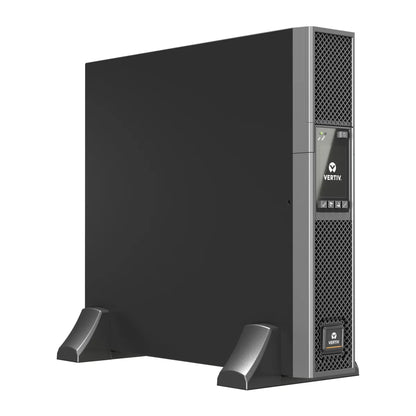

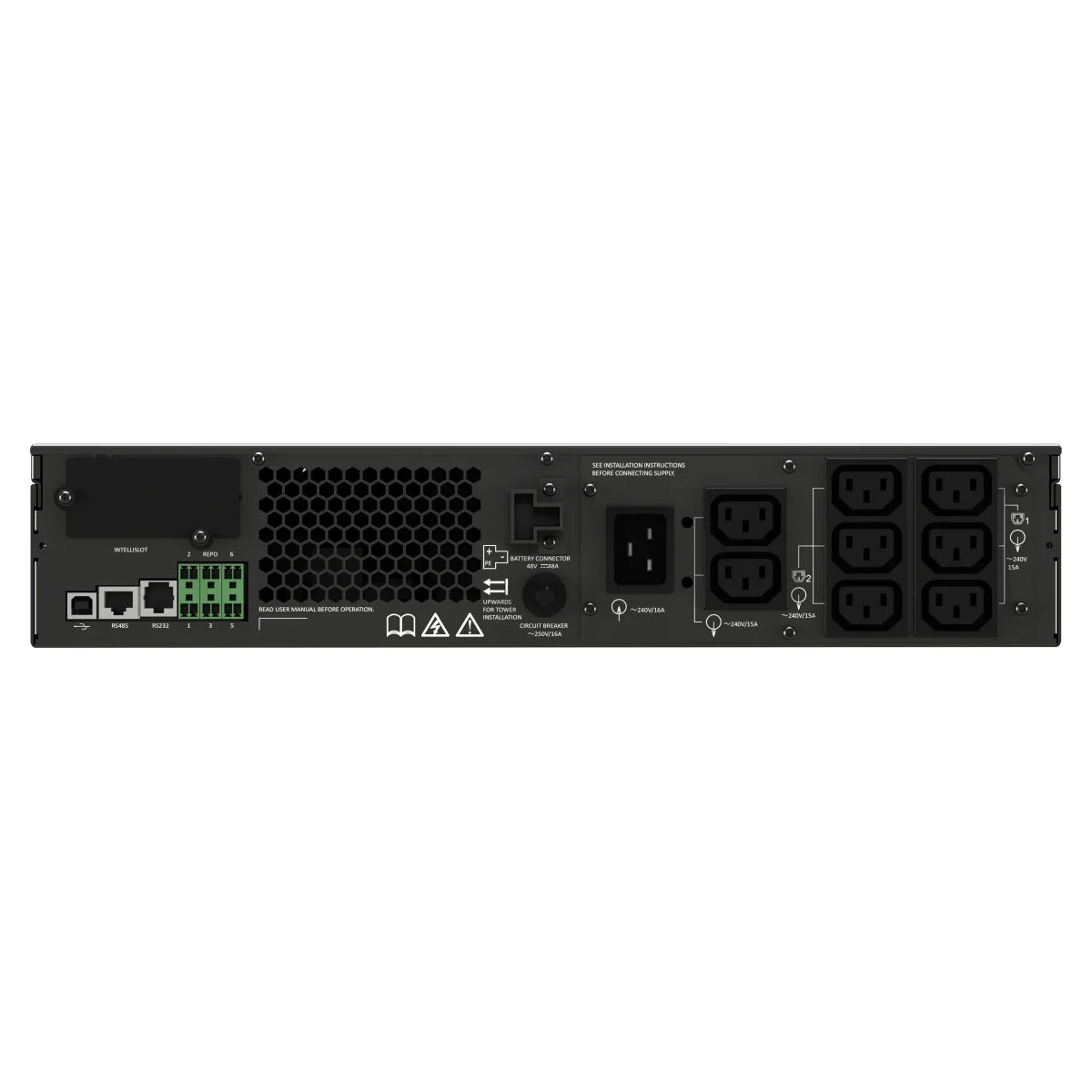

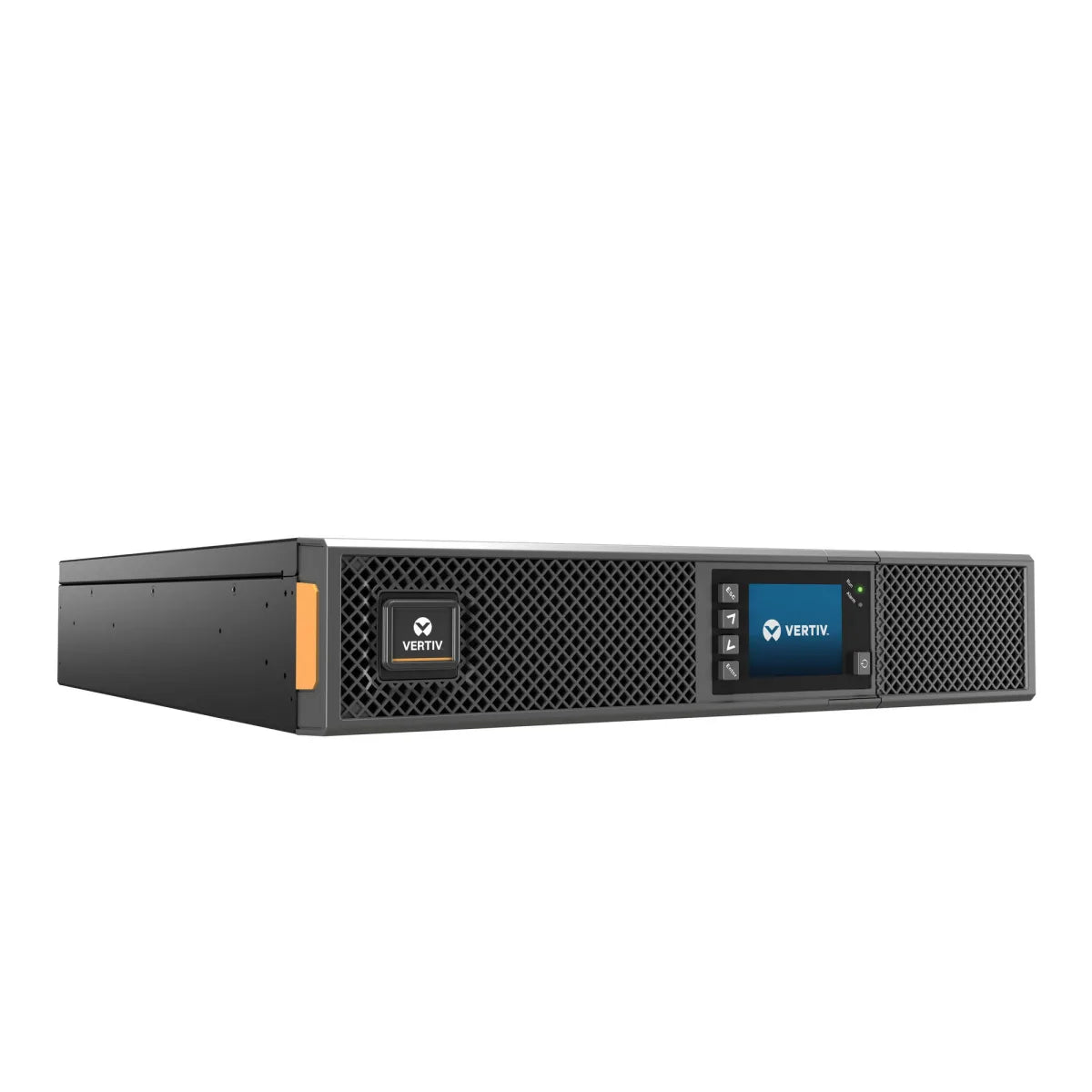

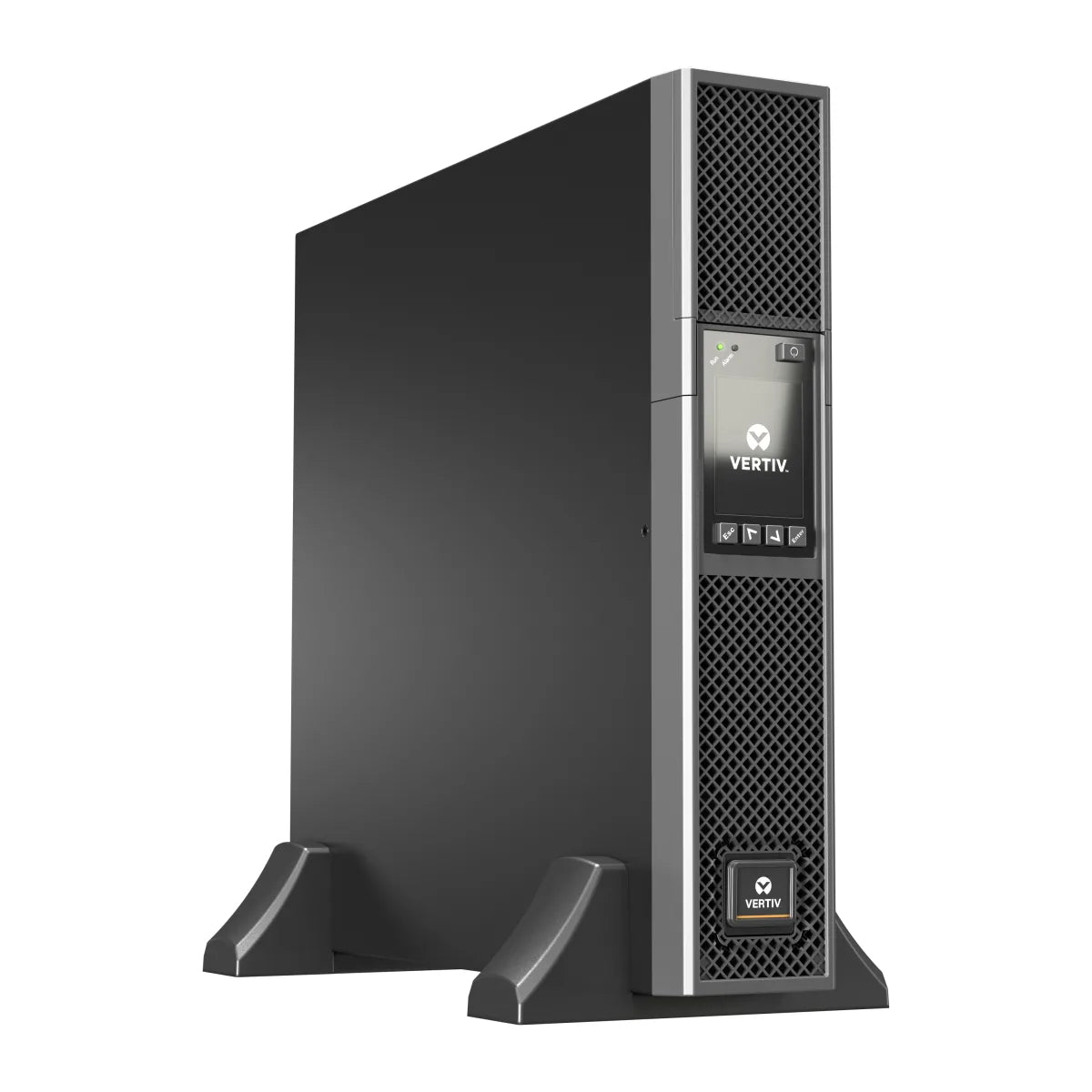

Vertiv Liebert GXT5 1ph UPS, 2kVA/2kW, online double conversion
MPN:GXT5-2000IRT2UXLE
Description
Specifications
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2 |
| Output power | 2000 |
| Waveform | Pure sine |
| Input operation voltage (min) | 115 |
| Input operation voltage (max) | 288 |
| Input frequency | 50/60 |
| Output operation voltage (max) | 240 |
View all specifications (+52)
| Output frequency | 50/60 |
| Output voltage regulation | 3 |
| Response time | 0 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 95 |
| Efficiency (On-line mode) | 95 |
| Efficiency (ECO mode) | 98 |
| Input power factor | 0.99 |
| Emergency Power Off (EPO) | Y |
| Noise level | 58 |
| Power protection features | Overload |
| Audible alarm(s) | Y |
| Ports & interfaces | |
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 8 |
| USB port | Y |
| Serial interface type | RS-232,RS-485 |
| Serial ports quantity | 1 |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 |
| Battery voltage | 12 |
| Typical backup time at full load | 3 |
| Typical backup time at half load | 9 |
| Battery recharge time | 4 |
| Hot-swap battery | Y |
| Design | |
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Safety | IEC62040-1:2008, GS; UL1778, c-UL |
| Certification | IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -15 - 40 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 430 |
| Depth | 630 |
| Height | 217 |
| Weight | 21000 |
| Package width | 517 |
| Package depth | 617 |
| Package height | 262 |
| Package weight | 25500 |
| Other features | |
| Battery type | VRLA |
| Output connections | IEC320 C13 |
| Input connection type | C14 |
| Nominal output voltage | 230 |
| Overload protection | Y |
| Nominal input voltage | 230 |
| Bypass | Yes |
