ViewSonic VB-WIFI-005 wireless module Wi-Fi 6 802.11 a/b/g/n/ac/ax dual band 5Ghz/2.4Ghz [ID 30456]
ViewSonic VB-WIFI-005 wireless module Wi-Fi 6 802.11 a/b/g/n/ac/ax dual band 5Ghz/2.4Ghz [ID 30456]
SKU:VB-WIFI-005
Description

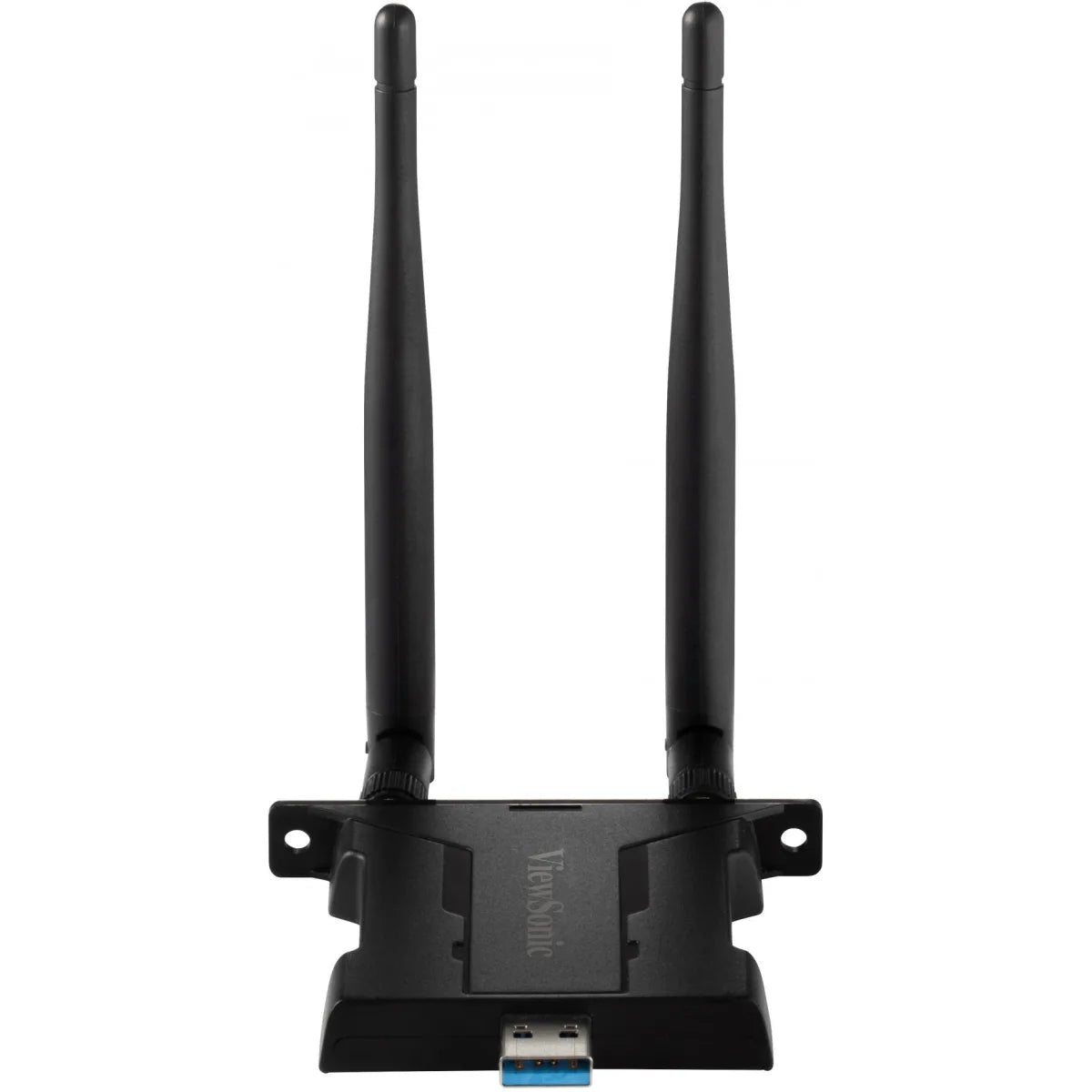

VB-WIFI-005 Wi-Fi 6 802.11 a/b/g/n/ac/ax dual band 5Ghz/2.4Ghz wireless module for ViewBoard interactive displays
Couldn't load pickup availability
Description
Specifications
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN / Bluetooth |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Network | |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Wi-Fi | Y |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Bluetooth | Y |
| Bluetooth version | 5.2 |
| Design | |
| Internal | N |
| Component for | PC |
| Product colour | Black |
| Antenna | Y |
| Antenna design | Internal |
| Antenna type | 2x2 |
| Plug and Play | Y |
| Certification | FCC, FCC ID, IC, IC ID, NCC |
| Power | |
| Output voltage | 5 |
| Power consumption (typical) | 4.5 |
| USB powered | Y |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Sustainability | |
| Sustainability certificates | CE,REACH,RoHS,WEEE |
| Weight & dimensions | |
| Width | 99 |
| Depth | 11 |
| Height | 77 |
| Weight | 30 |
| Packaging data | |
| Package width | 90 |
| Package depth | 16 |
| Package height | 157 |
| Package weight | 80 |
